[Lifetime Warranty] B2015-S85 B2017-S85 4040 24V Humidifier Solenoid Valve

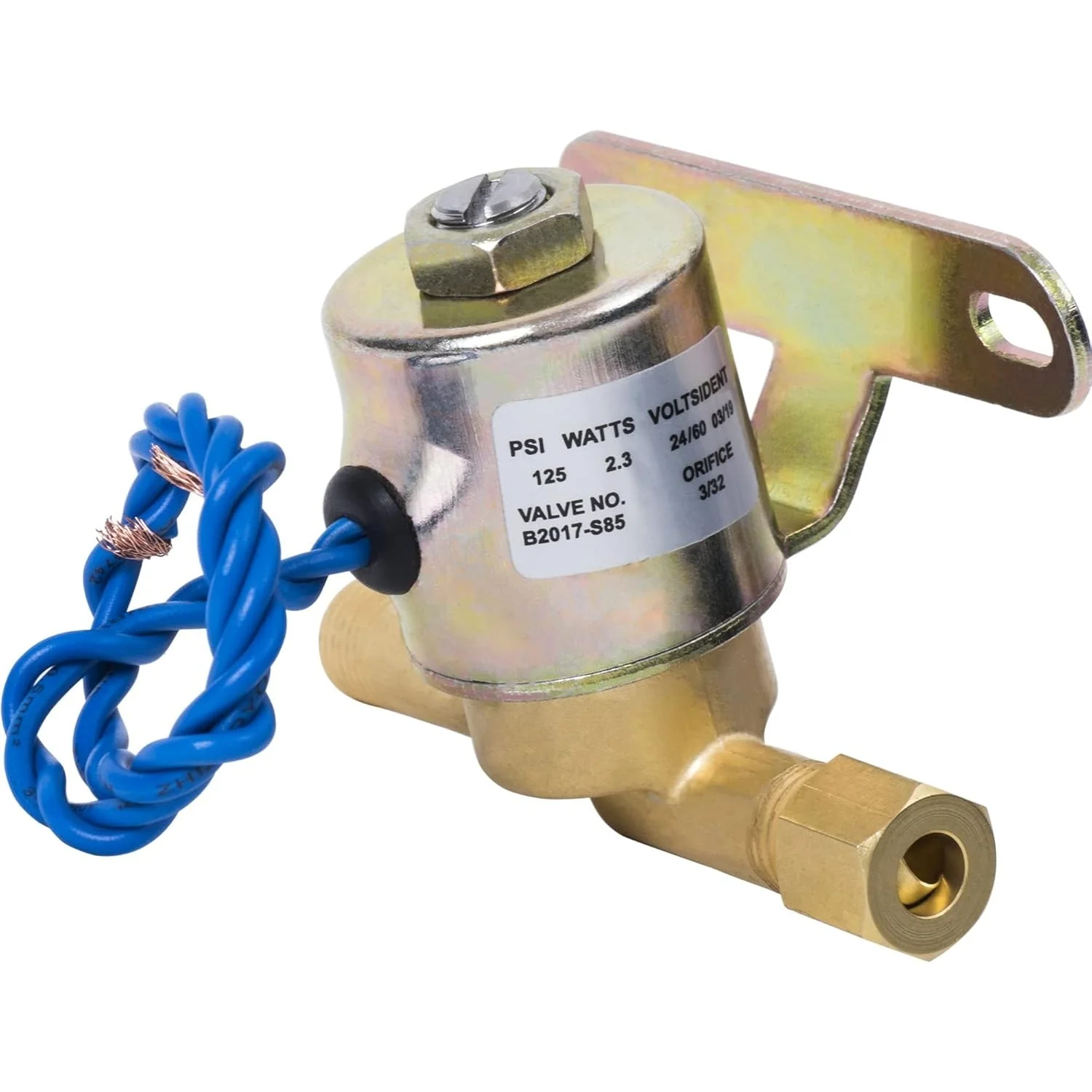

B2015-S85 B2017-S85 4040 24V Humidifier Solenoid Valve
Key Features

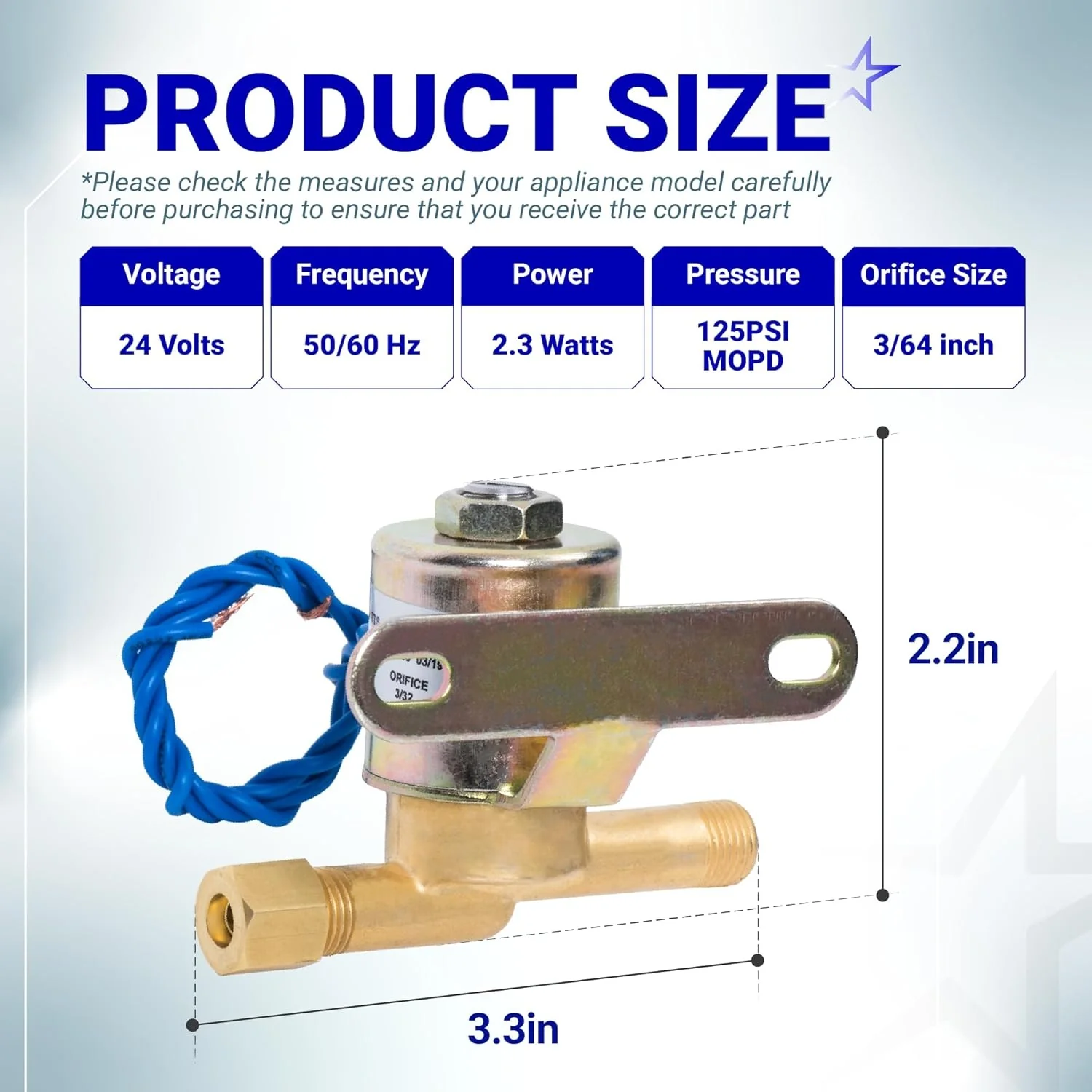

- Electrical Rating: 24 Volts, 2.3 Watts, 60 Hz
- Construction: Durable brass body
- Inlet: Threaded with an integrated strainer screen to filter debris
- Function: Controls water flow to the humidifier distribution tray

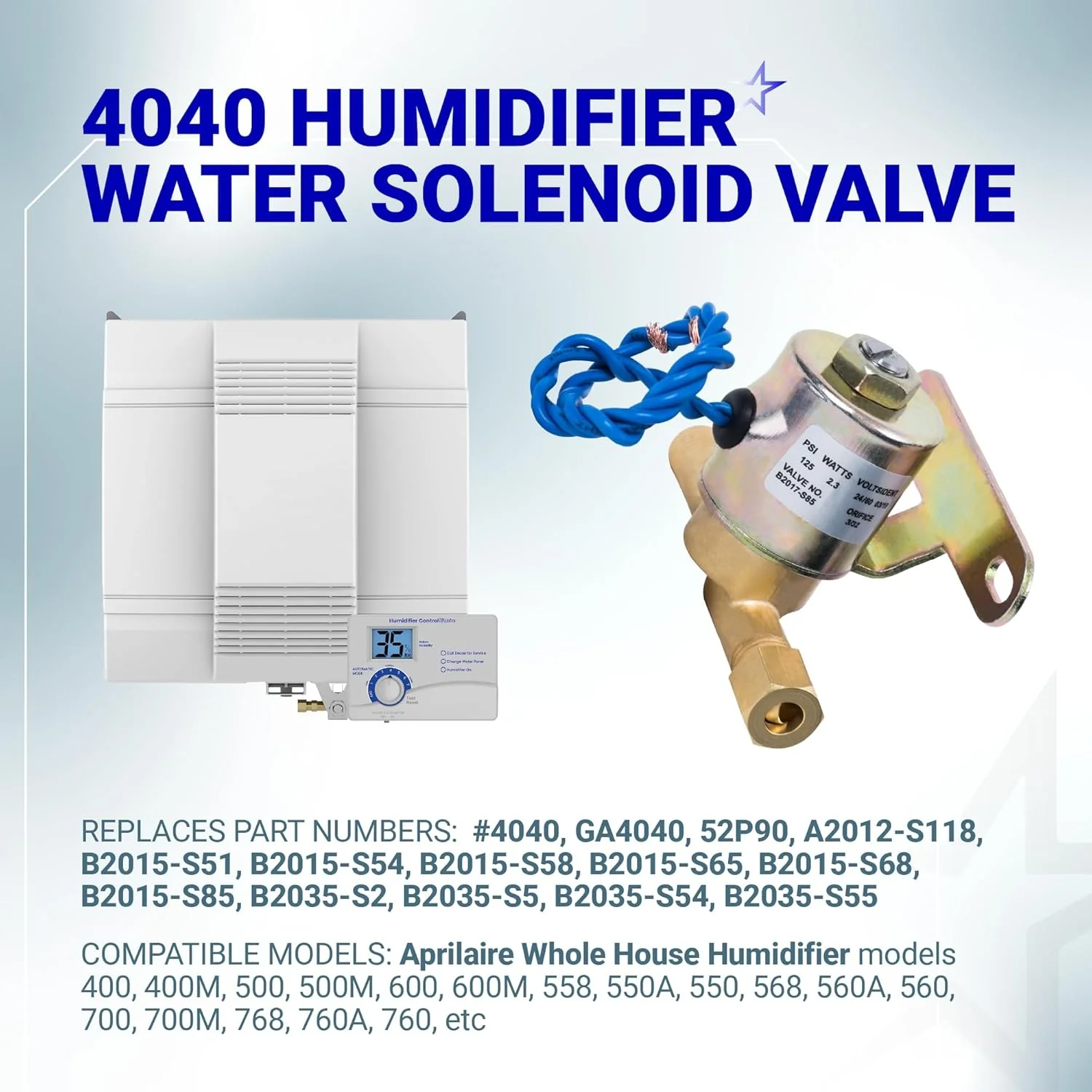

Replaces / Cross-Reference Part Numbers
- 4040
- B2015-S85
- B2017-S85
- 4040-001
Compatibility & Fitment
- Fits Aprilaire humidifier models including the 200, 400, 500, 600, and 700 series.
- Specific compatible models include: 220, 224, 400A, 400M, 440, 500, 500A, 500M, 550, 550A, 558, 560, 560A, 600, 600A, 600M, 700, 700A, 700M, 760, 760A, 768
When to Replace
- Humidifier fails to produce humidity due to lack of water flow.
- Water continuously runs or leaks from the valve when closed.
- Valve produces a loud buzzing or humming sound but does not open.
- Visible cracks, corrosion, or damage to the valve body or electrical connections.
Installation Tips
- Disconnect power to the furnace and shut off the water supply before starting.
- Note the orientation of the old valve and install the new one in the same direction of water flow.
- Use pipe thread sealant on male threads for a leak-free connection. Do not overtighten.
- After installation, turn the water supply back on and check for leaks before restoring power.
$32.96
[Lifetime Warranty] B2015-S85 B2017-S85 4040 24V Humidifier Solenoid Valve—
$32.96
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
B2015-S85 B2017-S85 4040 24V Humidifier Solenoid Valve
Key Features
- Electrical Rating: 24 Volts, 2.3 Watts, 60 Hz
- Construction: Durable brass body
- Inlet: Threaded with an integrated strainer screen to filter debris
- Function: Controls water flow to the humidifier distribution tray
Replaces / Cross-Reference Part Numbers
- 4040
- B2015-S85
- B2017-S85
- 4040-001
Compatibility & Fitment
- Fits Aprilaire humidifier models including the 200, 400, 500, 600, and 700 series.
- Specific compatible models include: 220, 224, 400A, 400M, 440, 500, 500A, 500M, 550, 550A, 558, 560, 560A, 600, 600A, 600M, 700, 700A, 700M, 760, 760A, 768
When to Replace
- Humidifier fails to produce humidity due to lack of water flow.
- Water continuously runs or leaks from the valve when closed.
- Valve produces a loud buzzing or humming sound but does not open.
- Visible cracks, corrosion, or damage to the valve body or electrical connections.
Installation Tips
- Disconnect power to the furnace and shut off the water supply before starting.
- Note the orientation of the old valve and install the new one in the same direction of water flow.
- Use pipe thread sealant on male threads for a leak-free connection. Do not overtighten.
- After installation, turn the water supply back on and check for leaks before restoring power.
