[Lifetime Warranty] 6501KW2002A Washer Rotor Position Sensor Assembly for LG Hall Sensor - Replaces 6501KW2002B PS3529186 4962510 AP4440680 - Compatible with LG Kenmore Washers WM2016CW WM3170CW WM3370HWA

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

[Lifetime Warranty] 6501KW2002A Washer Rotor Position Sensor Assembly for LG Hall Sensor - Replaces 6501KW2002B PS3529186 4962510 AP4440680 - Compatible with LG Kenmore Washers WM2016CW WM3170CW WM3370HWA

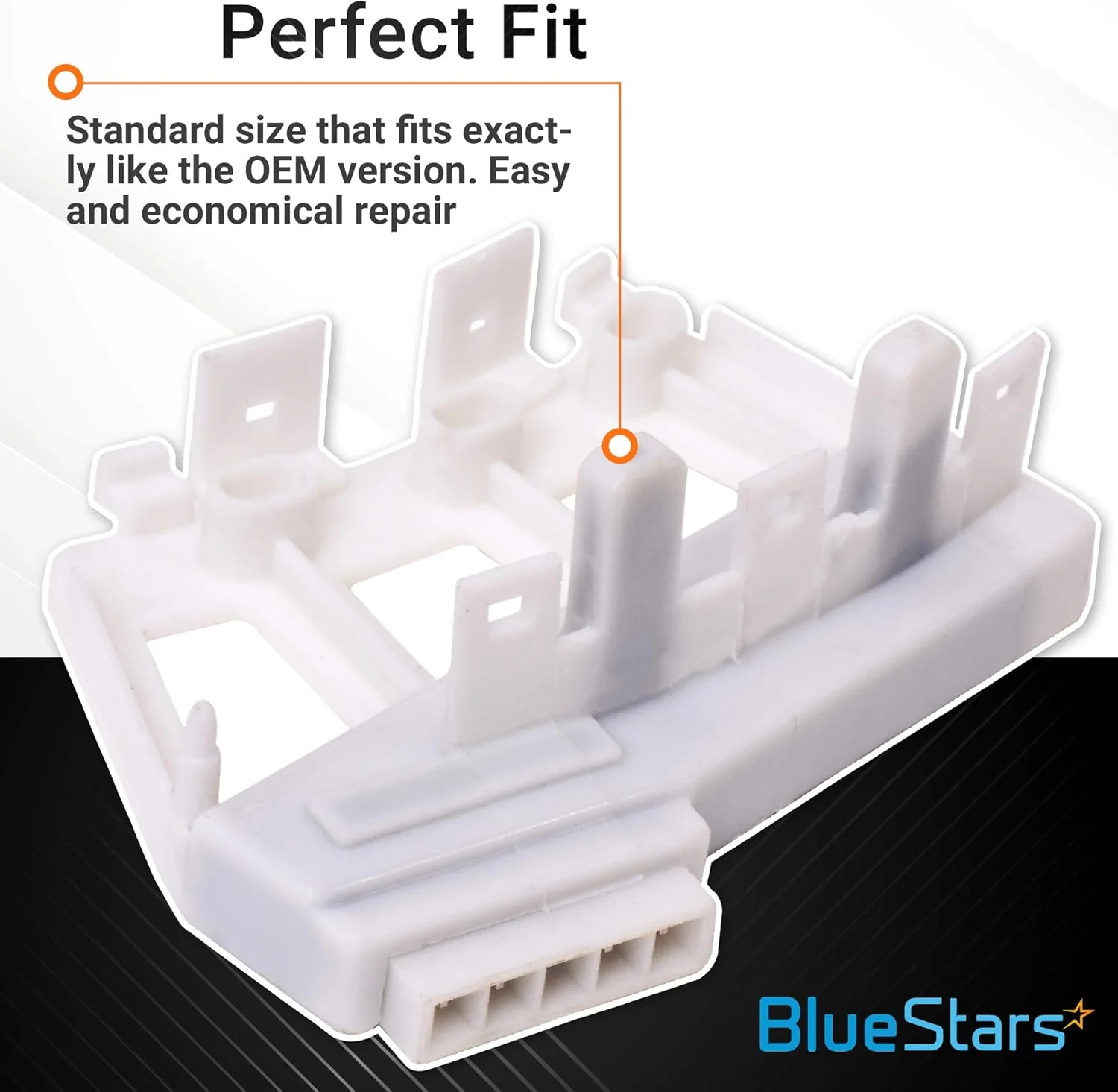

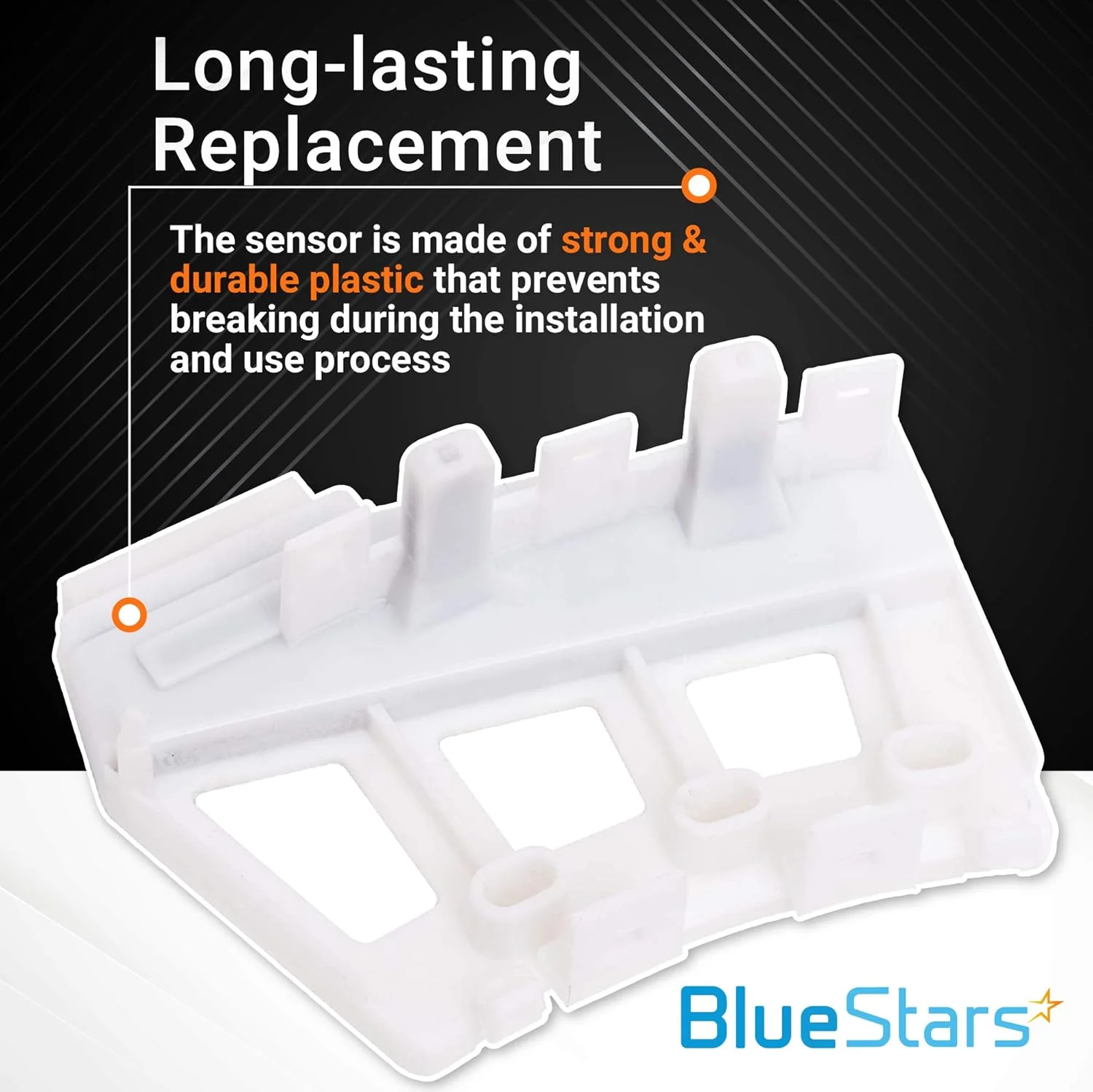

6501KW2002A Washer Rotor Position Sensor

Key Features

  • Monitors the direction and speed of the motor's rotor
  • Communicates rotor position data to the main electronic control board
  • Enables the appliance to sense load size and adjust operation
  • Also known as an RPS or hall sensor

Replaces / Cross-Reference Part Numbers

  • AP4440680
  • PS3529186
  • 6501KW2002B
  • 1268238
  • AH3529186
  • EA3529186
  • EAP3529186
  • 4962510
  • AP7015078
  • PS16556422

Compatibility & Fitment

  • Fits select LG and Kenmore washing machine models
  • Compatible with certain top-load and front-load configurations

When to Replace

  • Washer displays an LE error code
  • The drum will not spin or agitate
  • The drum moves slightly then stops
  • Washer operates erratically or makes unusual noises during the spin cycle

Installation Tips

  • Disconnect the appliance from power and water sources before beginning installation
  • The sensor is located on the motor stator assembly, typically accessed from the rear of the machine
  • Requires removal of the washer's rear panel, rotor bolt, rotor, and stator to access the sensor
  • Ensure the new sensor is securely clipped into place on the stator before reassembly
$7.14

Original: $20.40

-65%
[Lifetime Warranty] 6501KW2002A Washer Rotor Position Sensor Assembly for LG Hall Sensor - Replaces 6501KW2002B PS3529186 4962510 AP4440680 - Compatible with LG Kenmore Washers WM2016CW WM3170CW WM3370HWA—

$20.40

$7.14

Product Information

Shipping & Returns

Description

6501KW2002A Washer Rotor Position Sensor

Key Features

  • Monitors the direction and speed of the motor's rotor
  • Communicates rotor position data to the main electronic control board
  • Enables the appliance to sense load size and adjust operation
  • Also known as an RPS or hall sensor

Replaces / Cross-Reference Part Numbers

  • AP4440680
  • PS3529186
  • 6501KW2002B
  • 1268238
  • AH3529186
  • EA3529186
  • EAP3529186
  • 4962510
  • AP7015078
  • PS16556422

Compatibility & Fitment

  • Fits select LG and Kenmore washing machine models
  • Compatible with certain top-load and front-load configurations

When to Replace

  • Washer displays an LE error code
  • The drum will not spin or agitate
  • The drum moves slightly then stops
  • Washer operates erratically or makes unusual noises during the spin cycle

Installation Tips

  • Disconnect the appliance from power and water sources before beginning installation
  • The sensor is located on the motor stator assembly, typically accessed from the rear of the machine
  • Requires removal of the washer's rear panel, rotor bolt, rotor, and stator to access the sensor
  • Ensure the new sensor is securely clipped into place on the stator before reassembly
