[Lifetime Warranty] DD94-01002A Dishwasher Mounting Bracket Assembly Kit - Compatible with Samsung Dishwashers - Replaces 2077601 AP4450818 PS4222710 PD00007402 - Includes 2 x Brackets, 6 x Screws

DD94-01002A Dishwasher Mounting Bracket Assembly Kit

Key Features

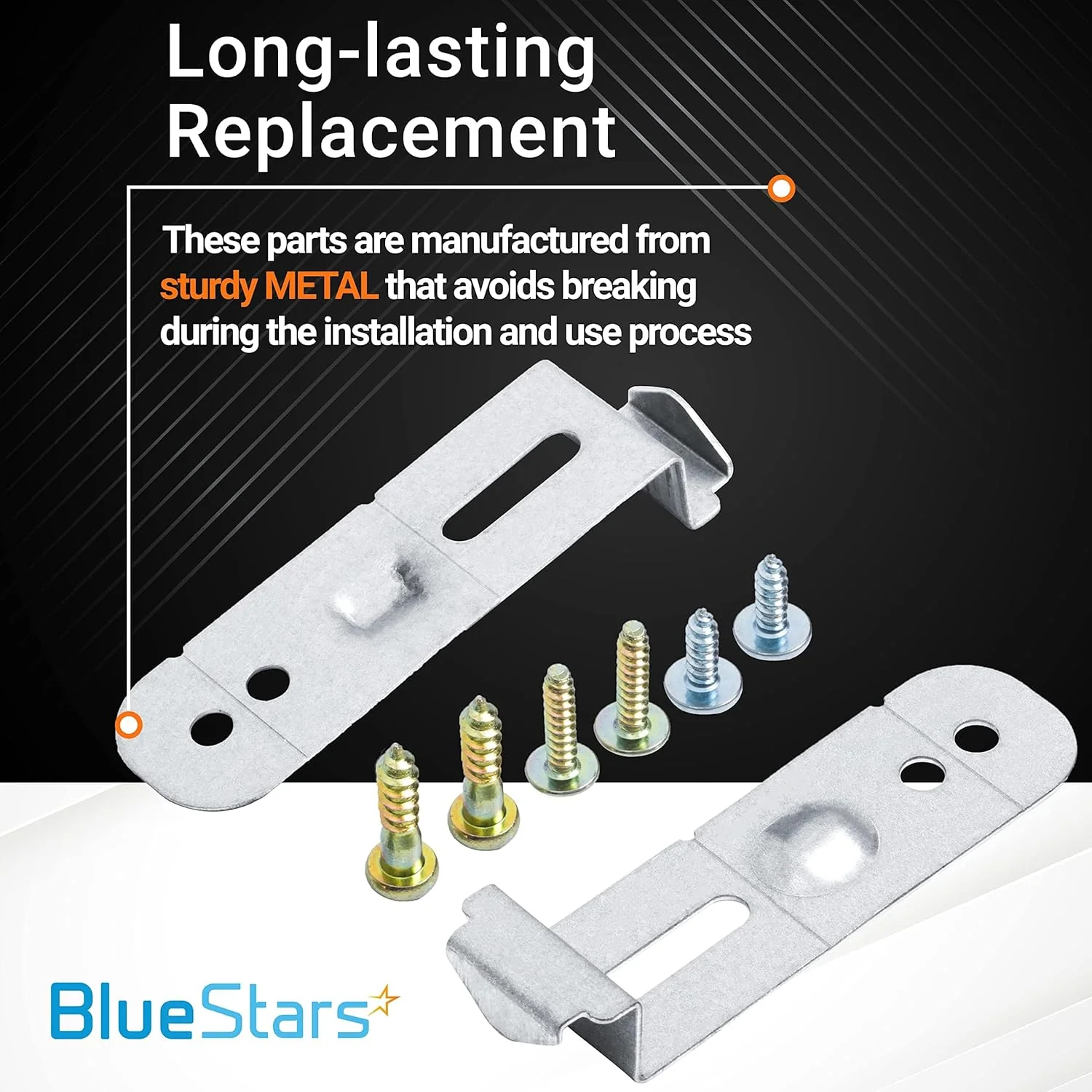

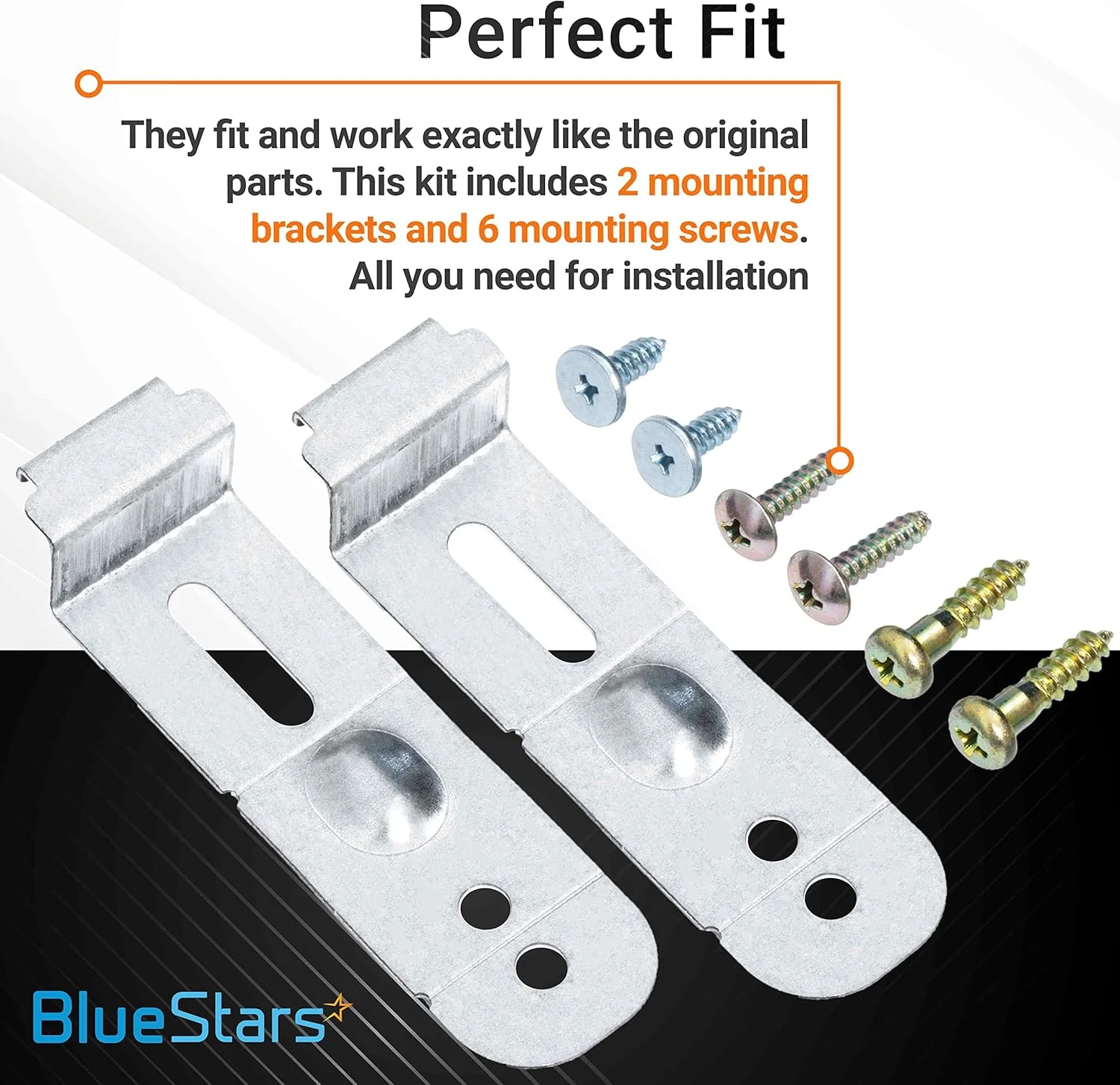

• Complete Installation Kit: Includes two heavy-duty metal mounting brackets and six specialized screws, providing everything needed to secure the unit to the cabinetry or countertop.
• Countertop & Cabinet Versatility: Designed for standard top-mounting to the underside of wooden countertops or side-mounting to cabinets when stone or granite surfaces are present.
• Reinforced Structural Support: Prevents the dishwasher from shifting, vibrating, or tipping forward when the door is opened and the racks are fully extended.
• Corrosion-Resistant Finish: The brackets are treated with a protective coating to withstand the high-humidity environment typically found around kitchen appliances.

Replaces / Cross-Reference Part Numbers

• DD94-01002A
• 2077601
• AP4450818
• PS4222710
• PD00007402
• EAP4222710

Compatibility & Fitment

This mounting kit is a standard replacement part for a wide range of Samsung built-in dishwashers. Key compatible series include:

• DW80 Series: DW80K5050US, DW80K7050US, DW80J3020US, DW80M9960US, DW80F600UTW.
• DW79 Series: DW7933LRASR, DW7933LRAWW.
• DMT Series: DMT400RHS, DMT800RHS, DMT300RFB.
• Other Models: Fits select DW60 and DW50 models utilizing the DD94 series bracket configuration.

When to Use This Kit

• New Installation: Essential for a secure fit during the initial setup of your dishwasher.
• Broken or Bent Brackets: The existing brackets have snapped or become deformed, causing the dishwasher to sit unevenly or wobble.
• Tipping Issues: The dishwasher tilts forward when the bottom rack is loaded with heavy plates and pulled out.
• Cabinet Noise: Excessive vibration and rattling against the surrounding cabinets due to loose or missing mounting hardware.

Installation Tips

• Safety First: Ensure the dishwasher is disconnected from power and water if you need to pull the unit out to access the mounting slots.
• Slot Alignment: Slide the brackets into the designated slots on the top or sides of the dishwasher frame before pushing the unit into the cabinet opening.
• Bending Tabs: Once inserted into the frame, you may need to bend the small metal tabs with pliers to lock the brackets into the dishwasher housing.
• Screw Selection: Use the shorter screws to attach the brackets to the dishwasher frame and the longer screws to anchor the brackets into the wooden cabinet or countertop.
• Leveling: Always adjust the dishwasher's leveling legs before securing the brackets to ensure the door closes and seals perfectly.
