[Lifetime Warranty] Propane Refill Adapter for 1 LB. Tanks - Solid Brass Propane Adapter 20lb to 1lb Converter with Gauge Valve - Propane Refill Elbow Adapter for BBQ Grill Stove Camping RV

Propane Refill Elbow Adapter  for 1 LB. Tanks with Gauge & Valve

Key Features

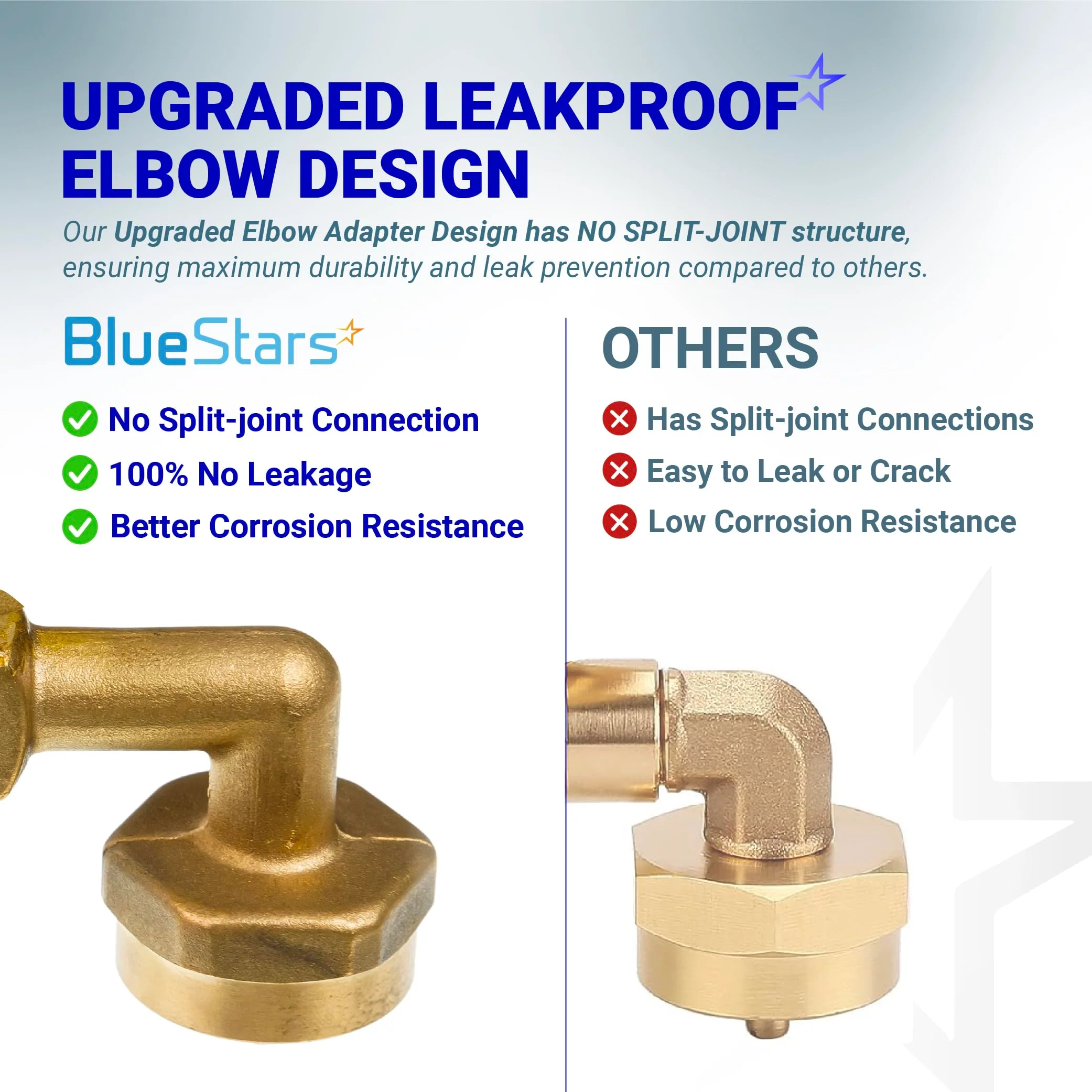

• 90-Degree Elbow Design: The specialized right-angle shape allows the 1lb cylinder to remain in a stable, upright position during the refill process, making it easier to manage and reducing strain on the connection.
• Integrated Pressure Gauge: Features a color-coded dial that provides a real-time reading of the pressure in the supply tank, helping you monitor the transfer progress and detect potential leaks.
• Built-in Control Valve: Equipped with a dedicated brass shut-off lever, allowing you to start and stop the flow of propane instantly without having to reach for the main tank valve.
• Solid Brass Construction: Manufactured from 100% heavy-duty brass for maximum durability, corrosion resistance, and spark-free operation in outdoor environments.
• High-Pressure Safety Seal: Engineered with precision-machined threads and internal gaskets to ensure an airtight connection between high-pressure bulk tanks and disposable cylinders.

Replaces / Cross-Reference Part Numbers

• Universal 20lb to 1lb Refill Adapter
• 90-Degree Propane Refill Elbow
• Propane Adapter with Gauge and Valve
• CGA600 to QCC1 Refill Converter

Compatibility & Fitment

This adapter is designed for outdoor use and is compatible with standard North American propane equipment:

• Supply Tanks: Fits all standard 5lb to 40lb propane tanks (BBQ grill and RV cylinders) using the QCC1 / Type 1 connection.
• Disposable Cylinders: Fits all standard 1lb / 16.4oz "camping" bottles (e.g., Coleman, Bernzomatic) using the CGA600 thread.
• Applications: Ideal for refilling small tanks for camping stoves, portable heaters (like Mr. Heater Buddy), lanterns, and tabletop grills.

When to Replace

• Visible Gas Leaks: Hissing sounds or the smell of propane at the connection points; check with soapy water immediately.
• Damaged Gauge: The pressure dial is cracked, fogged, or the needle is stuck, preventing accurate monitoring of the refill process.
• Corroded Threads: Significant green oxidation or physical damage to the brass threads that prevents a smooth, airtight connection.
• Valve Malfunction: The control lever becomes difficult to turn or fails to stop the flow of gas completely when in the "off" position.
• Worn Gaskets: The internal rubber seals appear dry-rotted, cracked, or missing.

Installation Tips

• The Freezer Trick: For a more complete fill, place the empty 1lb cylinders in the freezer for 30 minutes before refilling. Keep the 20lb "donor" tank at room temperature to create a pressure differential.
• Tank Inversion: To transfer liquid propane (rather than just vapor), you must turn the 20lb supply tank upside down during the refill process.
• Purge Air First: Ensure the 1lb tank is empty. If the tank won't accept fuel, use a small tool to briefly depress the internal valve of the 1lb tank to release any trapped air.
• Safety Monitoring: Always use a digital scale to weigh the 1lb tank. Never exceed a total weight of 2lbs (which includes the weight of the metal bottle and the 16oz of fuel).
• Outdoor Use Only: Never perform a refill indoors or in an enclosed space like a garage, as propane is heavier than air and can pool at ground level.
