[Lifetime Warranty] 100 lb Propane Tank Adapter, POL Propane Gauge for 100 lb Propane Tank, Converts POL LP Tank Service Valve to QCC1/Type 1 - Old to New Connection Type

100 lb Propane Tank Adapter, POL Propane Gauge for 100 lb Propane Tank, Converts POL LP Tank Service Valve to QCC1/Type 1 - Old to New Connection Type

Key Features

• Converts older style POL (Prest-O-Lite) tank service valves to the newer QCC1/Type 1 connection standard.

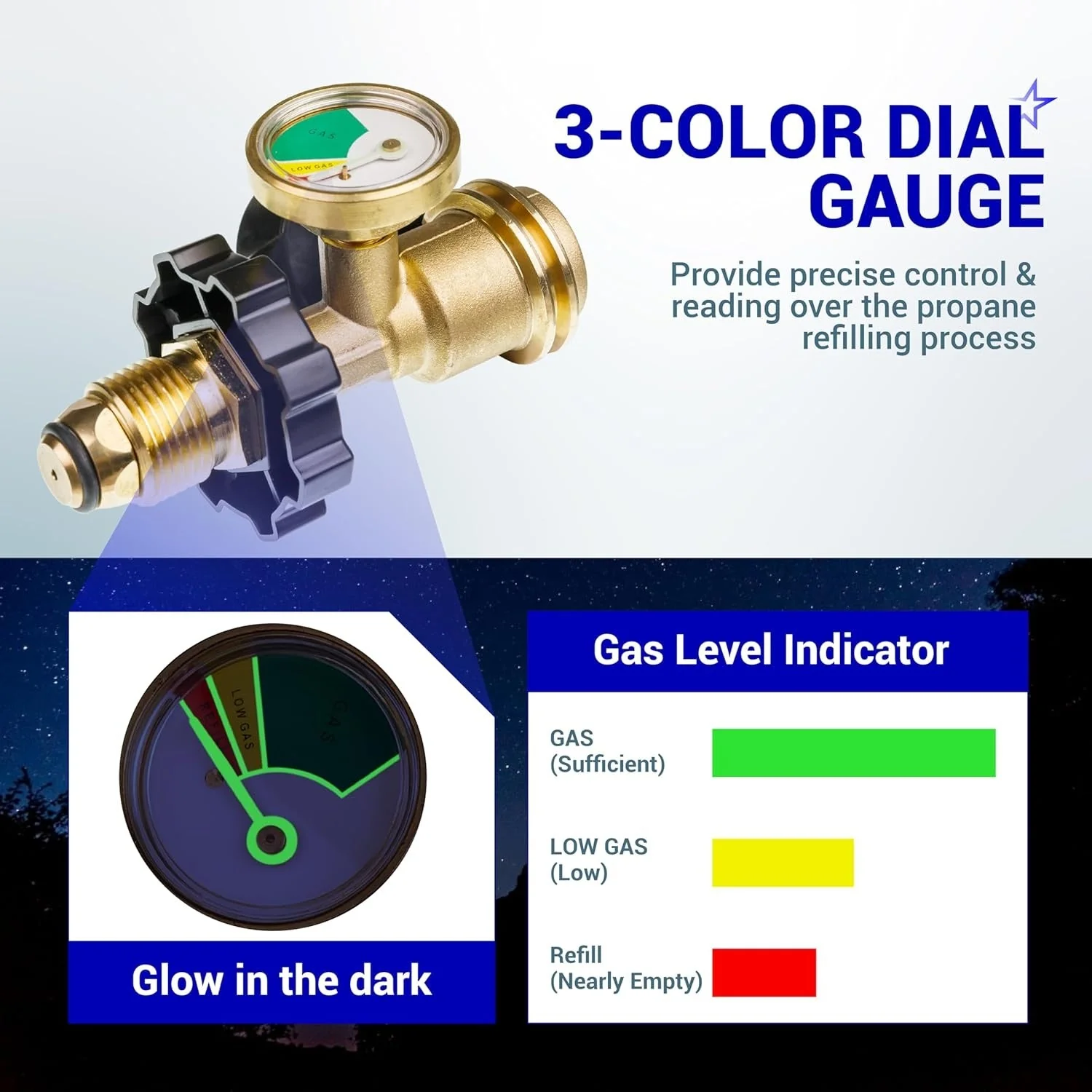

• Features an integrated, color-coded pressure gauge to monitor remaining propane levels.
• Provides dual connection output, accommodating both QCC1/Type 1 and older male POL fittings.

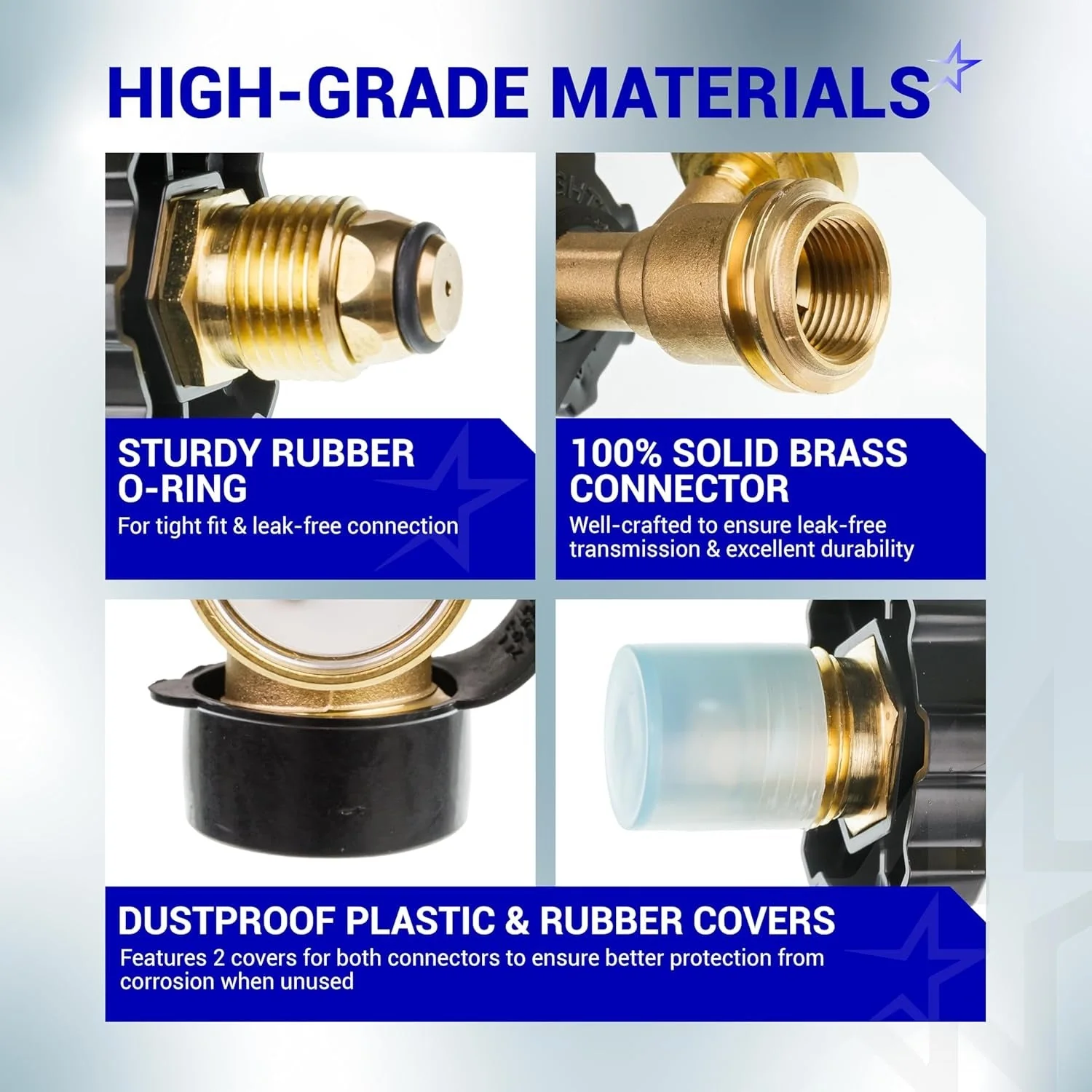

• Constructed from solid brass for durability and corrosion resistance.
• Includes an internal excess flow safety device and a thermal shut-off feature.
• Large plastic hand-wheel allows for tool-free tightening of QCC1/Type 1 connections.

Replaces / Cross-Reference Part Numbers

• Universal adapter for converting POL connections to QCC1/Type 1.
• Connection Type (Inlet): POL (CGA 510)
• Connection Type (Outlet): QCC1/Type 1 (and internal female POL)

Compatibility & Fitment

• Fits standard propane cylinders from 5 lbs to 100 lbs with POL service valves.
• Connects to any appliance hose or regulator equipped with a QCC1/Type 1 connector.

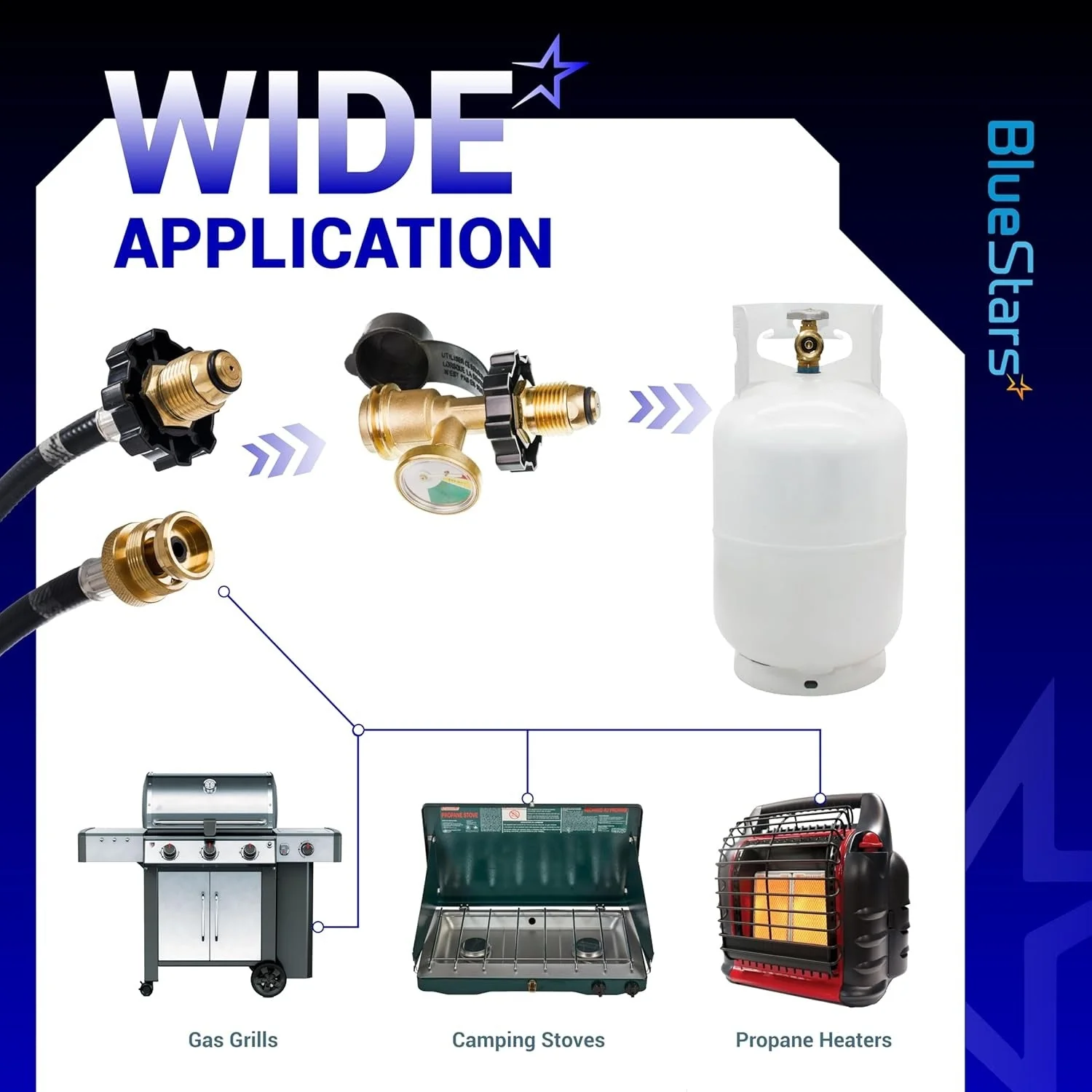

• Suitable for use with BBQ grills, RVs, portable heaters, generators, and other propane appliances.

When to Replace

• Use this adapter to connect modern QCC1/Type 1 appliances to an older propane tank with a POL valve.
• Use to add a visual fuel gauge to an existing propane tank setup.
• Replace any existing adapter if threads are stripped or damaged, if the gauge is non-functional, or if a leak is detected at the fitting.

Installation Tips

• Ensure the propane tank valve is fully closed before installation.
• Thread the adapter's male POL fitting into the tank valve and tighten firmly with a wrench.
• Attach the QCC1/Type 1 hose connector by hand-tightening the plastic nut. Do not use tools on the plastic QCC1 connector.
• After connecting, slowly open the tank valve and check for leaks at all connection points using a soapy water solution.
• The gauge will only provide a pressure reading when the tank valve is open. Reading accuracy can be affected by ambient temperature.
