[Lifetime Warranty] 6 uF MFD ±5% 370/440 VAC Oval Run Start Capacitor 50/60 Hz - Fits AC Motor Run, Fan Start, Heat Pump
6uF mfd ±5% 370-440VAC Oval Run Start Capacitor

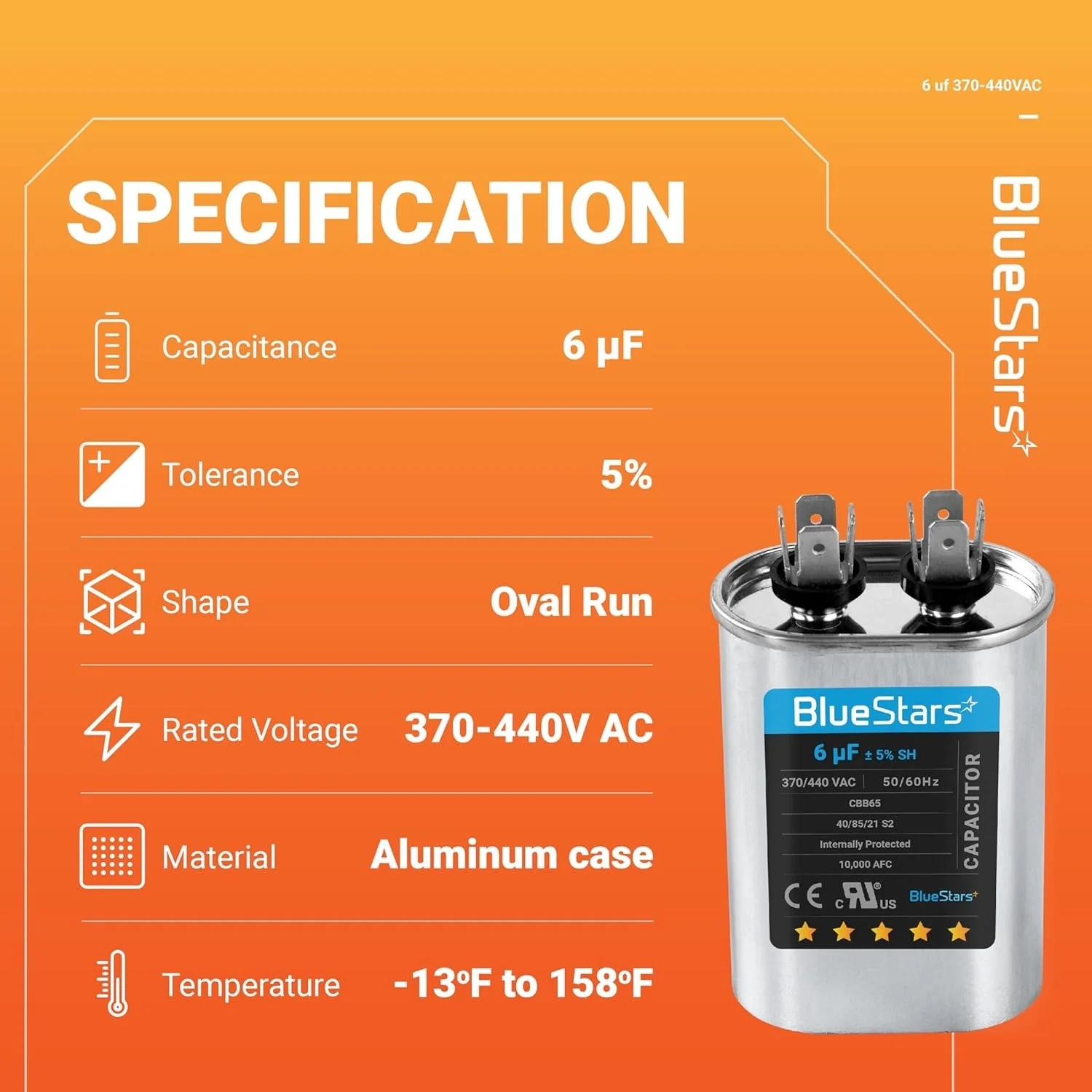

Key Features
- Capacitance: 6 microfarads (uF)
- Tolerance: ±5%
- Voltage Rating: 370/440 VAC, dual rated
- Frequency: 50/60 Hz

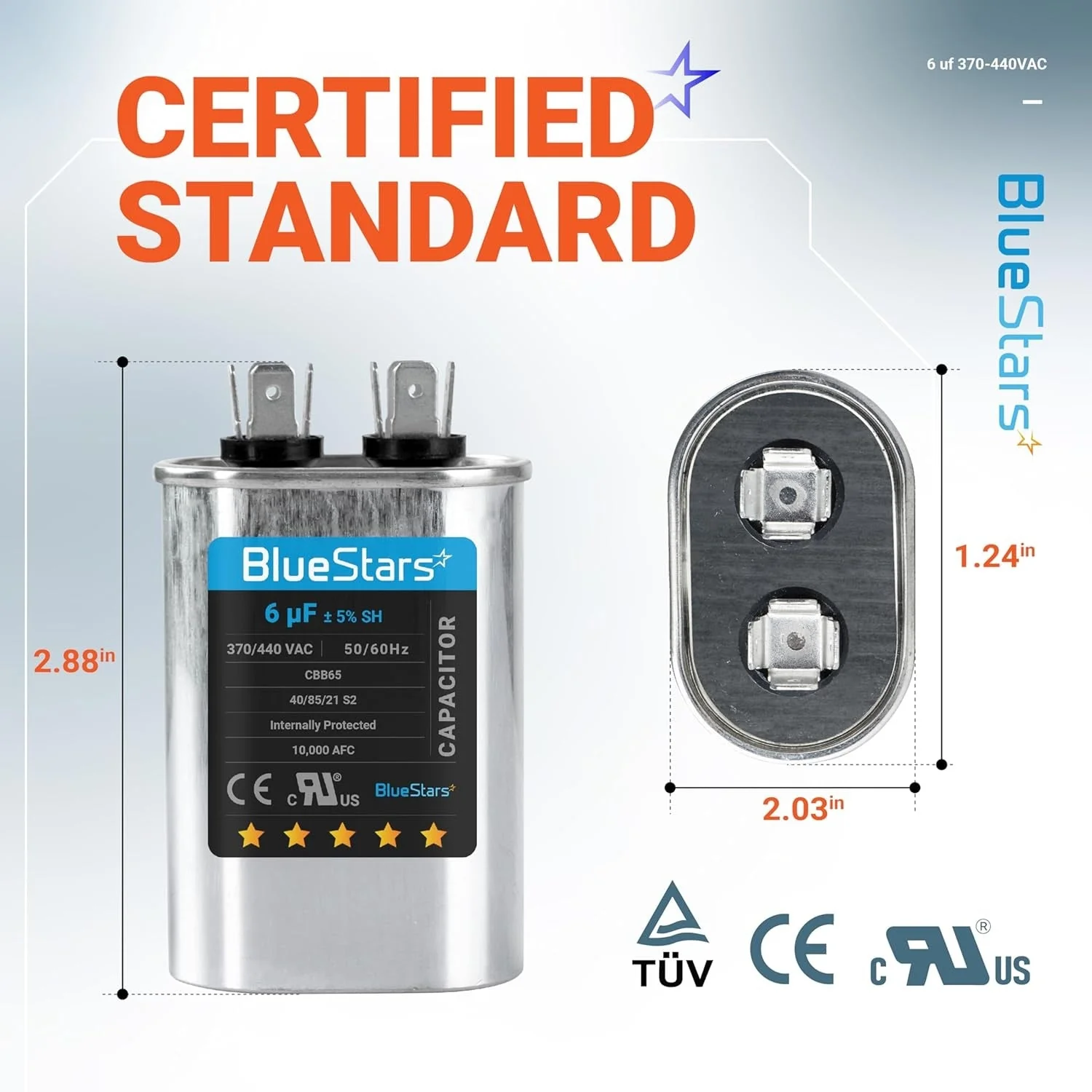

- Shape: Oval
- Operating Temperature: -40° C to 70° C
- Construction: Metallized polypropylene film
- Dielectric: Non-PCB fluid-filled

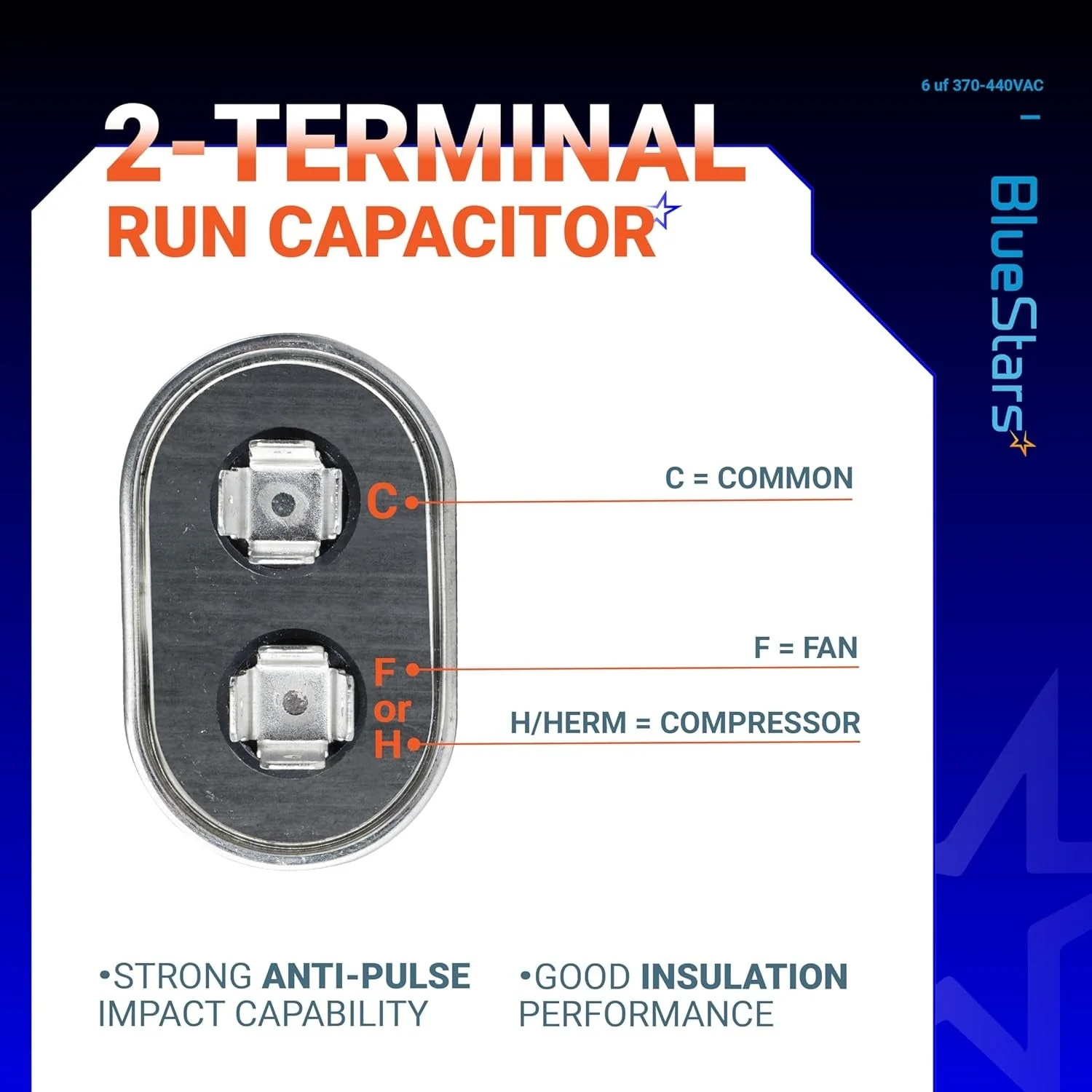

- Terminals: 1/4 inch male quick-connect
- Standards: EIA-456 compliant, UL recognized, RoHS compliant
Replaces / Cross-Reference Part Numbers
- Replaces any oval 6 MFD or 6 uF capacitor with a 370V or 440V rating.
- AMRAD USA2030
Compatibility & Fitment
- Designed for continuous duty in single-phase AC motor run applications.
- Used in air conditioners, heat pumps, compressors, furnaces, and fan motors.
- The physical dimensions must match the mounting bracket of the existing equipment.
When to Replace
- Motor hums but does not start.
- Motor starts or runs slowly.
- Fan blades require a manual push to start spinning.
- Visible signs of damage, such as a bulging top, cracks, or fluid leaks.
- Capacitance measures outside the ±5% tolerance when tested with a multimeter.

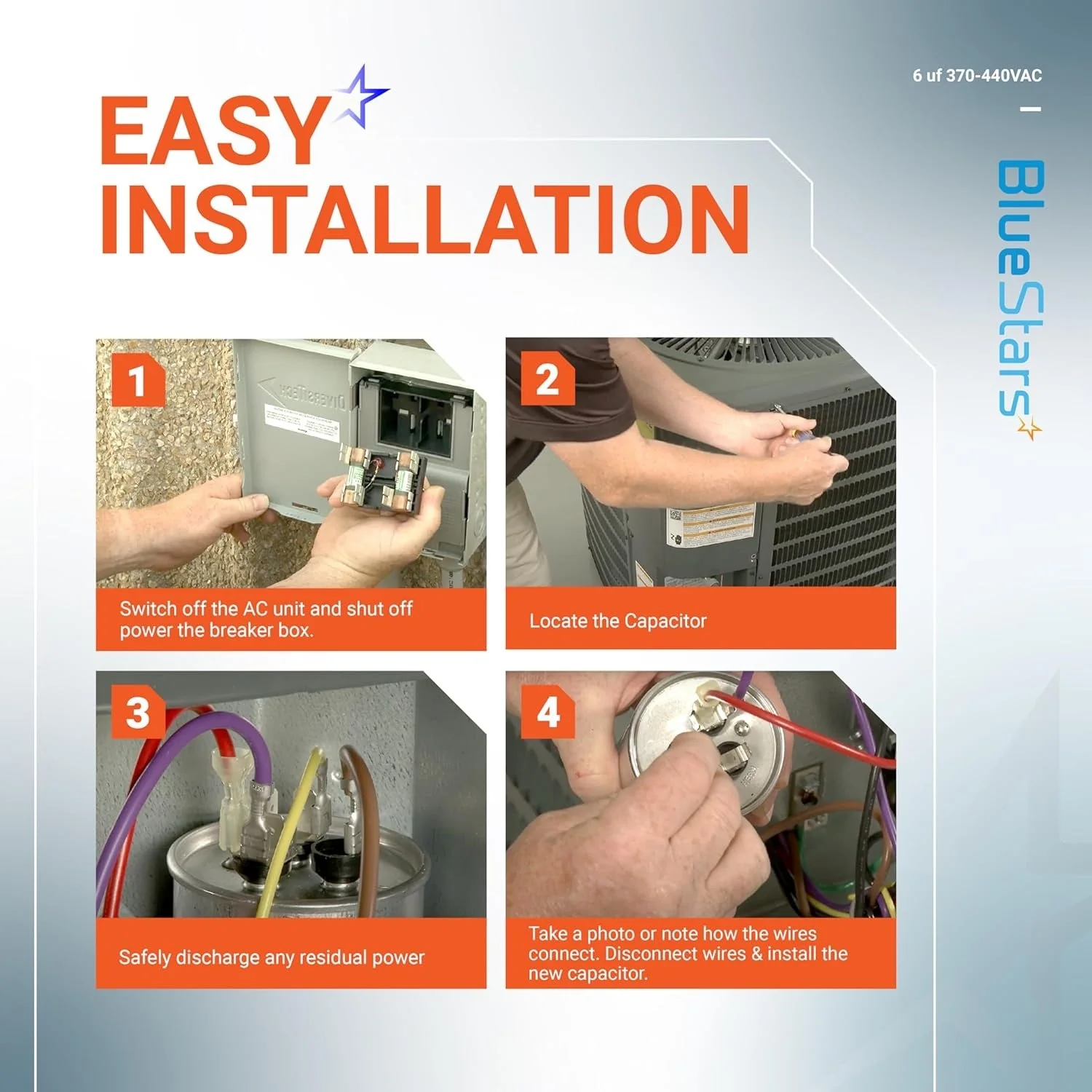

Installation Tips
- Disconnect all electrical power to the appliance before installation.
- Safely discharge the old capacitor by shorting the terminals with a resistor or insulated screwdriver.

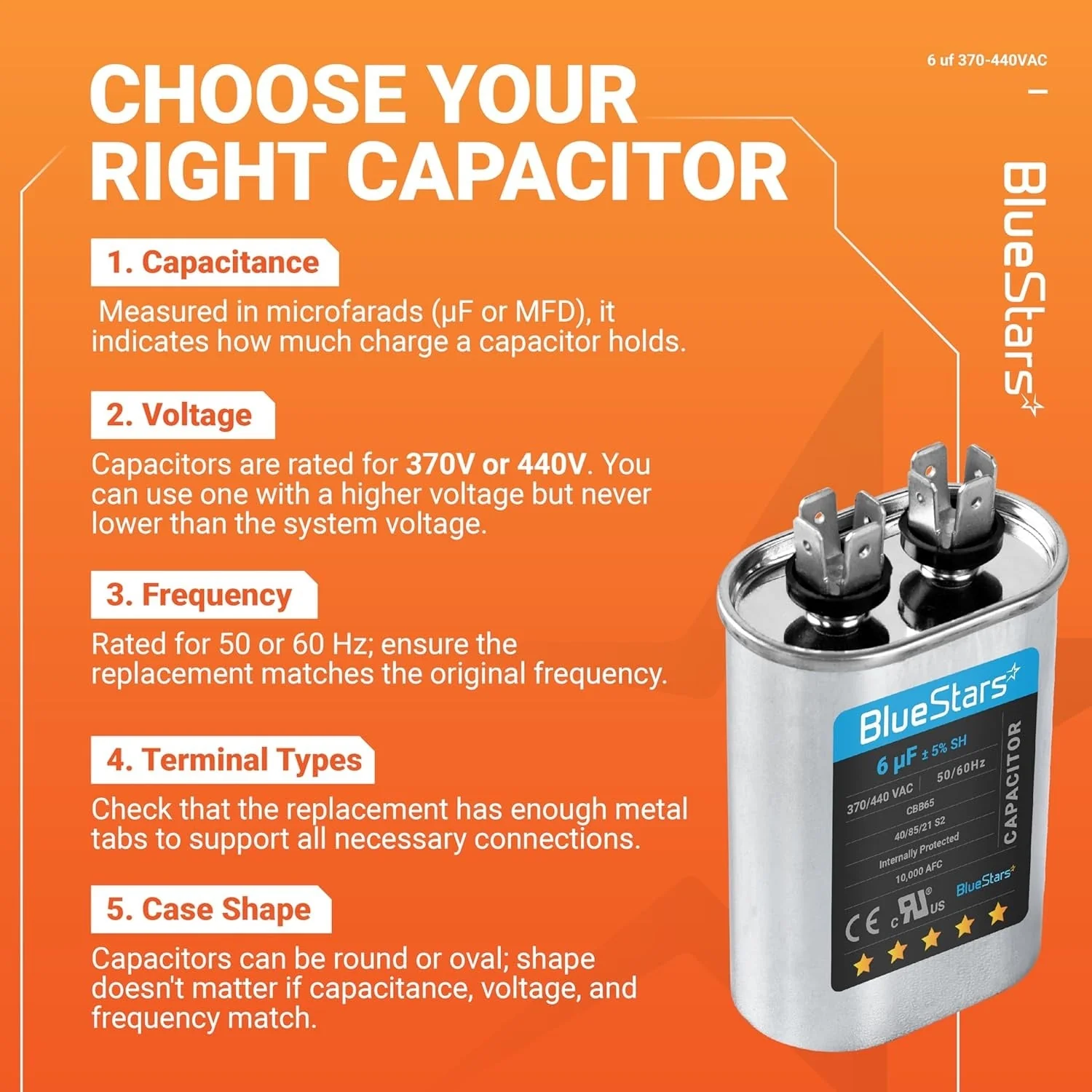

- Ensure the new capacitor's uF (MFD) rating matches the original specification exactly.
- Using a capacitor with an equal or higher VAC rating is acceptable. Do not use one with a lower VAC rating.
- Note the wire placement on the old capacitor's terminals before disconnecting.
