[Lifetime Warranty] BPV-31 Bullet Piercing Valve 3 in 1 Access for Air Conditioners HVAC 1/4 5/16 3/8 Inch OD Pipes - Replaces AP4502525 - Pack of 4
BPV-31 Bullet Piercing Valve 3 in 1 Access - Pack of 4
Key Features
- Maximum operating pressure: 500 PSI
- Pressure tested at 250°F
- Single-piece gasket design provides a large sealing area

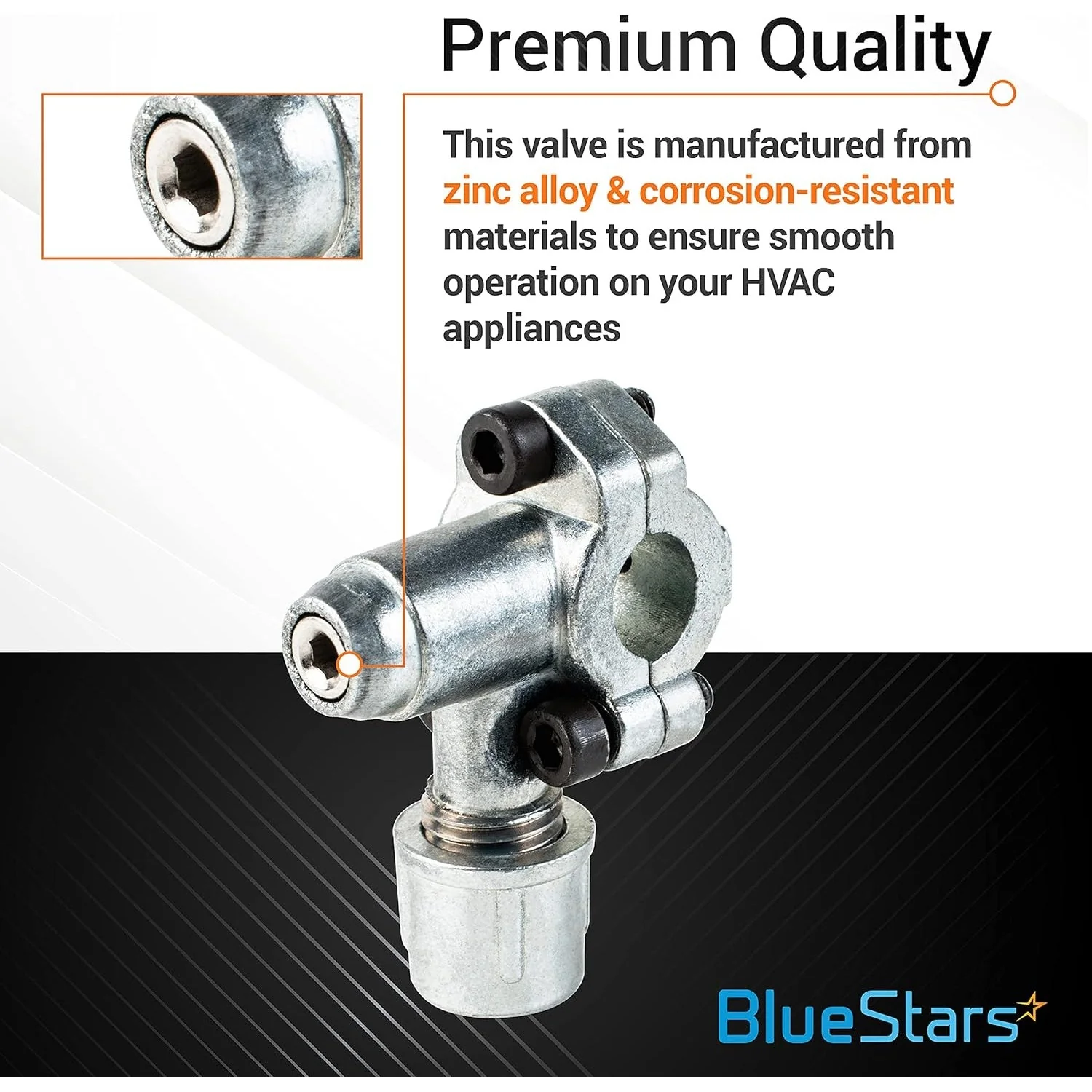

- Corrosion-resistant zinc construction
- Non-positional mounting requires no adapter valves
- Requires 2 inches of clearance for installation
- Includes hex key wrench
Replaces / Cross-Reference Part Numbers
- BPV31
- SUPCO BPV31
- 6X898
Compatibility & Fitment
- Universal design fits three tubing sizes
- For 1/4 in, 5/16 in, and 3/8 in outside diameter (OD) tubing
- Suitable for use on the low-pressure side of R-410A systems and other common refrigerants
When to Replace
- Add a service port for system diagnostics, evacuation, or charging
- Install a gauge port on a sealed refrigeration line
- Repair a system where original service ports are damaged or inaccessible
Installation Tips
- Clean the tubing surface of all dirt, paint, and corrosion before clamping
- Ensure installation occurs on a straight, round, and undamaged section of tubing
- Use the correct sleeve insert for the specific tubing diameter
- Tighten clamp screws evenly until the piercing needle is seated
- Do not attempt to reuse or reposition the valve after the line has been pierced
$28.13
[Lifetime Warranty] BPV-31 Bullet Piercing Valve 3 in 1 Access for Air Conditioners HVAC 1/4 5/16 3/8 Inch OD Pipes - Replaces AP4502525 - Pack of 4—
$28.13
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
BPV-31 Bullet Piercing Valve 3 in 1 Access - Pack of 4
Key Features
- Maximum operating pressure: 500 PSI
- Pressure tested at 250°F
- Single-piece gasket design provides a large sealing area
- Corrosion-resistant zinc construction
- Non-positional mounting requires no adapter valves
- Requires 2 inches of clearance for installation
- Includes hex key wrench
Replaces / Cross-Reference Part Numbers
- BPV31
- SUPCO BPV31
- 6X898
Compatibility & Fitment
- Universal design fits three tubing sizes
- For 1/4 in, 5/16 in, and 3/8 in outside diameter (OD) tubing
- Suitable for use on the low-pressure side of R-410A systems and other common refrigerants
When to Replace
- Add a service port for system diagnostics, evacuation, or charging
- Install a gauge port on a sealed refrigeration line
- Repair a system where original service ports are damaged or inaccessible
Installation Tips
- Clean the tubing surface of all dirt, paint, and corrosion before clamping
- Ensure installation occurs on a straight, round, and undamaged section of tubing
- Use the correct sleeve insert for the specific tubing diameter
- Tighten clamp screws evenly until the piercing needle is seated
- Do not attempt to reuse or reposition the valve after the line has been pierced
