[Lifetime Warranty] 216-259 uF MFD 330 VAC Round Start Capacitor - Fits AC Motor Run, Fan Start, Heat Pump
216-259 Mfd uF 330 VAC Capacitor

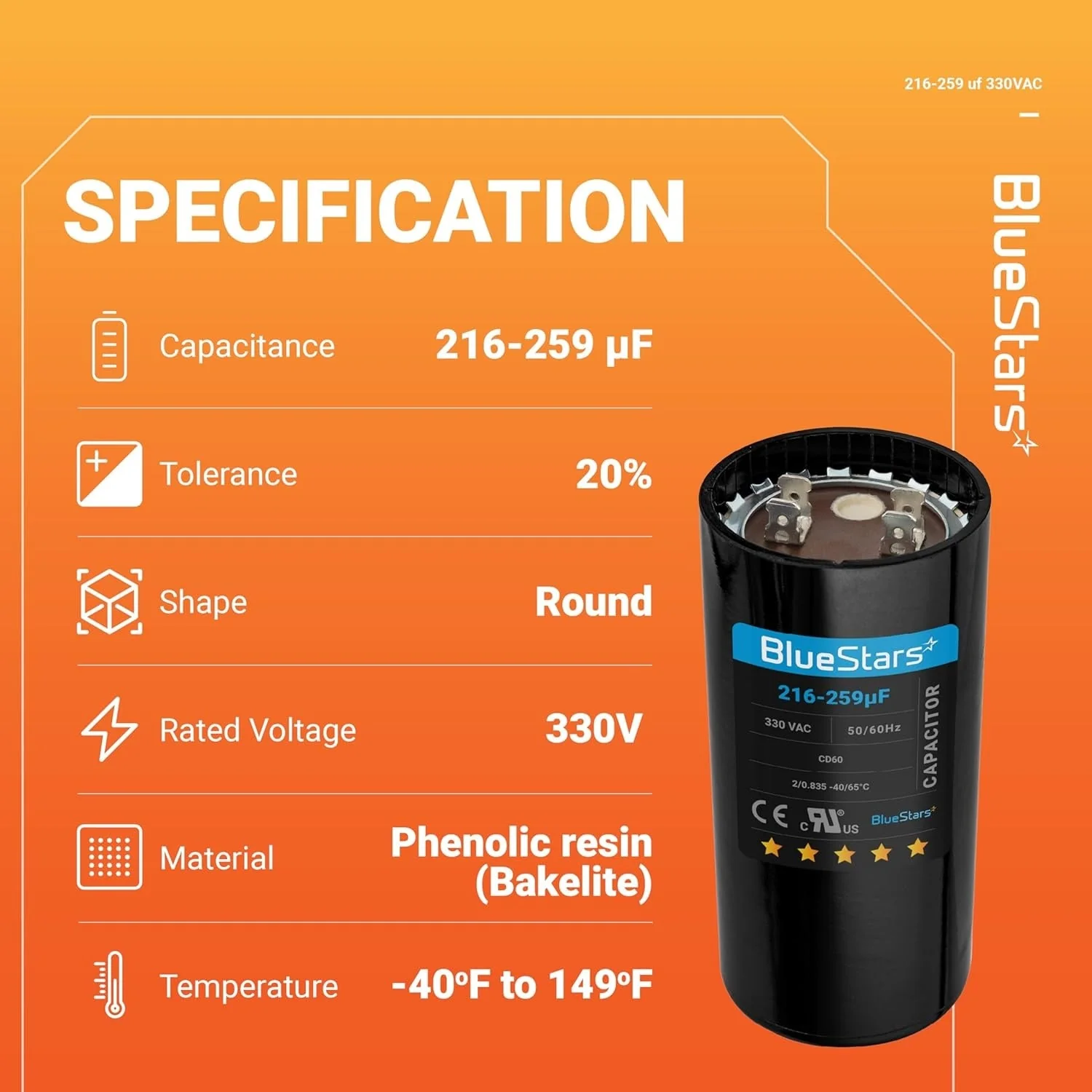

Key Features
- Capacitance: 216-259 MFD / uF
- Voltage Rating: 330 VAC
- Frequency: 50/60 Hz
- Terminals: Standard 1/4 inch male quick-connect
- Operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Construction: Dry, non-polarized electrolytic capacitor
- Case: Moisture and oil-resistant plastic housing
- Safety Standard: UL 810 Recognized
Replaces / Cross-Reference Part Numbers
- 100368-01
- 091A216B330DE8X
- CD60B-3CJ216259R-M1
- SCP-216-259/330VLTG
- TRMJ216
Compatibility & Fitment
- Application: Intermittent duty for single-phase AC motor starting circuits
- Fits fractional horsepower motors requiring a start capacitor with a 216-259 uF range and 330 VAC rating.
- Physical dimensions are approximately 1.81 in. diameter x 4.38 in. length. Verify measurements for proper fit.
When to Replace
- Motor hums but struggles or fails to start.
- Motor requires manual assistance to begin rotation.
- Capacitor case is visibly bulging, cracked, or leaking oil.
- Capacitance measures outside the rated 216-259 uF range when tested.
Installation Tips
- Disconnect all electrical power to the unit before performing service.
- Safely discharge the old capacitor by shorting its terminals with a resistor or insulated tool.
- Note the wire positions before disconnecting the original part.
- Ensure the replacement capacitor's voltage rating (VAC) is equal to or greater than the original.
- Match the capacitance range (uF/MFD) to the motor's requirement.
