[Lifetime Warranty] WH03X30517 Washer Shift Actuator & WH01X27538 Washer Drive Belt & WH05X24185 Washing Machine Clutch & WH01X24434 Washer Spring - for GE Hotpoint Clothes Washer

WH03X30517 Washer Shift Actuator & WH01X27538 Washer Drive Belt & WH05X24185 Washing Machine Clutch & WH01X24434 Washer Spring

Key Features

• Complete four-piece repair kit for washing machine drive systems.

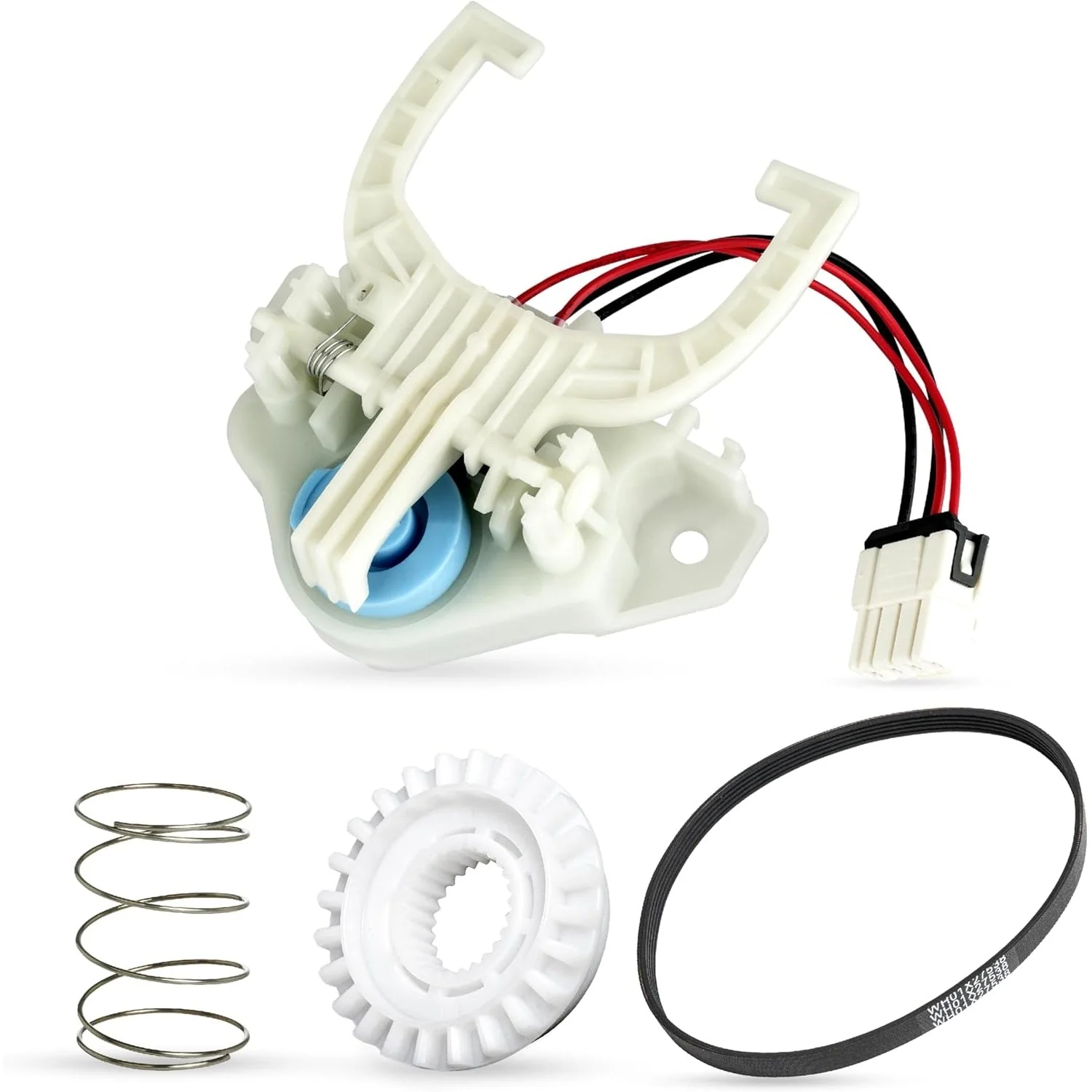

• Includes (1) WH03X30517 Shift Actuator, (1) WH01X27538 Drive Belt, (1) WH05X24185 Clutch, and (1) WH01X24434 Spring.
• The shift actuator controls motor functions, switching between agitate and spin cycles.

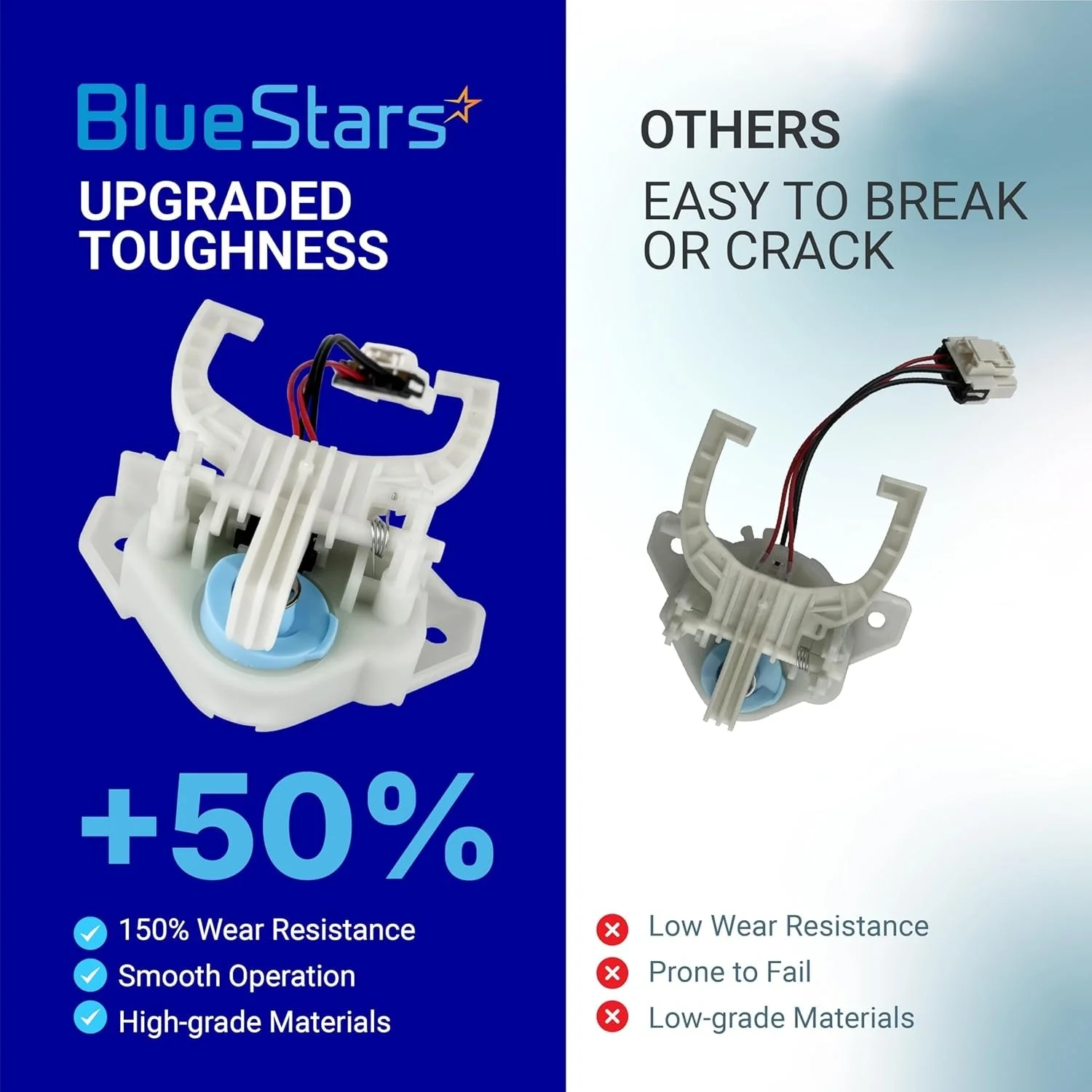

• Components constructed from durable materials, including high-grade ABS plastic for the actuator and clutch.

Replaces / Cross-Reference Part Numbers

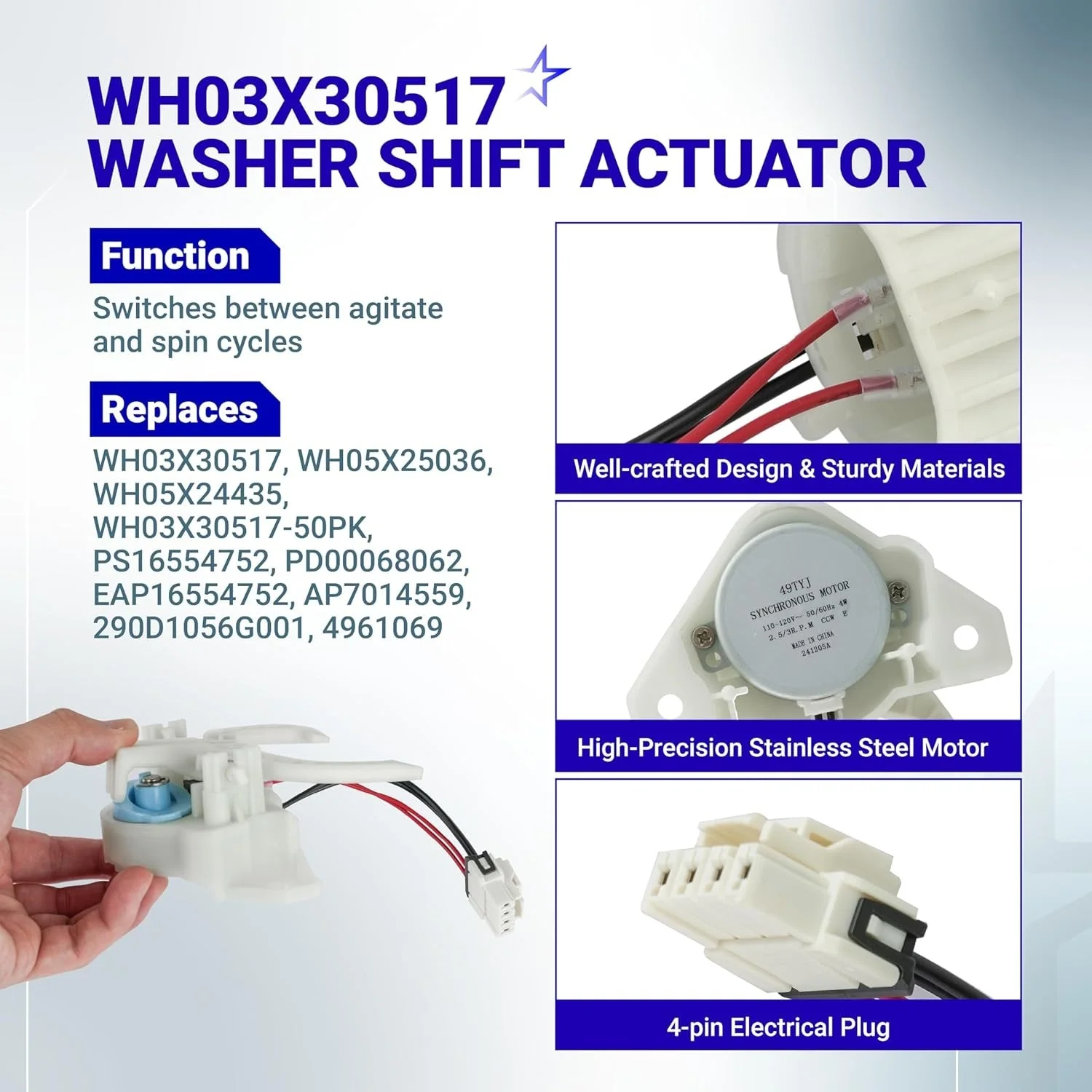

• Shift Actuator (WH03X30517): AP7014559, PS16554752, WH05X25036, WH05X24435, EAP16554752, PD00068062, 4961069, 290D1056G001, WH03X30517CM, OEM21043682
• Drive Belt (WH01X27538): AP6328256, PS12299369, EAP12299369, 4587903, PD00043350, WH01X27538-50PK, 290D1101P005
• Clutch (WH05X24185): AP5993402, PS11729473, EAP11729473, 4588013, PD00043605
• Spring (WH01X24434): AP6031748, PS11763251, EAP11763251, 4587847, PD00055310

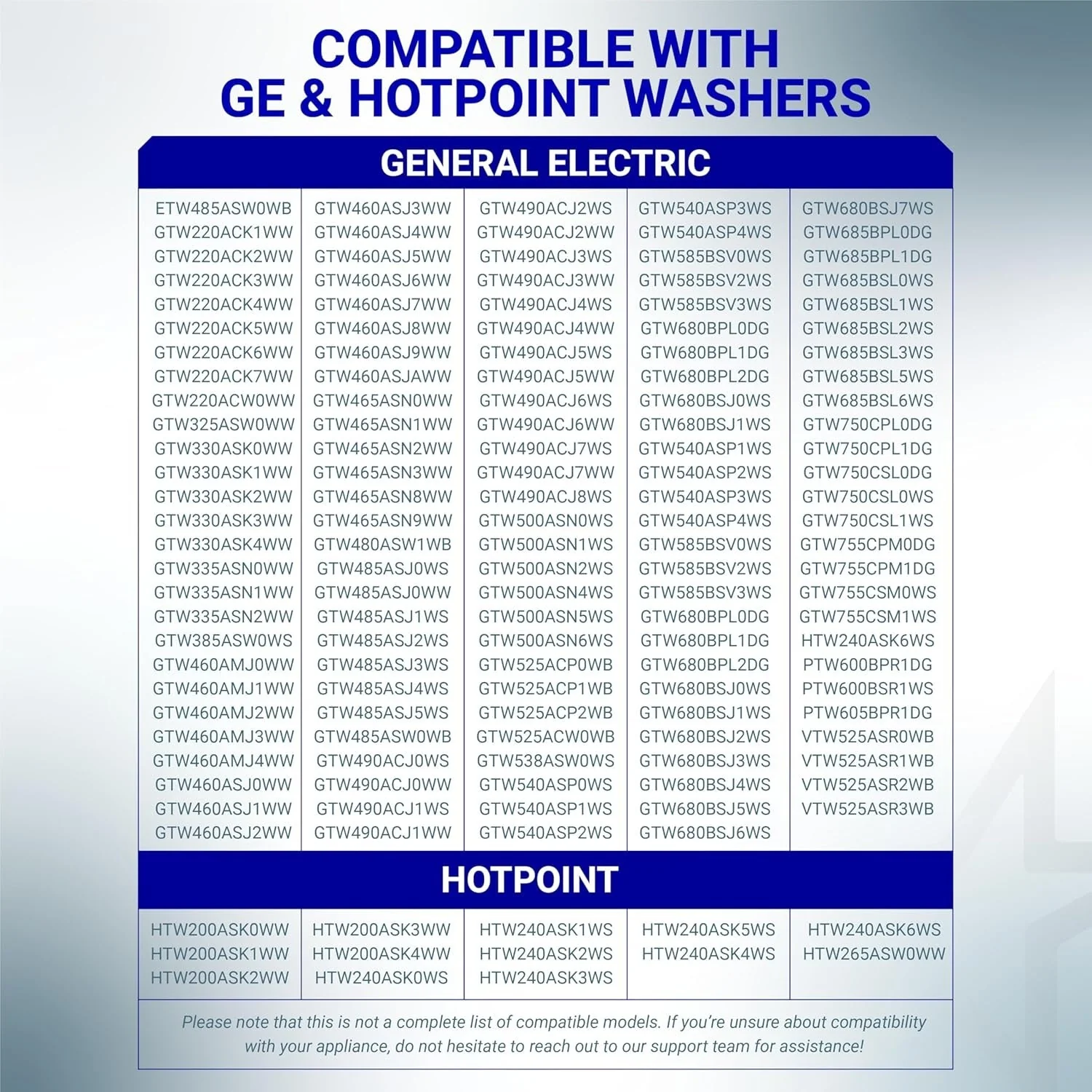

Compatibility & Fitment

• Designed for direct fitment on a wide range of top-load washing machine models.
• Primary brands: GE, Hotpoint.
• Confirm compatibility by matching your appliance's model number and the original part numbers.

When to Replace

• Washer will not agitate or spin.
• Loud grinding, whirring, or squealing noises during operation.
• Washer stops mid-cycle.
• Clothes remain soaking wet after the final spin cycle is complete.
• Specific error codes related to the motor or mode shifter appear.

Installation Tips

• Disconnect the washing machine from both power and water supplies before beginning repairs.
• Wear safety gloves to protect your hands.
• Take a picture of the existing part connections for reference during reassembly.
• Refer to your washer's service manual for model-specific instructions.
