[Lifetime Warranty] W10131825 Oven Temperature Sensor - Compatible with Whirlpool Maytag KitchenAid Ovens - Replaces WPW10131825 4455636 WPW10131825VP PS11748765

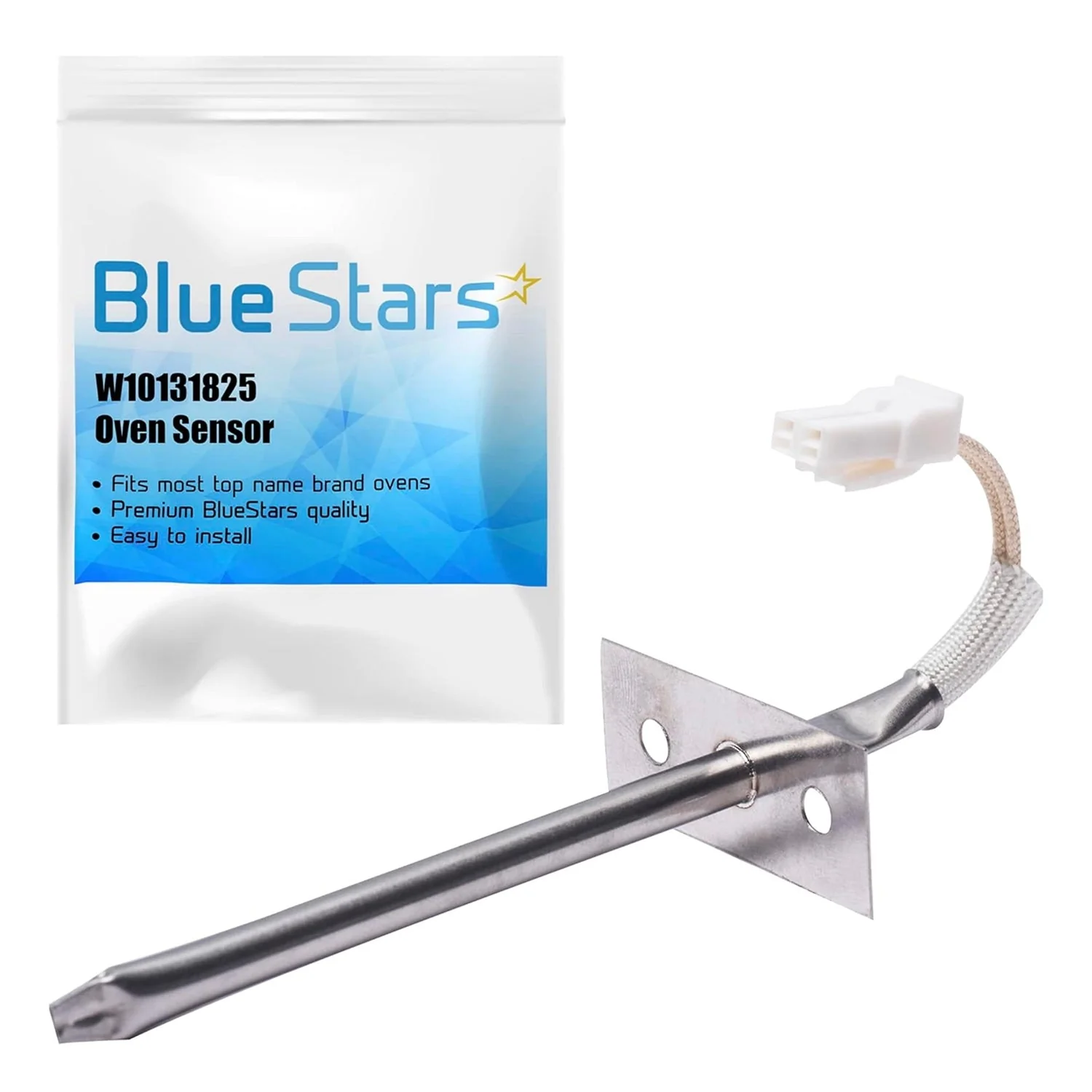

W10131825 Oven Temperature Sensor Replacement
Key Features
- Accurately detects and communicates internal oven temperatures to the control board for consistent thermal regulation.

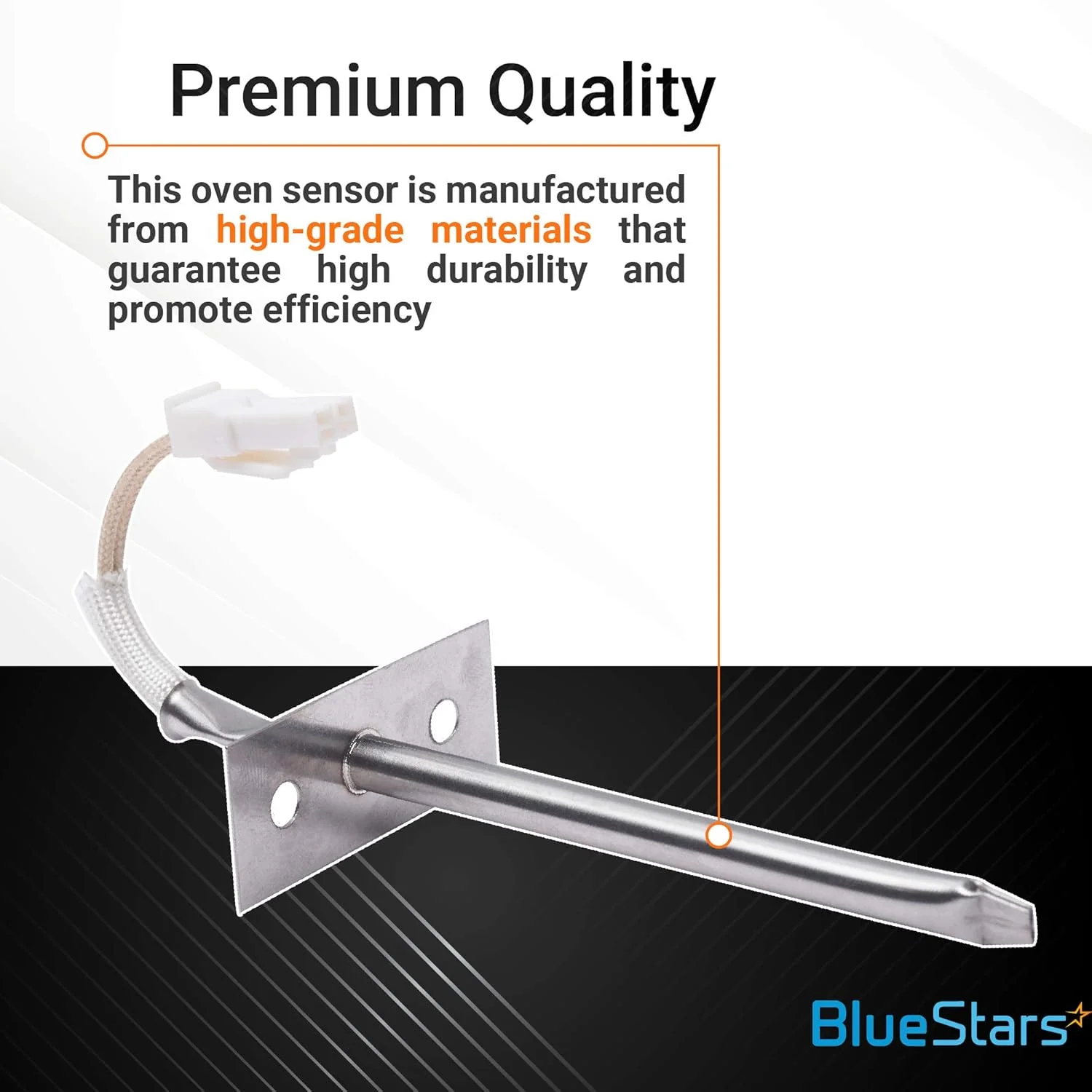

- Constructed with a high-grade stainless steel probe to ensure thermal conductivity and corrosion resistance.

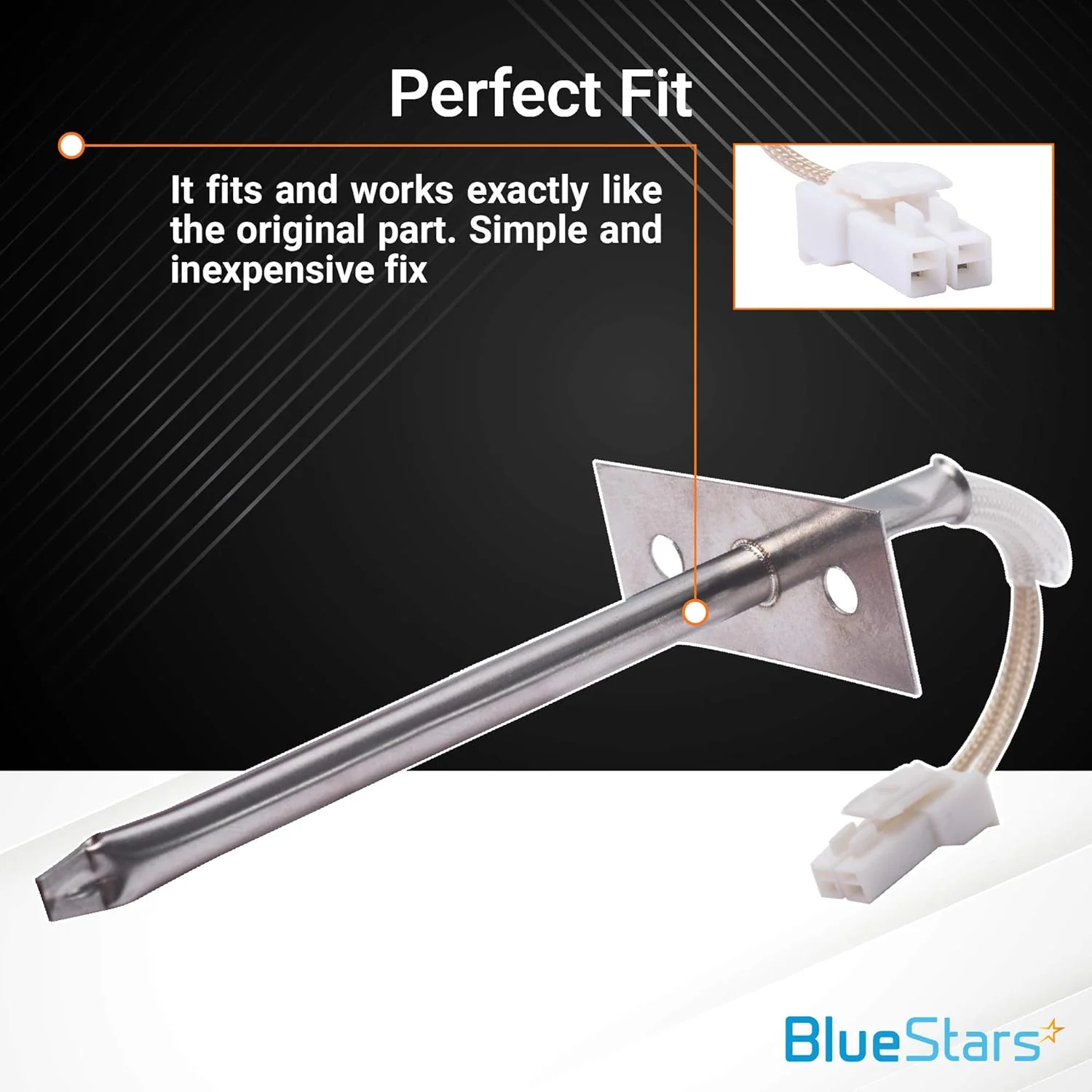

- Equipped with a standardized 2-pin quick-connect wiring harness for efficient electrical termination.
- Precision-calibrated to provide a resistance of approximately 1080–1100 ohms at room temperature (approx. 70°F).
Replaces / Cross-Reference Part Numbers
- WPW10131825
- AP6015486
- PS11748765
- 4455636
- 1449853
- WPW10131825VP
- EAP11748765
- AWP49235

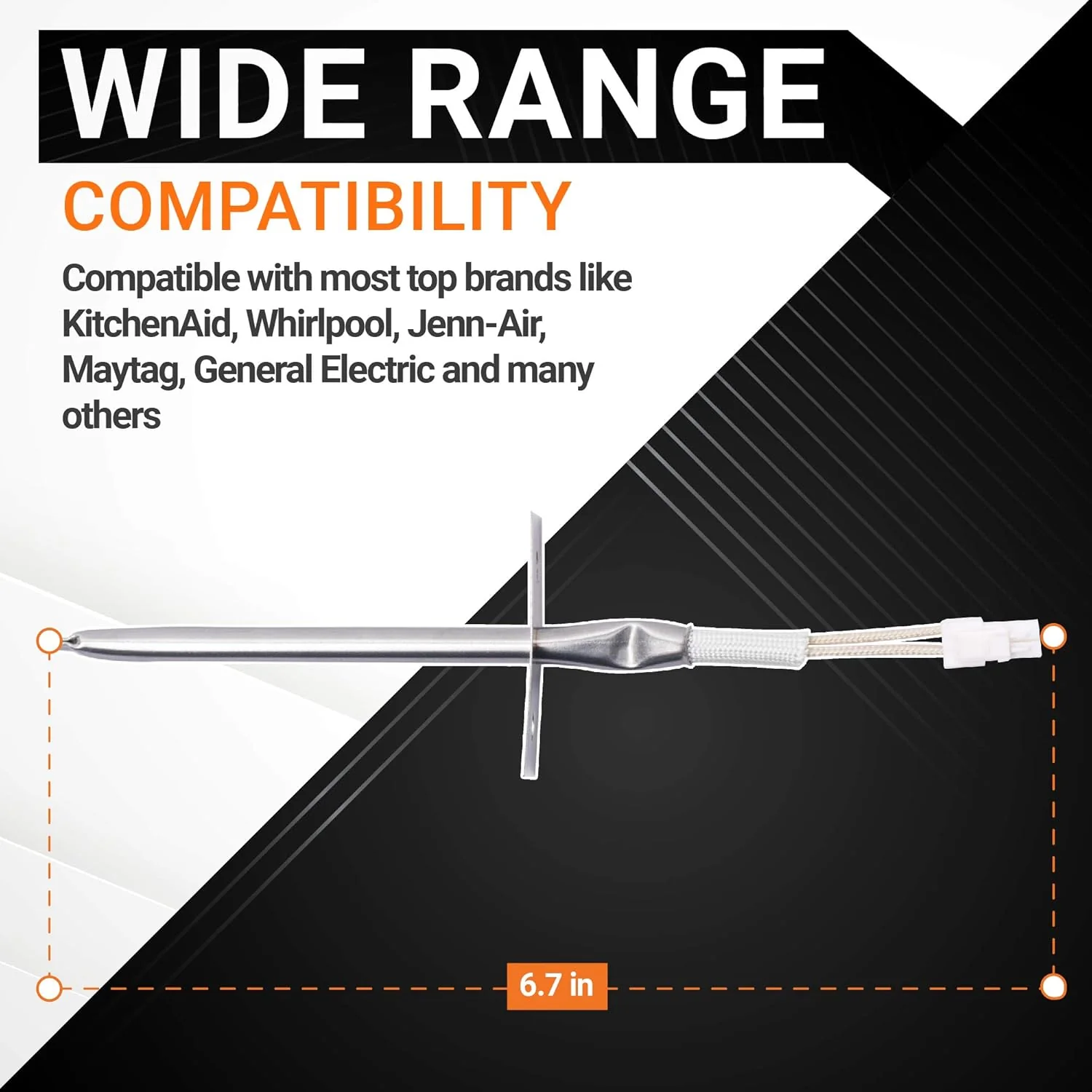

Compatibility & Fitment
- Compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, and Amana ranges and ovens.
- Fits built-in wall ovens, freestanding electric ranges, and gas convection models.
- Designed for use in both upper and lower oven cavities in double-oven configurations.
When to Replace
- Appliance displays temperature-related error codes (e.g., F3, F3-E0, F3-E1, or F3-E2).
- Oven fails to reach the set temperature or significantly overshoots the desired heat level.
- Baking or roasting results are inconsistent, leading to unevenly cooked or burnt food.
- Oven does not heat at all despite the display and controls appearing functional.
- Multimeter testing reveals the sensor is "open" (no continuity) or provides readings outside the 1000–1200 ohm range.
Installation Tips
- Ensure the appliance is disconnected from the power source (unplugged or breaker tripped) before beginning.
- Remove oven racks to provide clear access to the rear of the oven cavity.
- Use a 1/4-inch nut driver or hex head wrench to remove the two screws mounting the sensor to the back wall.
- Pull the sensor and its wiring harness forward until the plastic connector is visible; if it does not pull through, access the connector via the rear panel of the range.
- Depress the locking tab on the connector to release the old sensor and snap the new unit into place.
- Re-insert the wiring into the insulation hole and secure the probe flush against the wall with the mounting screws.
