[Lifetime Warranty] W10006384 W11239857 Washer Drive Belt - Compatible with Whirlpool Maytag Kenmore Washers, Top Load Washing Machines - Replaces WPW10006384 WPW10006384VP PS11747978 AP6014712
W10006384 Washer Drive Belt
Key Features
- Function: Connects the drive motor to the splutch pulley assembly.
- Location: Installs on the underside of the washing machine.
- Action: Enables the tub to spin and agitate.

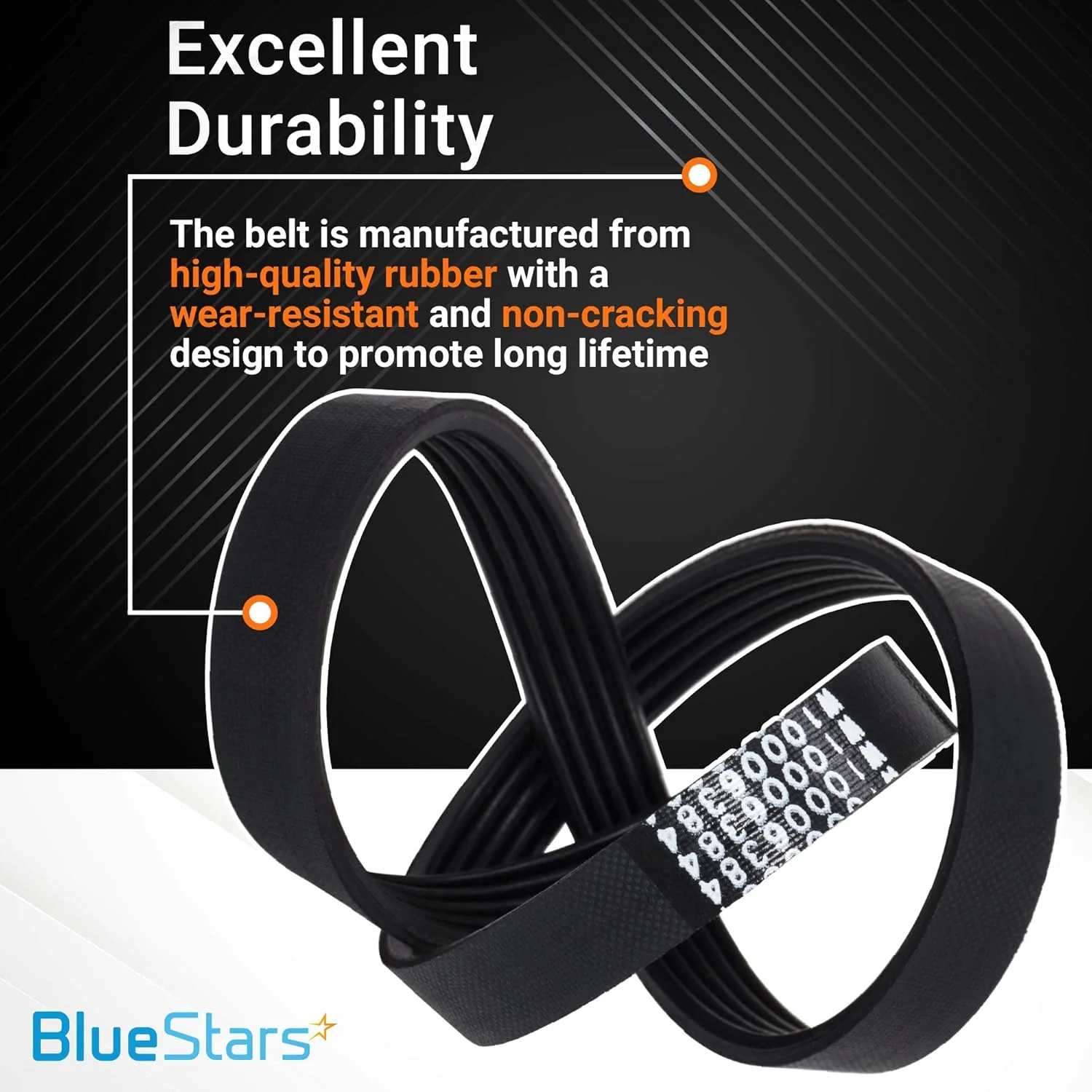

- Material: Composed of durable, flexible rubber composite for longevity.
Replaces / Cross-Reference Part Numbers
- WPW10006384
- W10006384VP
- AP6014712
- PS11747978
- EAP11747978
Compatibility & Fitment
- Fits select top-load washing machines, primarily "Vertical Modular Washer" models manufactured from 2009 to present.

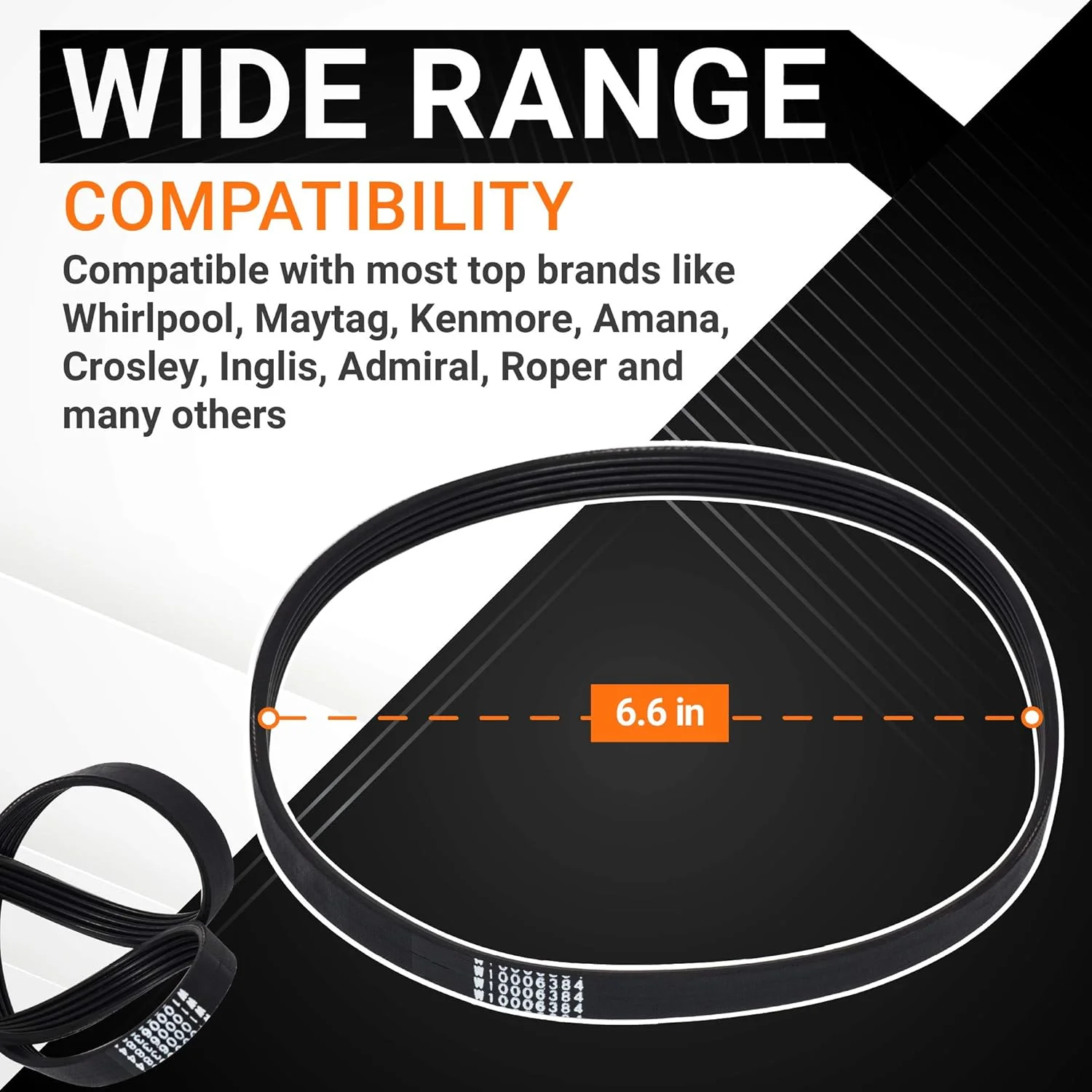

- Compatible with specific models from brands including Whirlpool, Maytag, Kenmore, Amana, and Roper.
- Example model: Maytag MVWC555DW1
When to Replace
- The washer fails to agitate or spin, but the motor can be heard running.
- Loud squealing, thumping, or slapping noises occur during a cycle.
- A distinct burning rubber odor is present.
- The existing belt is visibly frayed, cracked, stretched, or broken.
Installation Tips
- Disconnect the washing machine from all power and water sources before servicing.
- Access the belt by carefully tilting the machine to expose the underside.
- Typical tools required: 5/16-inch nut driver, channel lock pliers, and tape.
- Route the new belt around the motor pulley and the large splutch pulley.
- Ensure the ribbed side of the belt correctly seats into the grooves of the motor pulley.
$14.12
[Lifetime Warranty] W10006384 W11239857 Washer Drive Belt - Compatible with Whirlpool Maytag Kenmore Washers, Top Load Washing Machines - Replaces WPW10006384 WPW10006384VP PS11747978 AP6014712—
$14.12
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
W10006384 Washer Drive Belt
Key Features
- Function: Connects the drive motor to the splutch pulley assembly.
- Location: Installs on the underside of the washing machine.
- Action: Enables the tub to spin and agitate.
- Material: Composed of durable, flexible rubber composite for longevity.
Replaces / Cross-Reference Part Numbers
- WPW10006384
- W10006384VP
- AP6014712
- PS11747978
- EAP11747978
Compatibility & Fitment
- Fits select top-load washing machines, primarily "Vertical Modular Washer" models manufactured from 2009 to present.
- Compatible with specific models from brands including Whirlpool, Maytag, Kenmore, Amana, and Roper.
- Example model: Maytag MVWC555DW1
When to Replace
- The washer fails to agitate or spin, but the motor can be heard running.
- Loud squealing, thumping, or slapping noises occur during a cycle.
- A distinct burning rubber odor is present.
- The existing belt is visibly frayed, cracked, stretched, or broken.
Installation Tips
- Disconnect the washing machine from all power and water sources before servicing.
- Access the belt by carefully tilting the machine to expose the underside.
- Typical tools required: 5/16-inch nut driver, channel lock pliers, and tape.
- Route the new belt around the motor pulley and the large splutch pulley.
- Ensure the ribbed side of the belt correctly seats into the grooves of the motor pulley.
