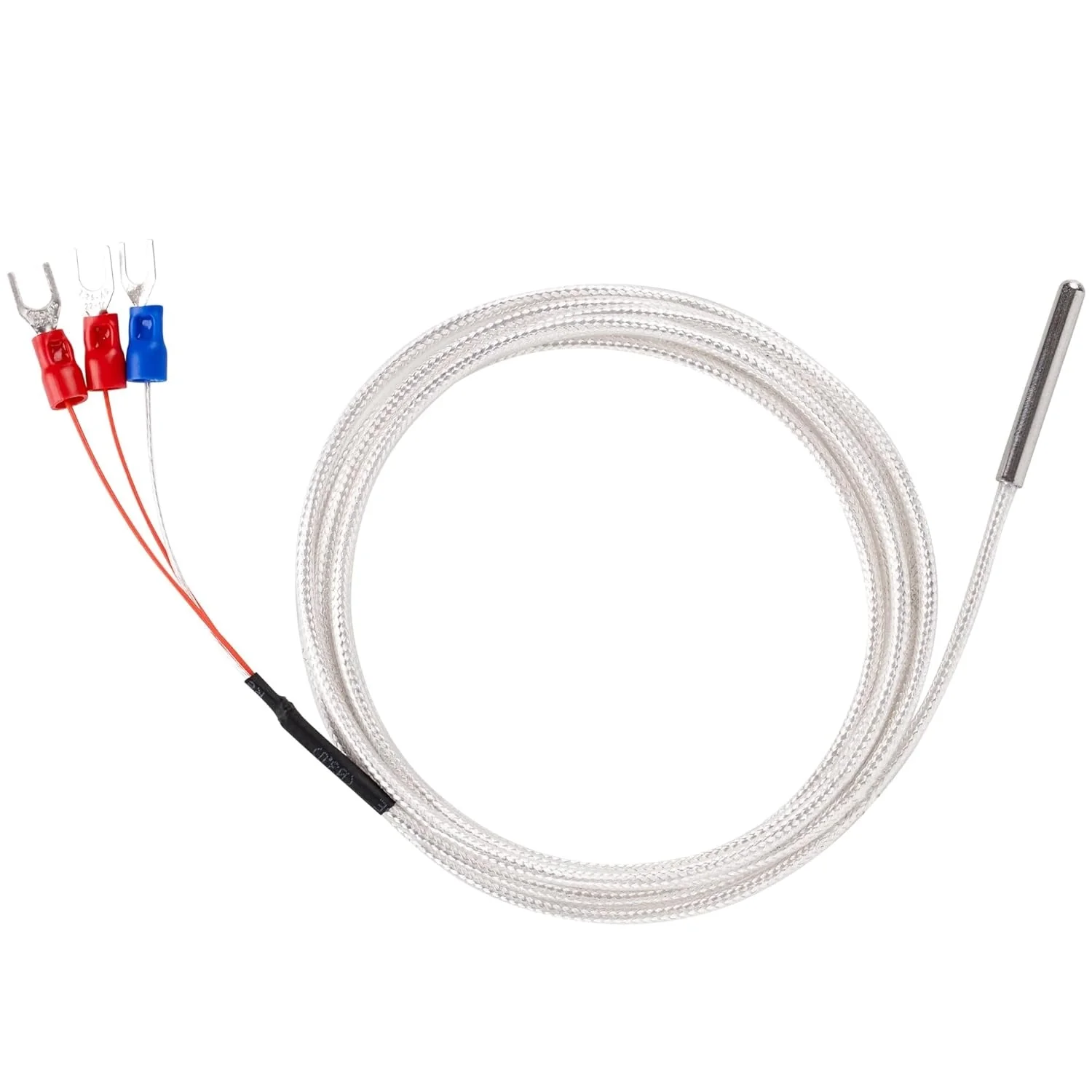

[Lifetime Warranty] RTD PT100 Temperature Sensor Probe 3-Wire Digital

RTD PT100 Temperature Sensor Probe 3-Wire Digital

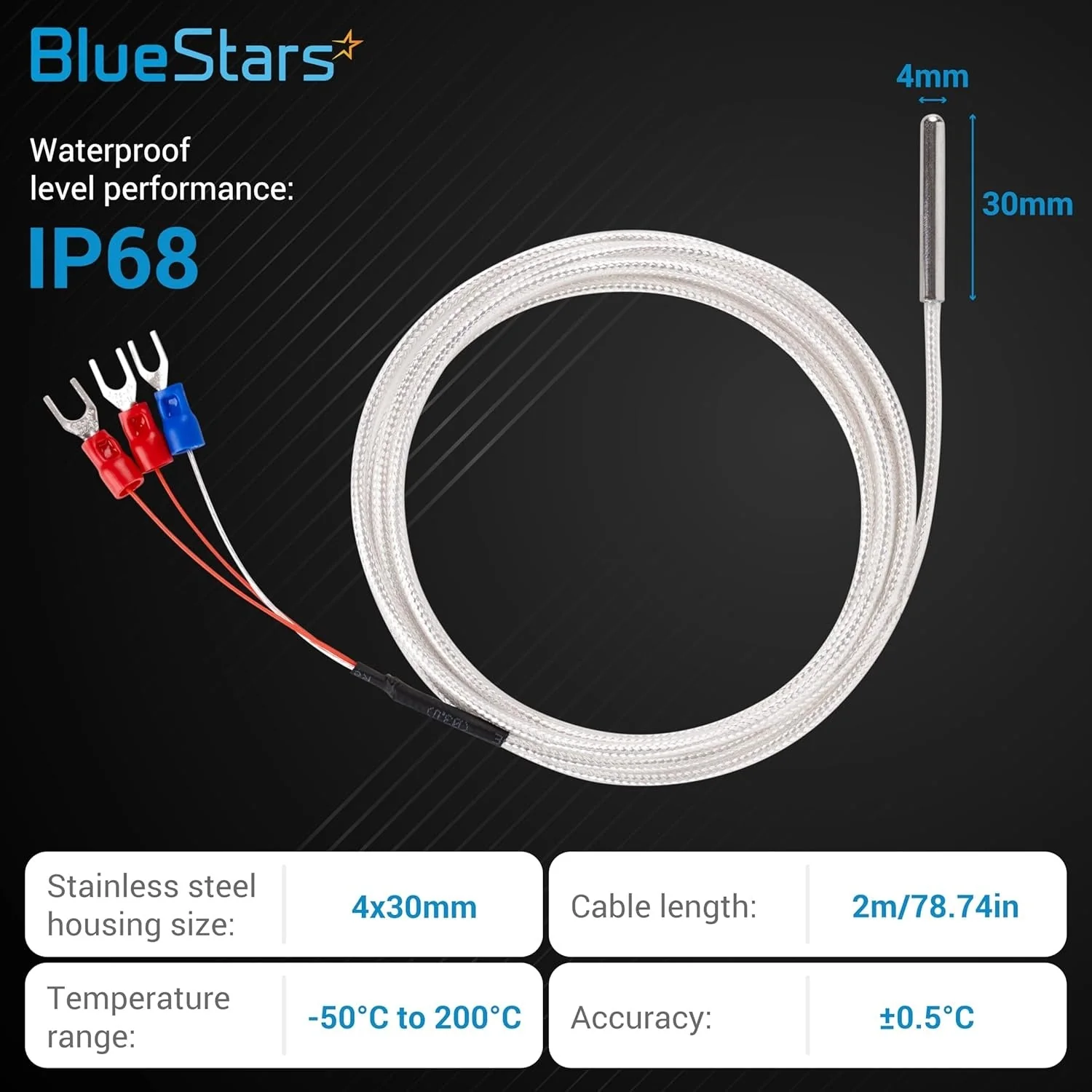

Key Features

• Sensing Element: Platinum Resistance Thermometer (Pt100)
• Resistance: 100 Ohms at 0°C (32°F)
• Configuration: 3-wire design for enhanced measurement accuracy

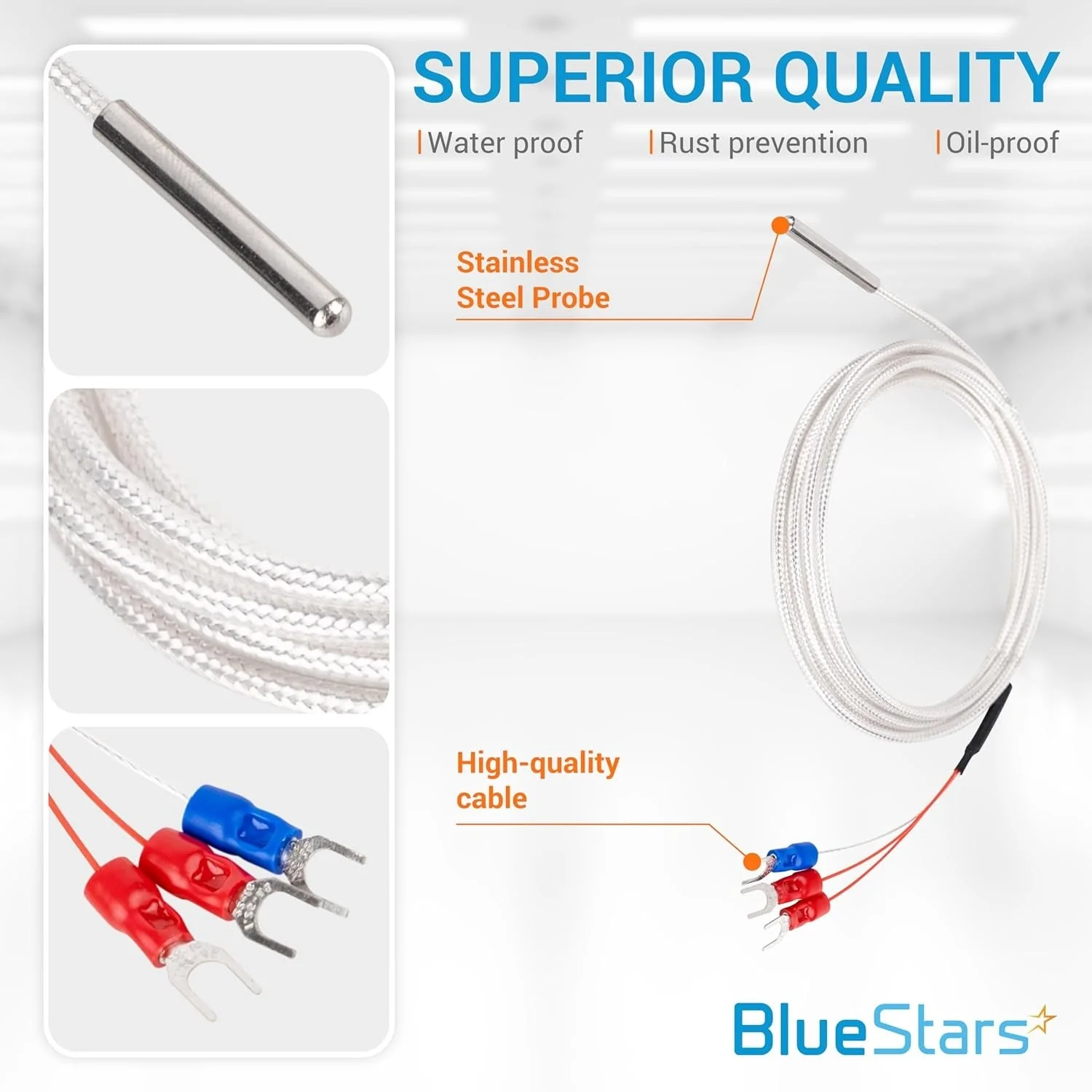

• Probe Sheath: Stainless steel construction for durability and corrosion resistance
• Temperature Range: Varies by model, common ranges include -50°C to 250°C
• Termination: Stripped lead wires for connection to terminal blocks or controllers

Replaces / Cross-Reference Part Numbers

• 3FWX3
• RTD00576
• 3290
• Standard 3-wire Pt100 RTD probes

Compatibility & Fitment

• Compatible with PID temperature controllers, digital thermometers, PLCs, and data acquisition systems that accept a 3-wire Pt100 input.
• Probe diameters and lengths vary by model to fit different thermowells and mounting requirements.
• Available with process connections such as 1/2 in. NPT threads for secure installation in pipes or vessels.

When to Replace

• Inaccurate, fluctuating, or erratic temperature readings.
• Controller displays an open circuit, short circuit, or sensor error message.
• Visible physical damage to the probe sheath, transition, or cable insulation.
• No response to changes in temperature.

Installation Tips

• Ensure the measurement device is configured for a 3-wire Pt100 RTD input.
• For liquid or gas measurement, ensure the sensing portion of the probe is fully immersed in the flow.
• Do not bend the cable sharply at the probe transition point.

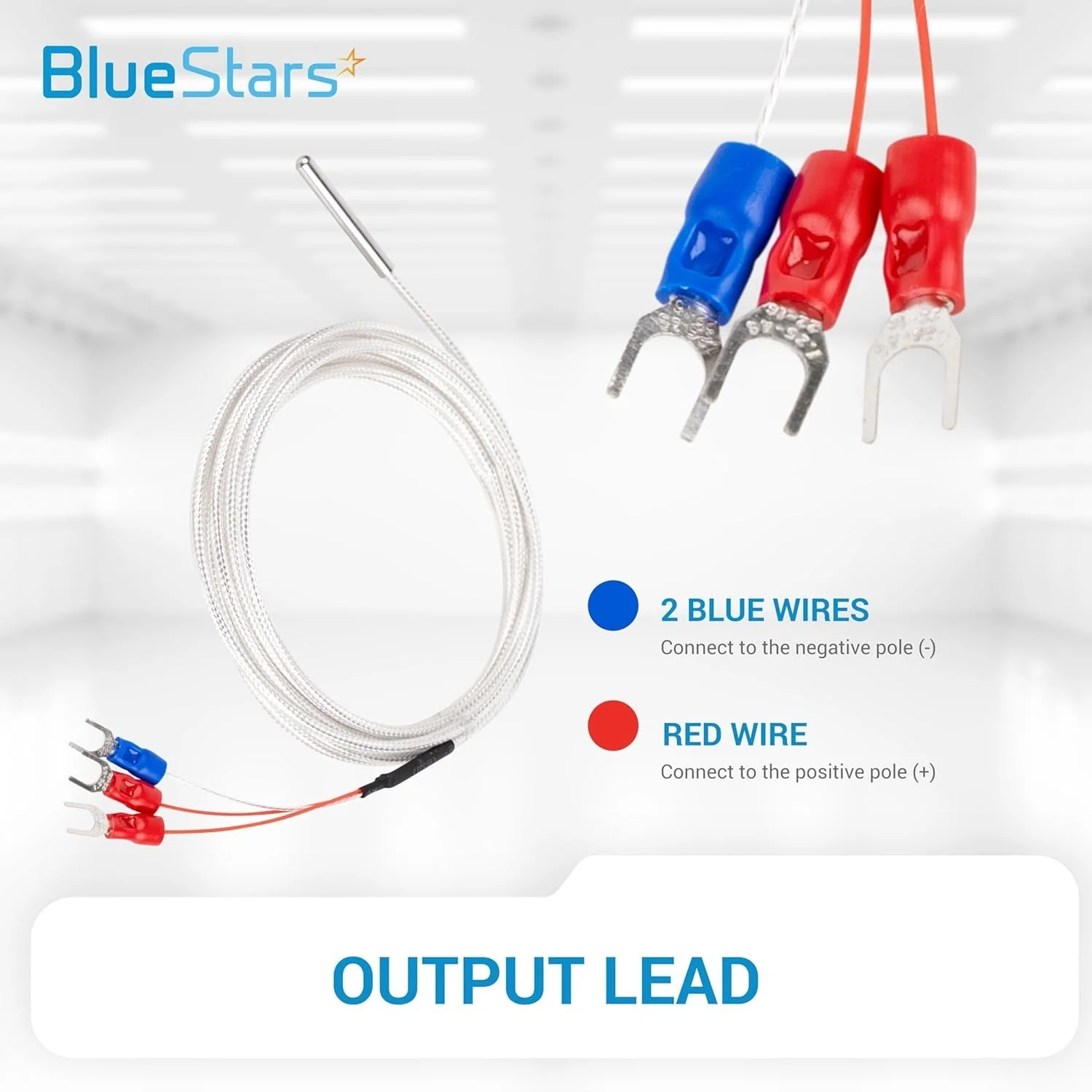

• Verify wire connections are correct per the controller's documentation (typically two common wires and one sense wire).
• Use a thermowell for applications in high-pressure or corrosive environments.
