[Lifetime Warranty] ADE3LRGS171TW01 ADE3SRGS175TW01 ADE3SRGS173TW01 ADE4BRGS176TW01 ADE9RYS177TW01 Dryer Heating Element Kit for Speed Queen Dryers - Replaces 503978 964P3 61927 2304695, Include Thermal Fuse

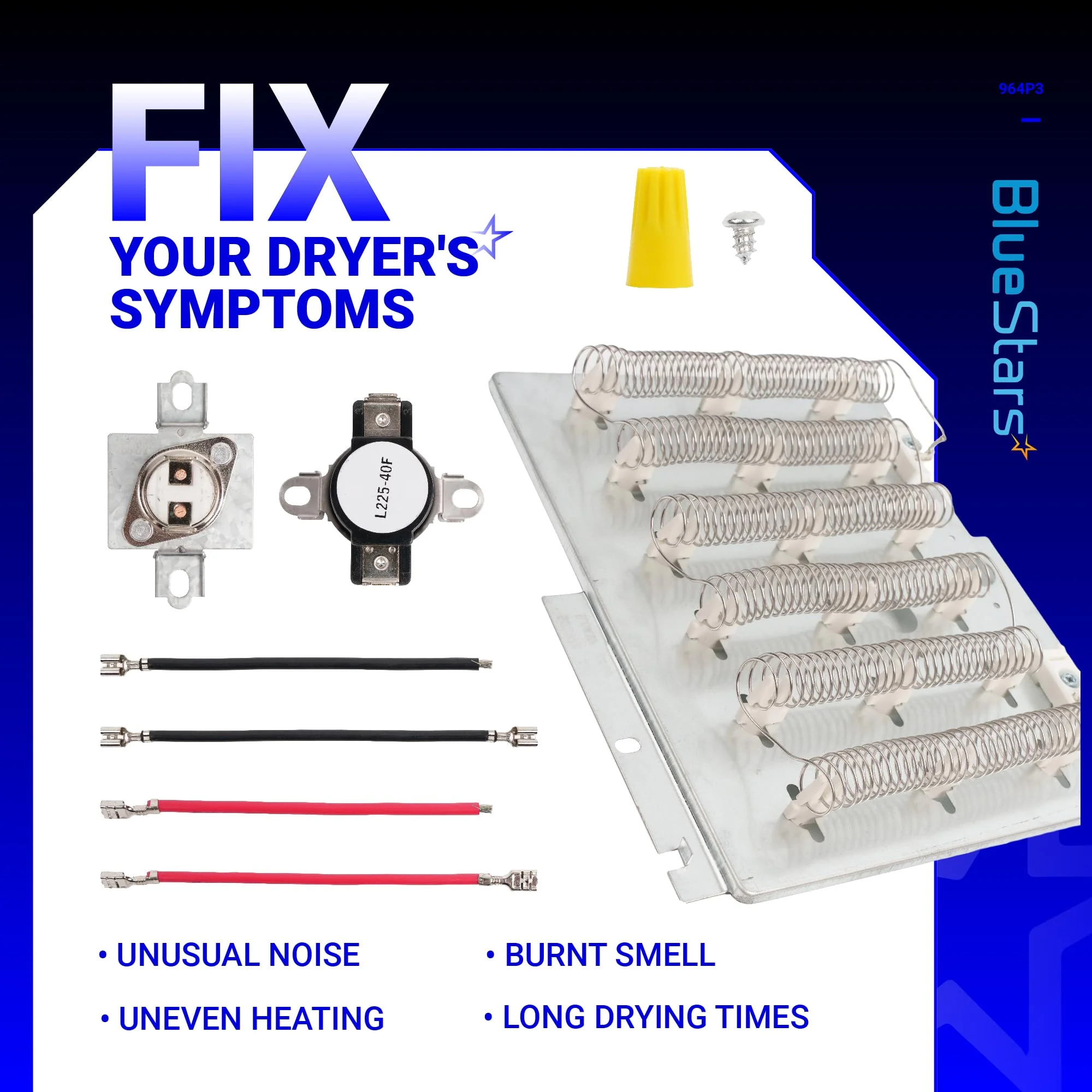

503978 Dryer Heating Element & Thermal Fuse Kit

Key Features

• High-Output Nickel-Chrome Coils: Engineered with premium nickel-chromium alloy wire designed to reach optimal drying temperatures rapidly while maintaining high resistance to thermal fatigue and "sagging" over long cycles.
• Heavy-Duty Galvanized Housing: The heating element is encased in a corrosion-resistant, galvanized steel box that provides structural integrity and reflects radiant heat directly into the drum for maximum efficiency.
• Integrated Safety Thermal Fuse: Includes a calibrated thermal fuse designed to act as a "one-time" safety link, cutting power to the heating circuit if internal temperatures exceed safe limits, preventing fire hazards.
• 5100W / 240V Industrial Specification: Rated at 5100 Watts to match the high-performance standards of Speed Queen appliances, ensuring consistent "commercial-grade" drying times in a residential environment.

Replaces / Cross-Reference Part Numbers

• Primary Part: 503978, 503978P.
• Legacy Cross-Reference: 964P3, 61927, 2304695, 510329P.

Compatibility & Fitment

This heating element kit is the primary heat source for many modern Speed Queen and Alliance Laundry Systems dryers. Key compatible models include:

• Speed Queen ADE Series: Fits ADE3LRGS171TW01, ADE3SRGS175TW01, ADE3SRGS173TW01, ADE4BRGS176TW01, and ADE9RYS177TW01.
• Speed Queen Mechanical & Electronic: Compatible with various LDEM, LDE, and ADEM series front-control and rear-control dryers.
• Huebsch & Alliance: Direct fit for dozens of commercial-grade residential units produced by Alliance Laundry Systems.
• Note: This is a 240-Volt Electric heating element. It is not compatible with gas dryers. It is typically located behind the Back Panel of the dryer cabinet.

When to Replace

• Dryer Runs but No Heat: The most common symptom; the heating coil has developed a "break" or the thermal fuse has blown, preventing the air from warming up.
• Dryer Takes Multiple Cycles: If the coil is partially shorted or damaged, it may not reach full wattage, significantly extending drying times.
• Dryer Won't Start: On many Speed Queen models, a blown thermal fuse (included in this kit) will prevent the motor from even turning on as a safety precaution.
• Visible Coil Break: Upon inspection of the heater box, you can see a physical gap or "melted" section in the spiral heating wire.
• Continuity Failure: Testing with a multimeter shows "Open" (no continuity) across the two main terminals of the heating element or the thermal fuse.

Installation Tips

• Safety First: **CRITICAL:** You MUST unplug the dryer or turn off the 240V double-pole circuit breaker. High-voltage electricity is present at the heater terminals.
• Vacuum the Heater Box: Before installing the new 503978, use a vacuum to remove all lint from the internal ducting. Lint buildup is the #1 cause of heating element and thermal fuse failure.
• Clean the Vents: **PRO TIP:** If your heating element failed, your house vent is likely clogged. Check the exterior vent hood and the entire duct run to ensure maximum airflow, or your new element may burn out quickly.
• Terminal Inspection: Check the female wire connectors on your dryer's harness. If they look burnt or loose, they must be cut off and replaced with high-temperature terminals to prevent arcing.
• Handle with Care: Do not stretch or compress the new coils during installation. Ensure the coil is not touching the metal housing at any point, as this will cause an immediate short circuit.
