[Lifetime Warranty] DG94-01012A Gas Oven Igniter - Compatible with Samsung Oven Range Stove (NX58H95 NX58H99 NX58H NX58J NX58K NX58M NX58N series) - Replaces 4011538 AP5967723 PS5967723 EAP11720750

DG94-01012A Gas Oven Igniter

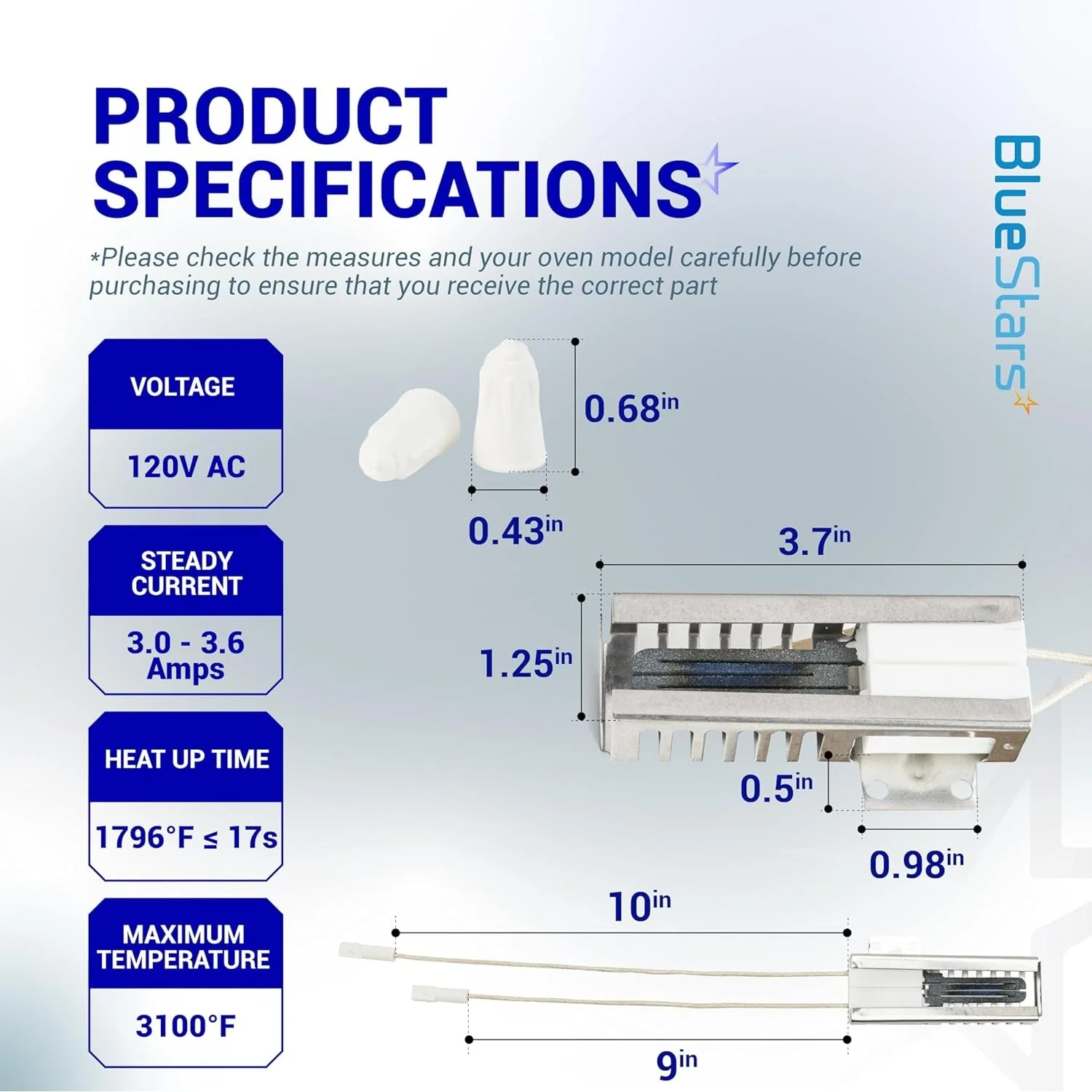

Key Features

• Function: Ignites gas for the bake burner in gas ranges.

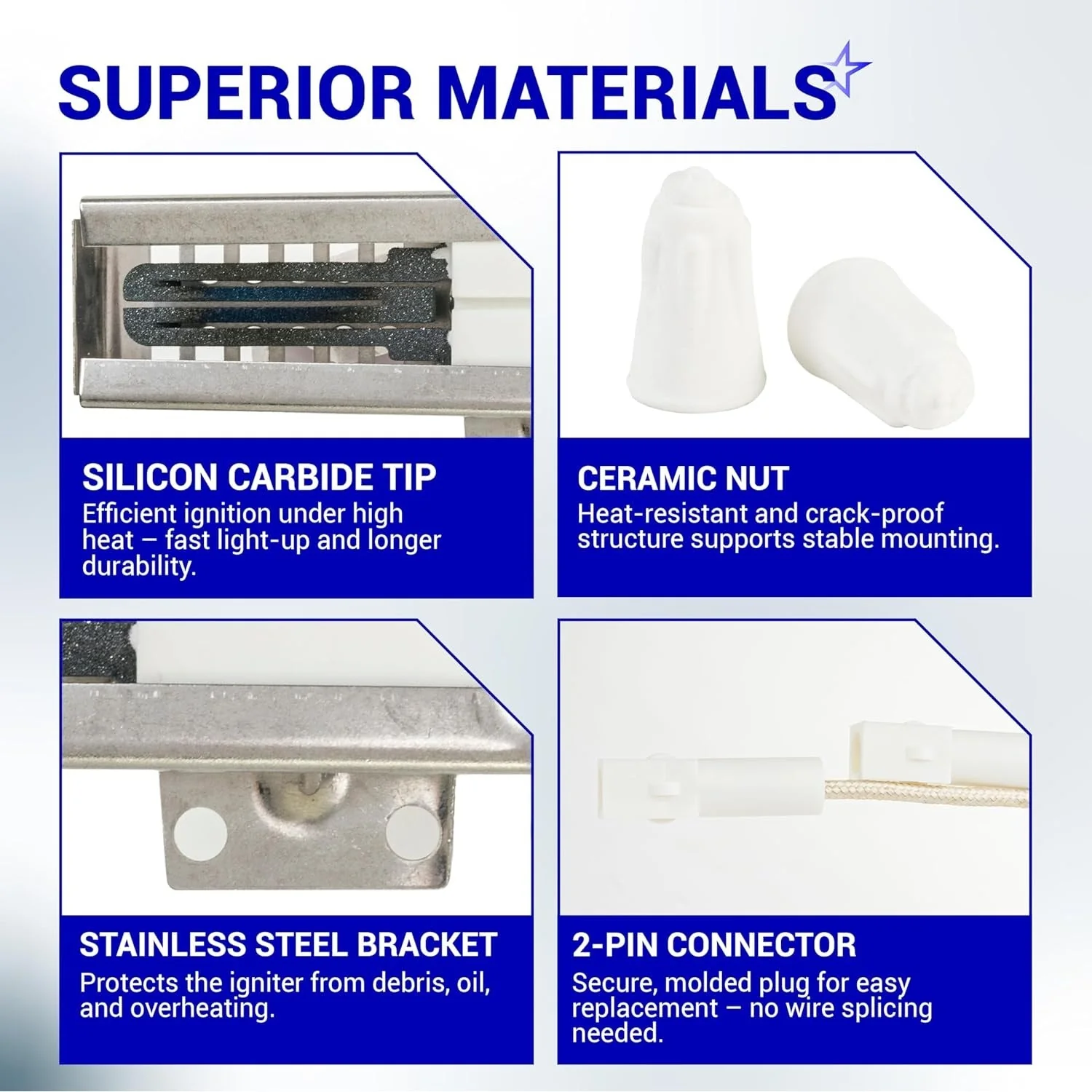

• Type: Hot surface igniter assembly.
• Steady Current: 3.0 - 3.6 Amps
• Voltage: 120V AC
• Maximum Temperature: 3100°F
• Element Length: 3.7 inches
• Wire Length: 9.5 inches

Replaces / Cross-Reference Part Numbers

• AP5967723
• PS11720750
• 4011538
• EAP11720750
• PD00033253
• DS039KX
• ASM105359

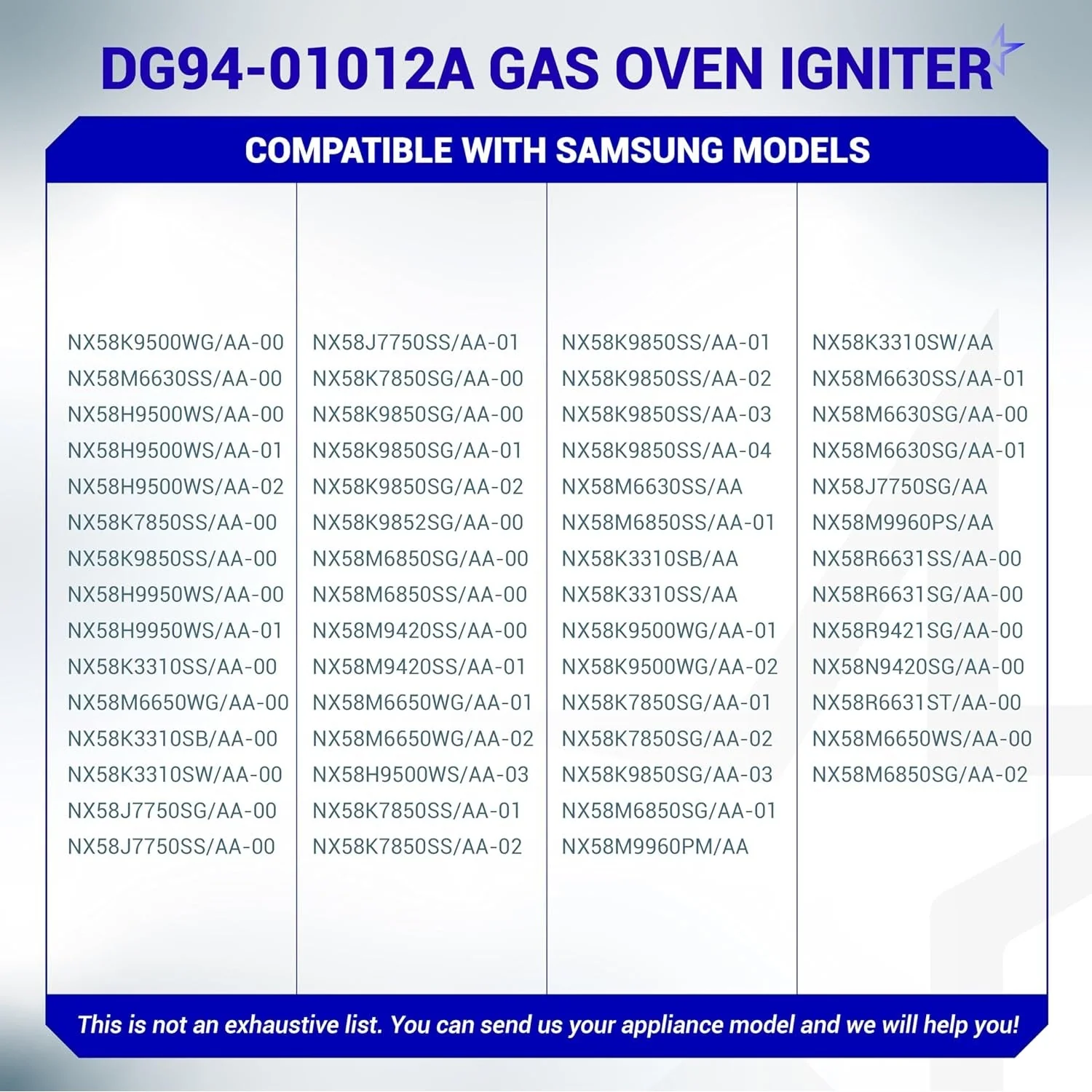

Compatibility & Fitment

• Primary Brand: Samsung
• Fits select Samsung range models, including series such as NX58H, NX58J, NX58K, and NX58M.
• Confirm fitment by verifying your appliance's model number before ordering.

When to Replace

• Oven fails to heat or light.
• Oven heats slowly or to an incorrect temperature.
• Igniter glows for an extended period but burner does not light.
• Igniter does not glow at all.
• A distinct smell of gas is present without ignition after the bake cycle starts.

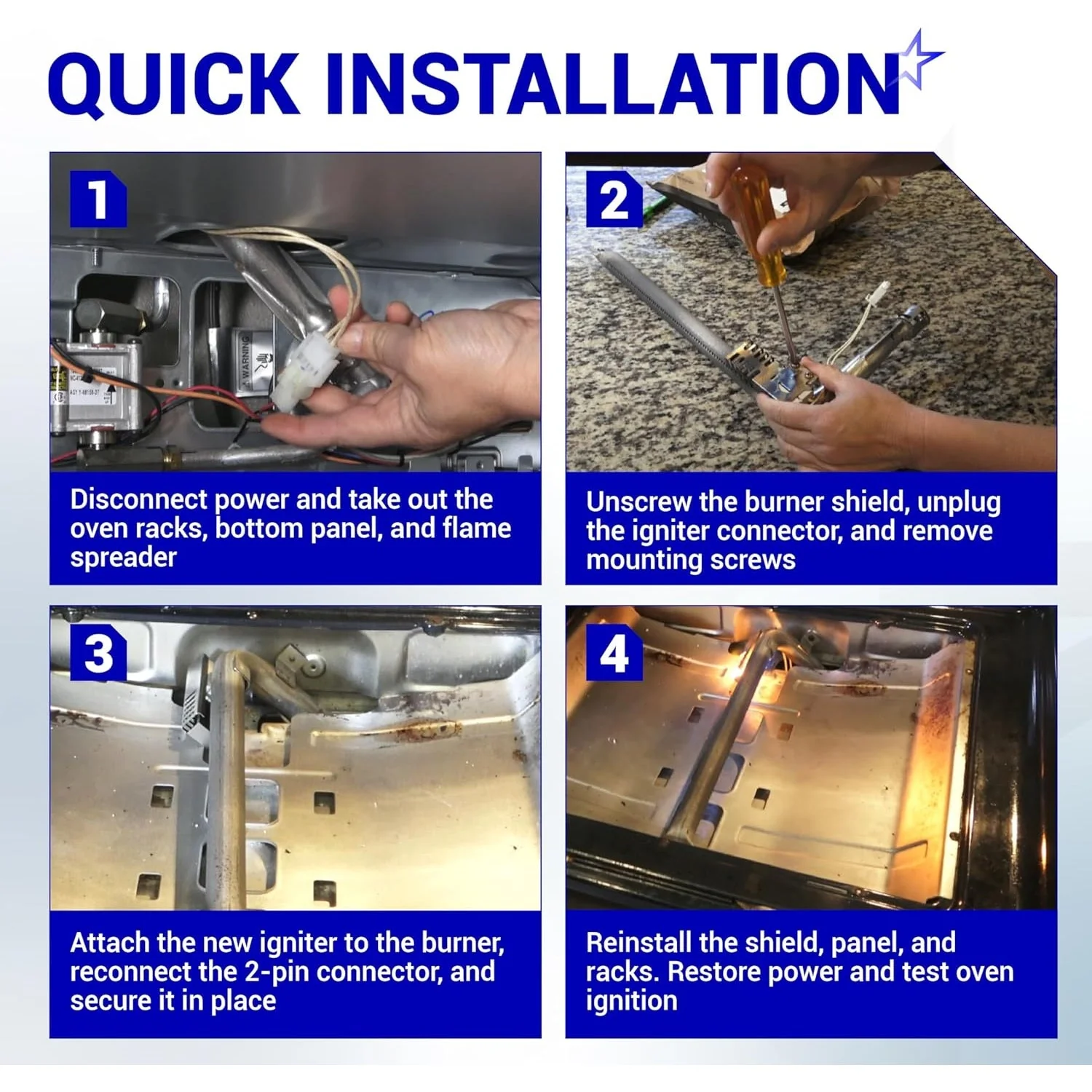

Installation Tips

• Disconnect the range from power and shut off the gas supply before beginning repairs.
• Handle the new igniter with care; the element is fragile. Avoid touching the black carbide material with bare hands.
• Verify that the mounting bracket and wire connector match the original part.
• Ensure wire connections are secure after installation.
