[Lifetime Warranty] Dryer Heating Element Kit for Samsung DV42H5000 DV40J3000 DV45H7000 DV400HDWR DVE50M7450 DV42H5200 DV42H5200EP DVE50R5400 DVE50R5200 DV220AEW

DC47-00019A Dryer Heating Element & Complete Sensor Safety Kit for Samsung

Key Features

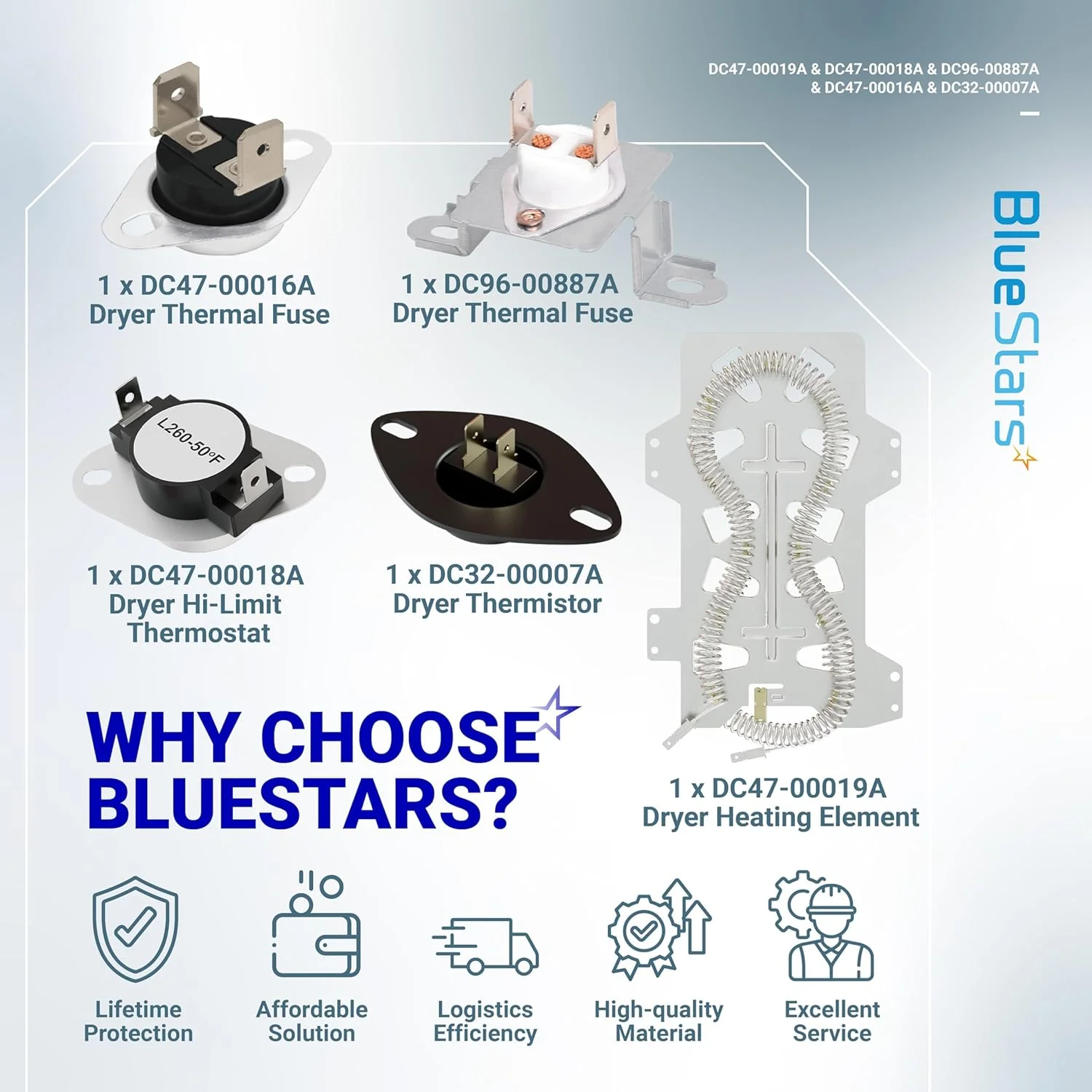

• Full Kit Set: 1 x DC47-00019A Dryer Heating Element, 1 x DC47-00018A Dryer Thermostat, 1 x DC96-00887A Dryer Thermal Fuse (Bracket), 1 x DC47-00016A Dryer Thermal Fuse (In-Line), 1 x DC32-00007A Dryer Thermistor.

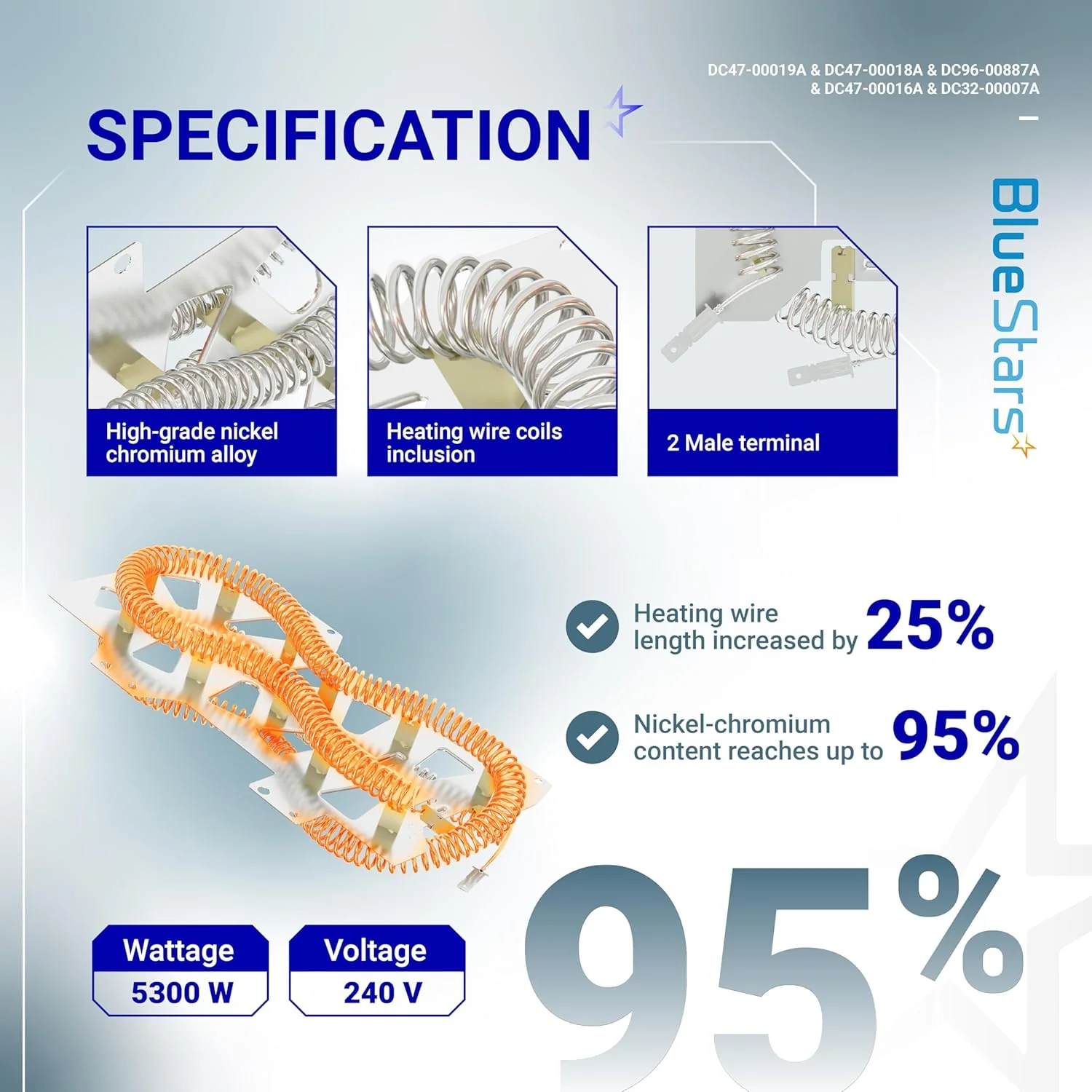

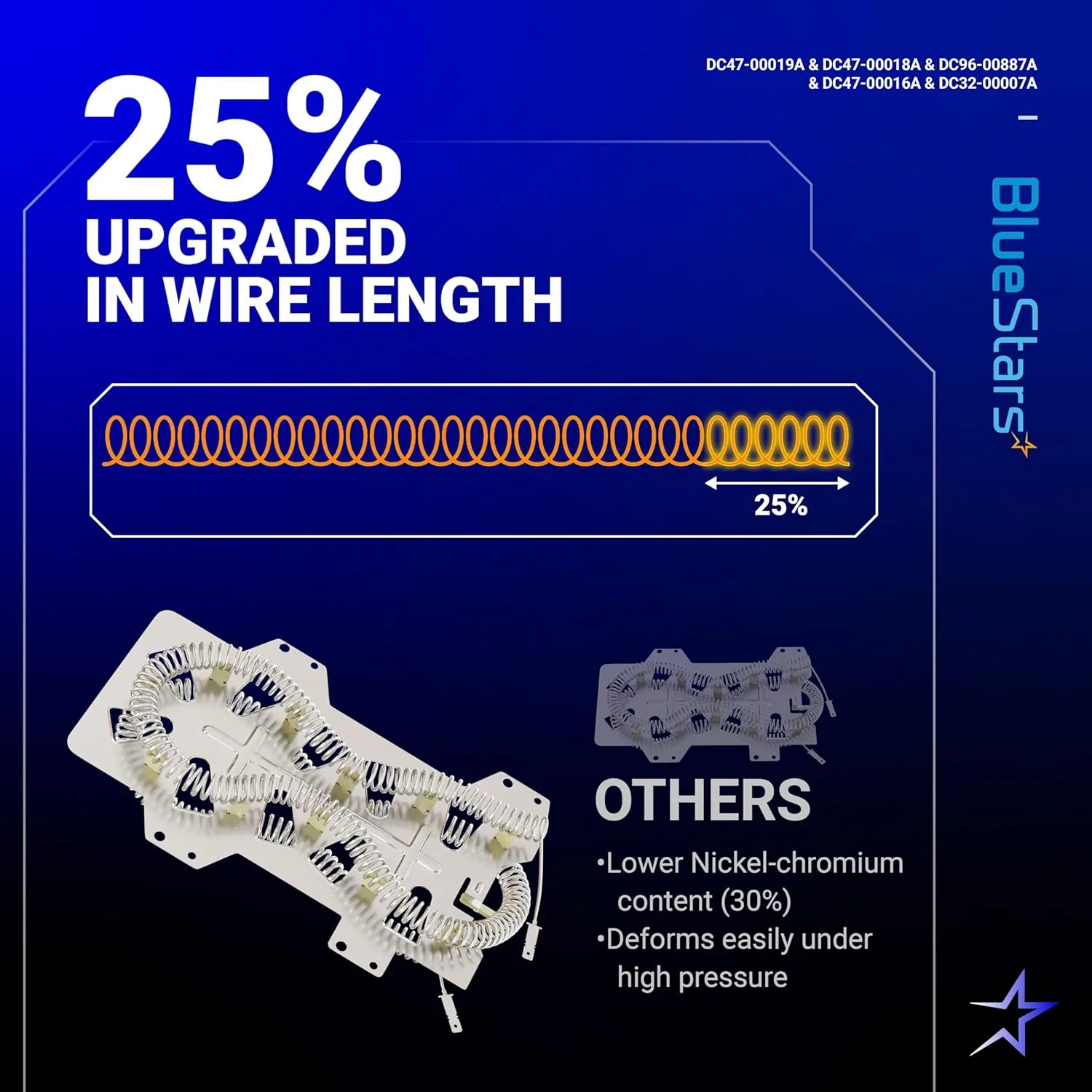

• High-Efficiency Ni-Cr Coil: The DC47-00019A element features an upgraded Nickel-Chromium alloy coil with 25% more surface area for faster heat-up times and increased thermal durability.

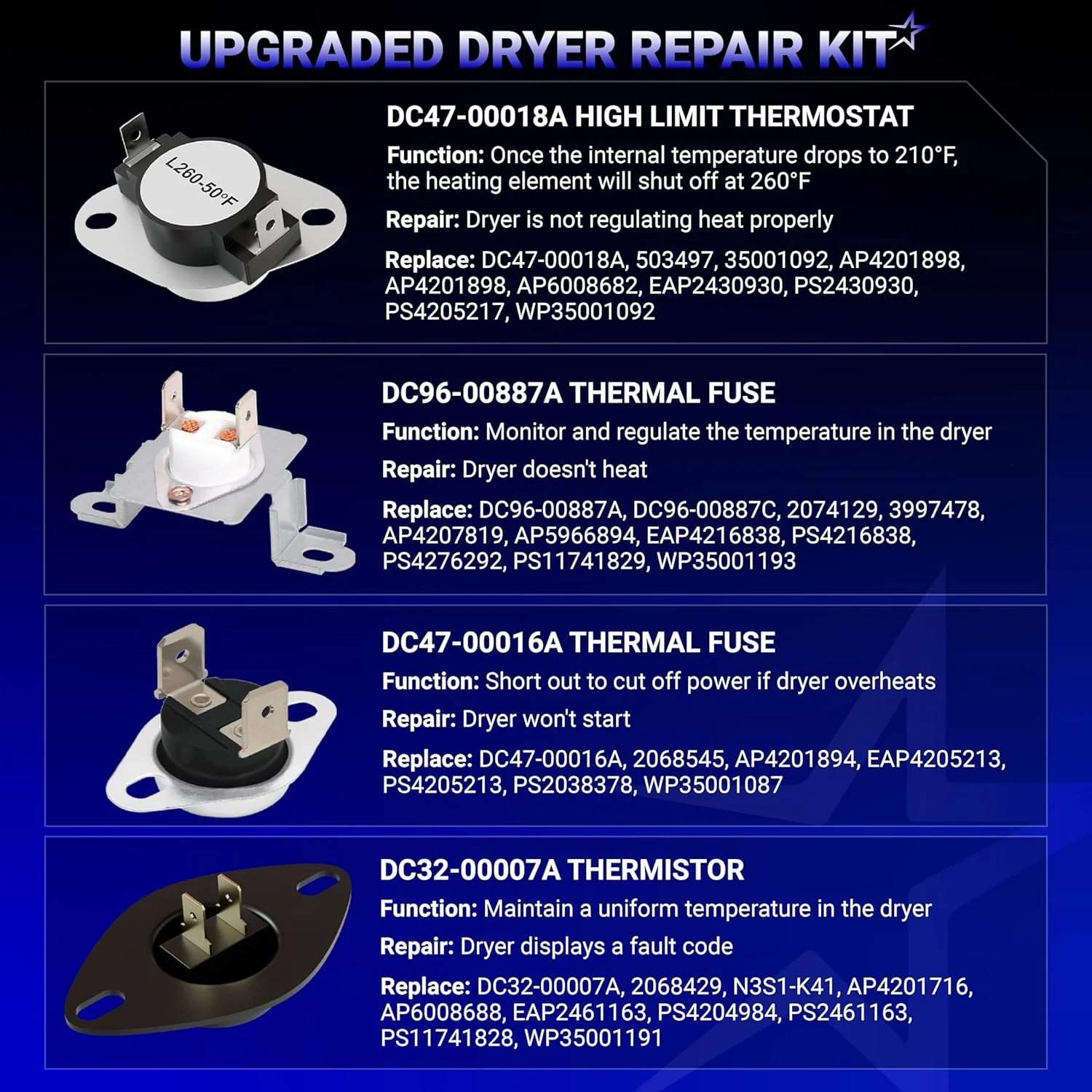

• Comprehensive 5-Piece Overhaul: This all-in-one kit provides a total system refresh, including the heating element, high-limit thermostat, two distinct safety fuses, and the critical temperature-sensing thermistor.
• DC32-00007A Precision Thermistor: Includes the high-accuracy temperature sensor that monitors internal drum heat and communicates directly with the control board to prevent over-drying and fabric damage.
• Quad-Layer Thermal Protection: Features a multi-stage safety net with the DC47-00018A thermostat and dual thermal fuses (DC96-00887A and DC47-00016A) to protect against lint-fire hazards.
• Enhanced Ceramic Insulators: Built with high-density ceramic standoffs that prevent the heating coil from sagging or shorting against the metal heater housing during high-heat cycles.

Replaces / Cross-Reference Part Numbers

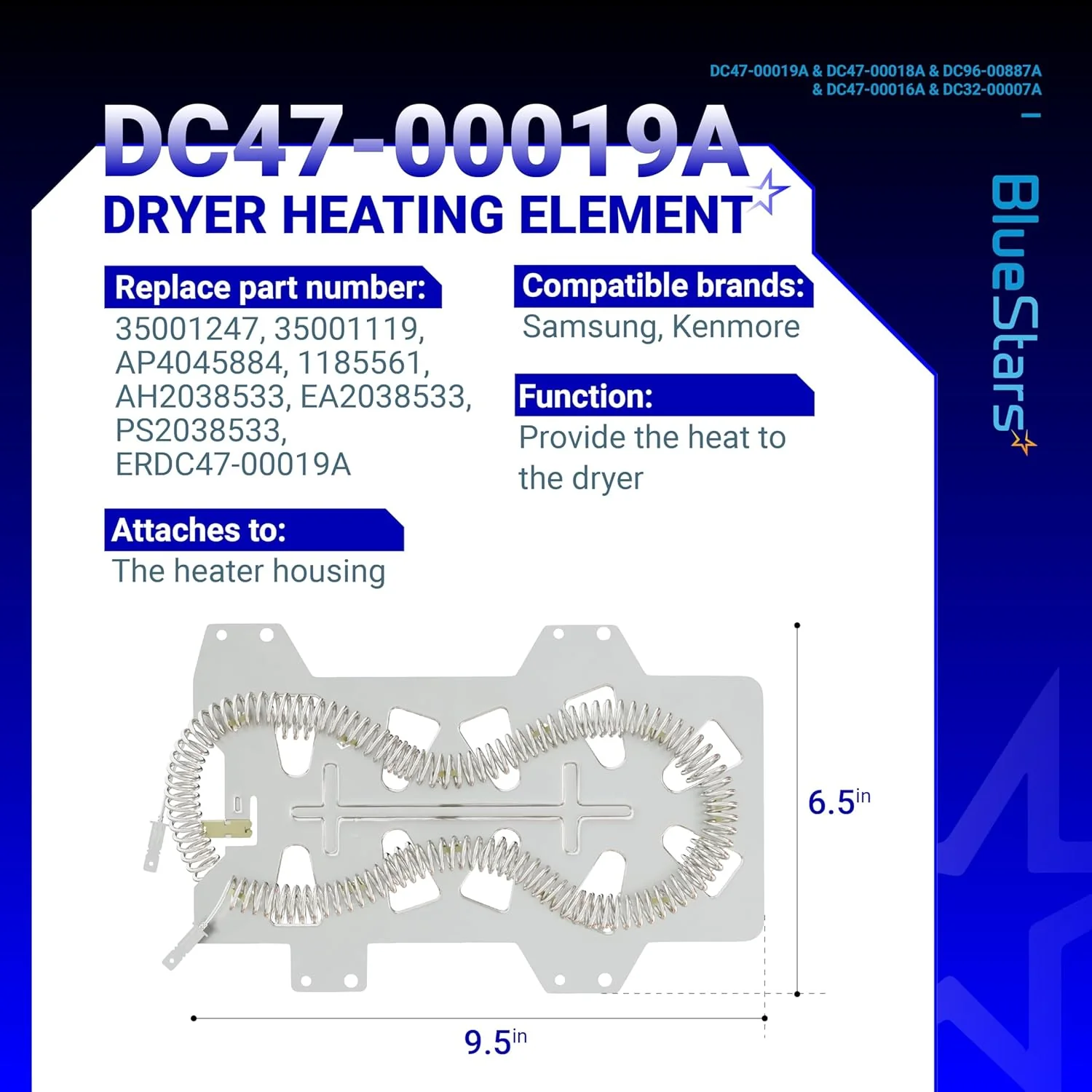

• Heating Element (DC47-00019A): AP4045884, PS2038533, 35001247, 35001119, 1185561, AH2038533, EA2038533, ERDC47-00019A, 2068550, DE0019A
• High Limit Thermostat (DC47-00018A): AP4201898, PS4205217, WP35001092, 35001092, 1122485, AP4201899, PS2038383, EAP4205217, PD00002016, DE0018A
• Dryer Thermal Fuse (Bracket) (DC96-00887A): AP4207819, PS2038484, DC96-00887C, AP5966894, EAP2038484, 2068546, 1122481, PD00027514, L0887A, ERDC96-00887A
• Thermal Fuse (In-Line) (DC47-00016A): AP4201894, PS4205213, WP35001087, 35001087, 2068545, 1122480, L0016A, EAP4205213, EAP11741821, PD00005341
• Thermistor (DC32-00007A): AP4201716, PS4204984, 35001191, DE0007A, N3S1-K41, 2068429, AH2038482, EAP2461163, PS2461163, AP6008688

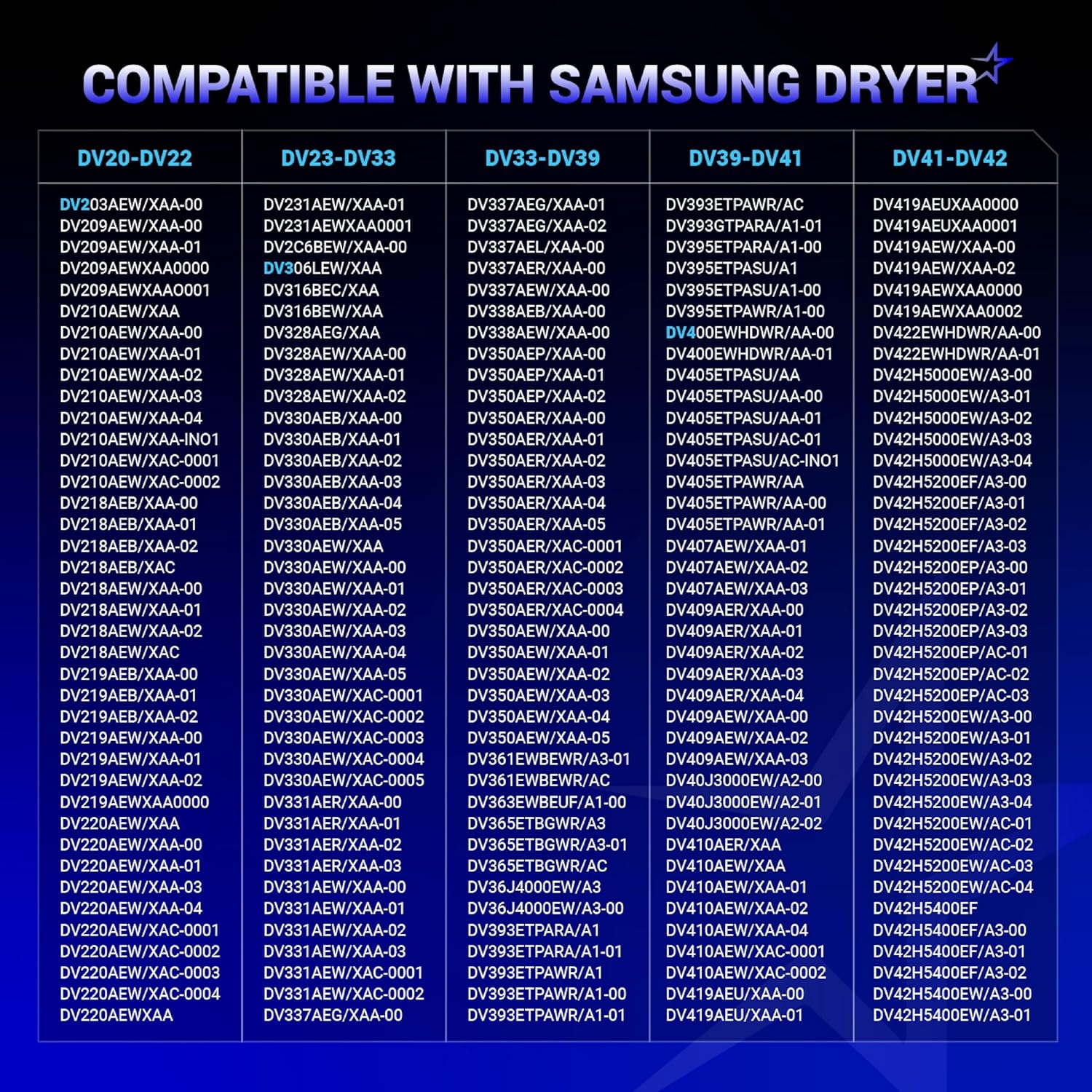

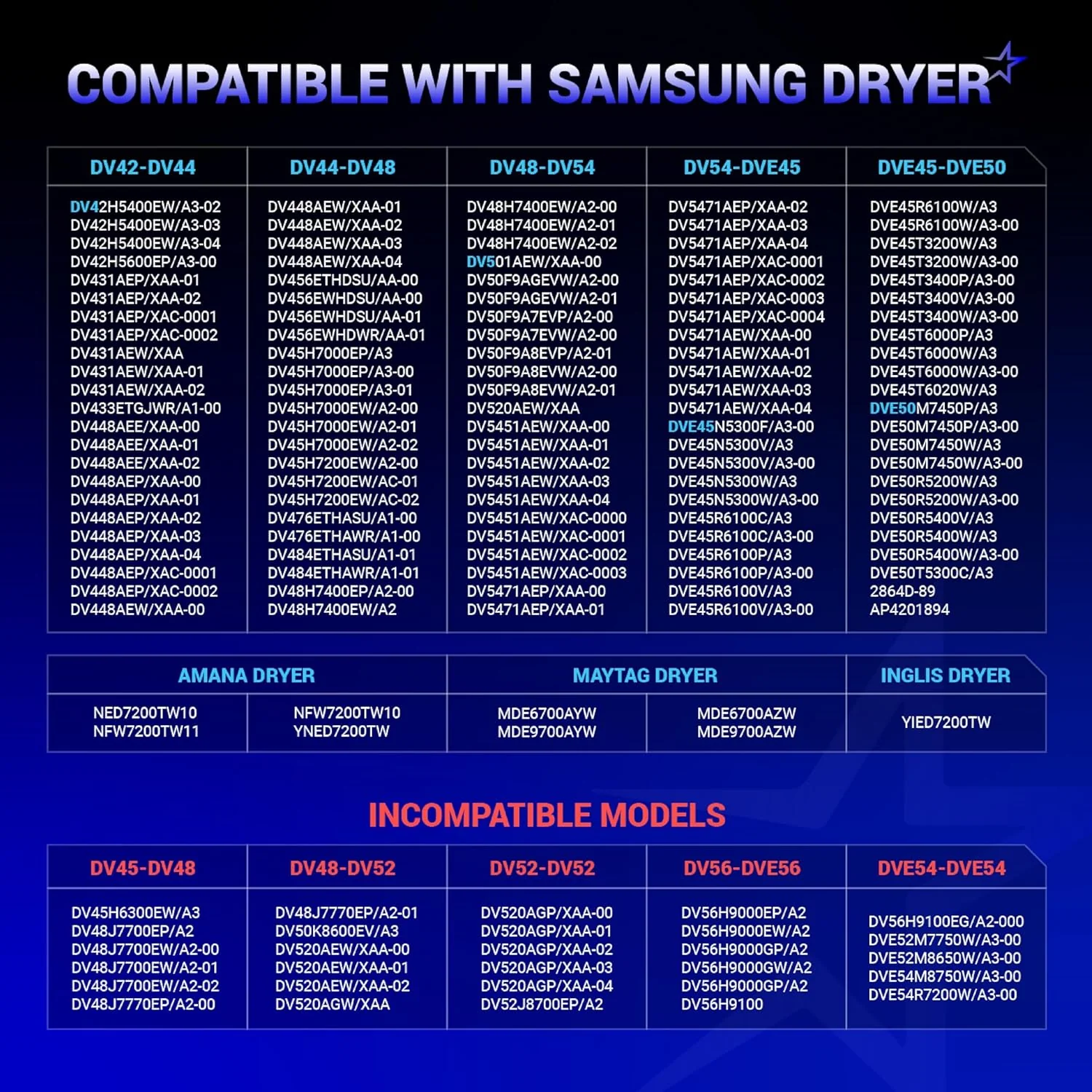

Compatibility & Fitment

This kit is the primary heating and sensor repair solution for Samsung high-capacity electric dryers. Key compatible models include:

• Samsung DVE Series: DVE50R5200W/A3, DVE50R5400V/A3, DVE45R6100W, DVE45R6100C.
• Samsung DV42/DV45 Series: DV42H5200EP/A3, DV42H5000EW/A3, DV42H5200EW/A3, DV42H5200EF/A3, DV45H7000EW/A2.
• Samsung DV40 Series: DV40J3000EW/A2, DV400EWHDWR/AA.
• Note: Specifically for Electric dryers. If you have a gas model (DLG), this heating element will not be compatible.

When to Replace

• No Heat / Cold Drum: The dryer spins normally but the air remains cold, usually indicating a snapped heating coil or a blown thermal fuse.
• "HE" Error Code: Modern Samsung dryers often display an "HE" or "HC" error code when the thermistor (DC32-00007A) or heating element fails.
• Dryer Shuts Down Mid-Cycle: One of the safety fuses has tripped due to excessive internal heat, often caused by a restricted exhaust vent.
• Inaccurate Drying Times: A faulty thermistor can cause the dryer to run for hours without stopping or shut off while clothes are still damp.
• Tripped Circuit Breaker: A grounded heating element can cause the dryer to trip your home’s 240V circuit breaker immediately when the heat cycle starts.

Installation Tips

• Safety First: You MUST unplug the dryer from the 240V power outlet before beginning. Testing a live heating element is extremely dangerous.
• The Blower Housing: The thermistor and the DC47-00016A thermal fuse are located on the blower housing, while the other components are located on the heater box. Be prepared to access both areas.
• Clean the Vent Line: Before installing the new element, professionally clean your dryer's exhaust duct. 90% of heating failures are caused by lint buildup restricting airflow.
• Vacuum the Cabinet: While the dryer is open, vacuum out all accumulated lint from the bottom of the cabinet to prevent a fire hazard for your new parts.
• Check the Terminals: Ensure the wire connectors are tight. Loose or corroded spade connectors create high resistance, which can melt the new thermostat or thermal fuse.
