[Lifetime Warranty] 46-6560 Fuel Tank Grommet Bushing - Compatible with MTD Troy-Bilt 735-0149 935-0149 104047 46-6560 Tecumseh Craftsman Generator Lawn Mower 33679 25 313 01-S - Pack of 6
46-6560 Fuel Tank Grommet Bushing - Pack of 6
Key Features
- Package includes six (6) fuel tank grommet bushings.
- Designed to fit a 33/64 inch (13mm) fuel tank hole.
- Creates a secure seal to prevent fuel leaks at the tank exit point.

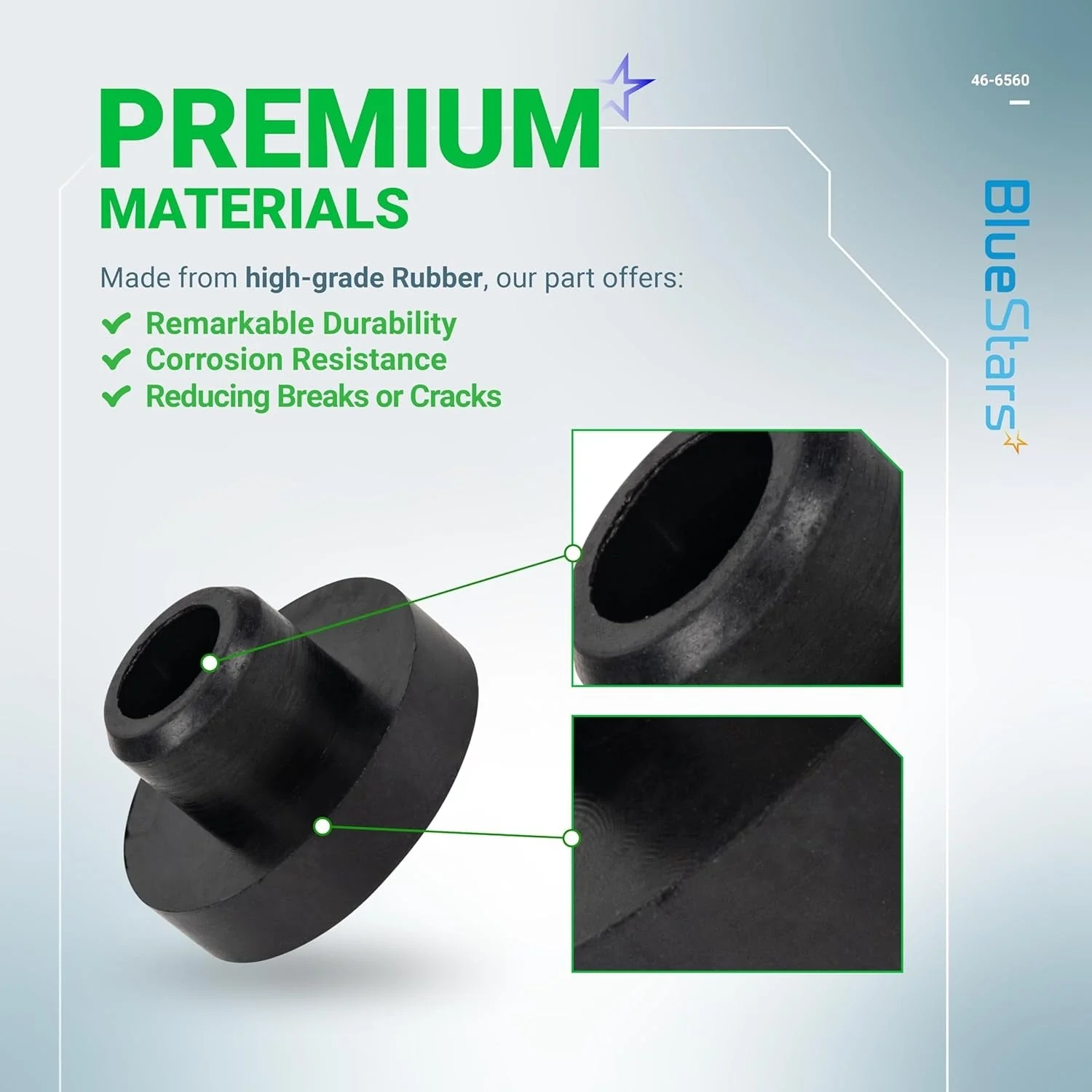

- Constructed from durable, fuel-resistant rubber material.
- Note: Not intended for use with fuel containing more than 10% ethanol.

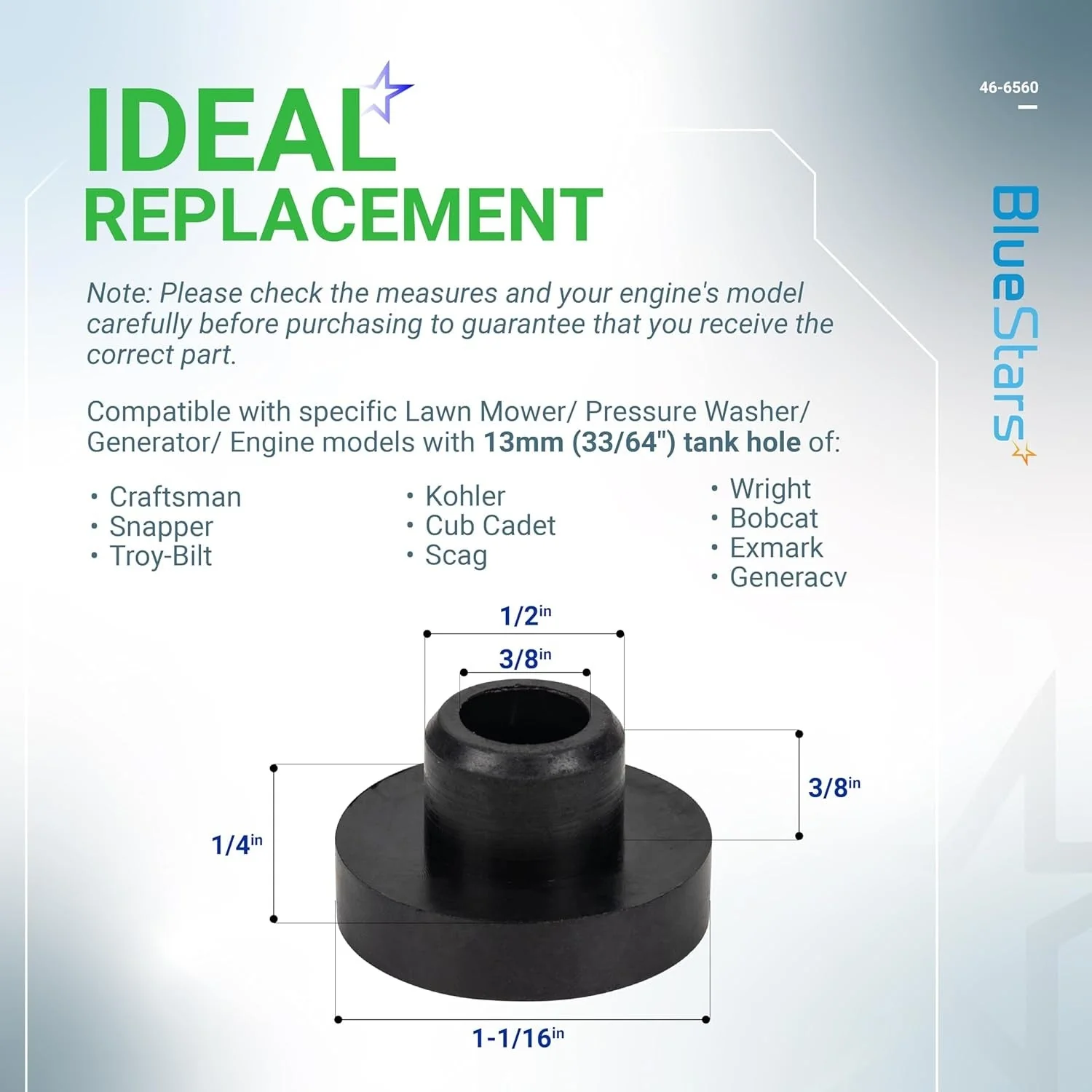

- Approximate Dimensions: 3/8" I.D., 1-1/16" O.D.

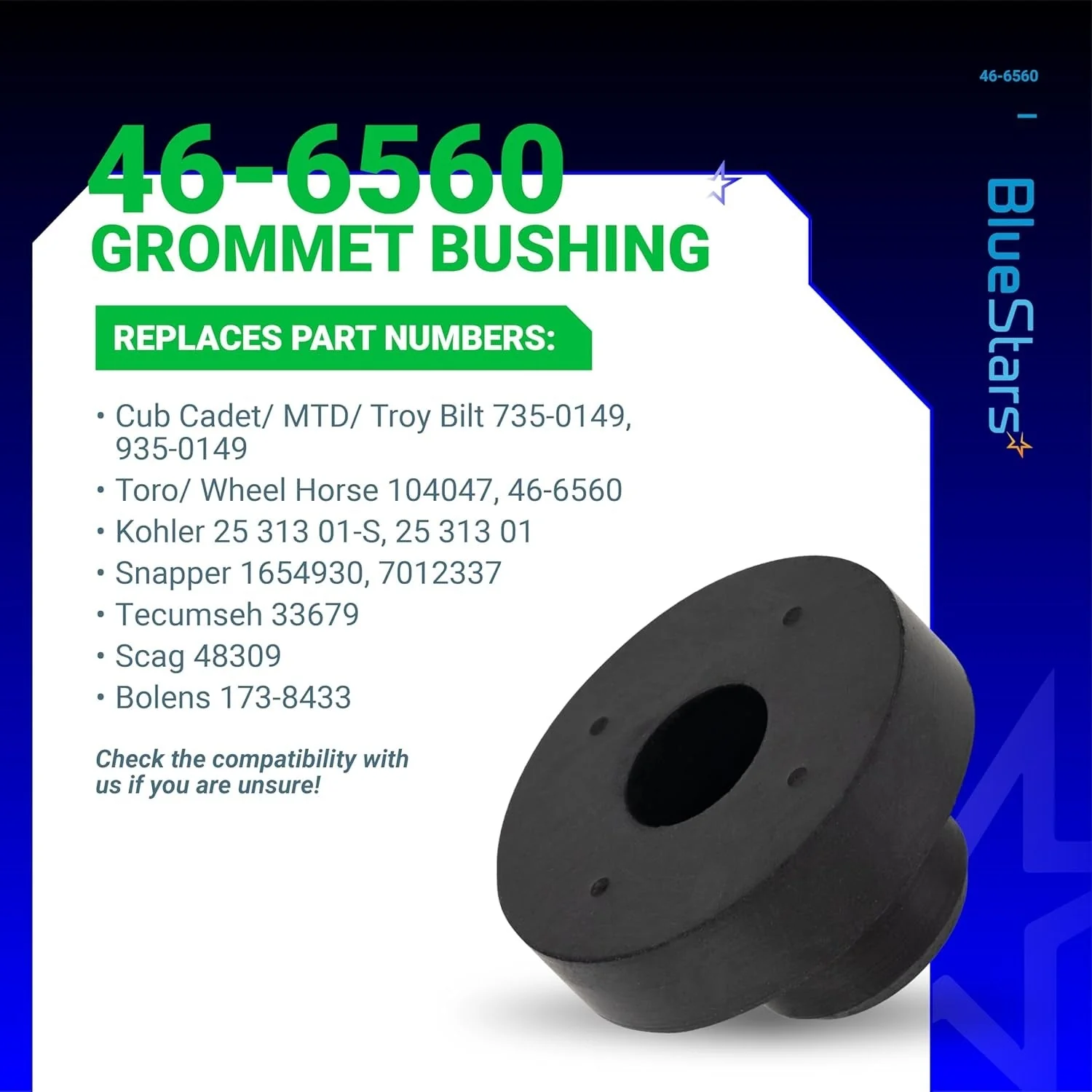

Replaces / Cross-Reference Part Numbers
- Toro / Wheel Horse: 46-6560, 104047
- MTD / Troy-Bilt / Cub Cadet: 735-0149, 935-0149
- Kohler: 25 313 01, 25 313 01-S
- Exmark: 1-513645
- Snapper: 1654930
- Tecumseh: 33679
- Generac: 25313

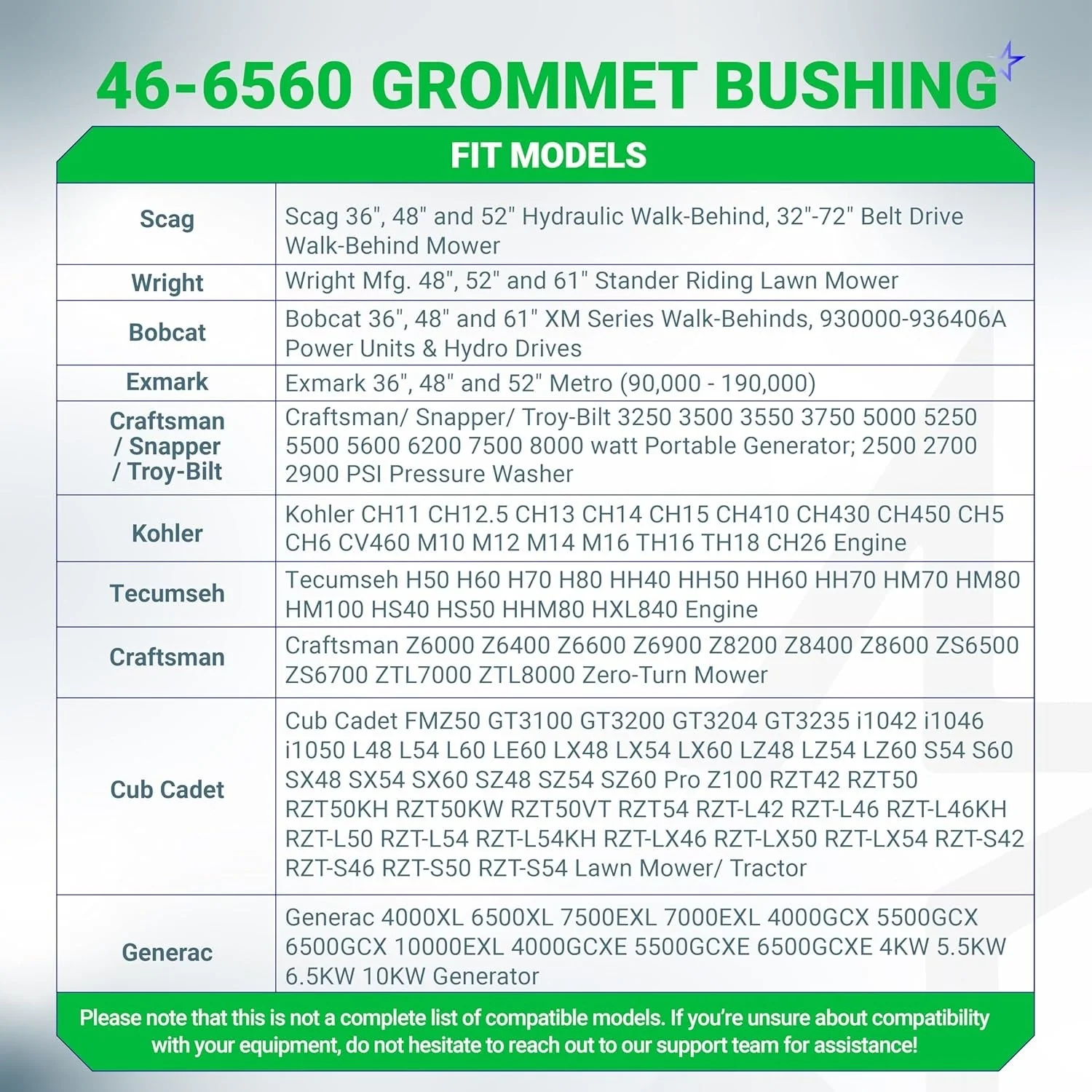

Compatibility & Fitment
- Fits a wide range of outdoor power equipment from brands including MTD, Troy-Bilt, Tecumseh, Craftsman, Kohler, and Toro.
- Used on lawn mowers, generators, tillers, and other small engine equipment requiring a 33/64" tank grommet.

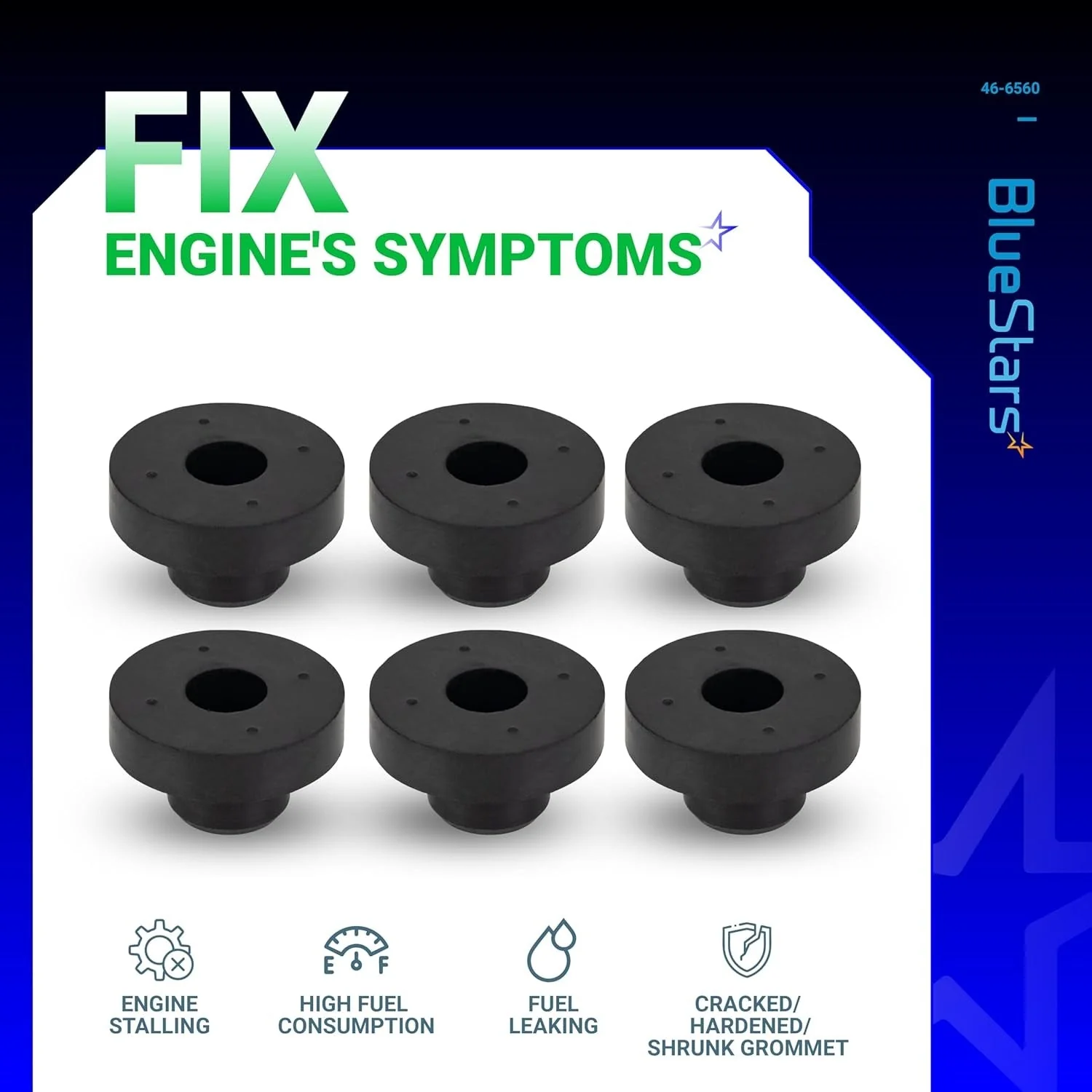

When to Replace
- Existing grommet is cracked, brittle, or deformed.
- Fuel is leaking or seeping from the base of the fuel line where it enters the tank.
- The grommet is loose and no longer provides a snug fit for the fuel line.
- Performing fuel system maintenance or replacing fuel lines.
Installation Tips
- Drain all fuel from the tank before beginning work.
- Thoroughly clean the tank surface around the hole to remove any dirt or residue.
- Apply a light lubricant, such as oil or grease, to the grommet to facilitate installation.
- Press the new grommet evenly into the hole until it is fully and securely seated.
- After installation and reassembly, check for leaks before operating the equipment.
$4.94
Original: $14.12
-65%[Lifetime Warranty] 46-6560 Fuel Tank Grommet Bushing - Compatible with MTD Troy-Bilt 735-0149 935-0149 104047 46-6560 Tecumseh Craftsman Generator Lawn Mower 33679 25 313 01-S - Pack of 6—
$14.12
$4.94Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
46-6560 Fuel Tank Grommet Bushing - Pack of 6
Key Features
- Package includes six (6) fuel tank grommet bushings.
- Designed to fit a 33/64 inch (13mm) fuel tank hole.
- Creates a secure seal to prevent fuel leaks at the tank exit point.
- Constructed from durable, fuel-resistant rubber material.
- Note: Not intended for use with fuel containing more than 10% ethanol.
- Approximate Dimensions: 3/8" I.D., 1-1/16" O.D.
Replaces / Cross-Reference Part Numbers
- Toro / Wheel Horse: 46-6560, 104047
- MTD / Troy-Bilt / Cub Cadet: 735-0149, 935-0149
- Kohler: 25 313 01, 25 313 01-S
- Exmark: 1-513645
- Snapper: 1654930
- Tecumseh: 33679
- Generac: 25313
Compatibility & Fitment
- Fits a wide range of outdoor power equipment from brands including MTD, Troy-Bilt, Tecumseh, Craftsman, Kohler, and Toro.
- Used on lawn mowers, generators, tillers, and other small engine equipment requiring a 33/64" tank grommet.
When to Replace
- Existing grommet is cracked, brittle, or deformed.
- Fuel is leaking or seeping from the base of the fuel line where it enters the tank.
- The grommet is loose and no longer provides a snug fit for the fuel line.
- Performing fuel system maintenance or replacing fuel lines.
Installation Tips
- Drain all fuel from the tank before beginning work.
- Thoroughly clean the tank surface around the hole to remove any dirt or residue.
- Apply a light lubricant, such as oil or grease, to the grommet to facilitate installation.
- Press the new grommet evenly into the hole until it is fully and securely seated.
- After installation and reassembly, check for leaks before operating the equipment.
