[Lifetime Warranty] 316489400 Range Oven Igniter for Frigidaire Kenmore Electrolux Crosley Range Oven - Replaces 316428500 316428501 5304462661 7316489400 1197384 AP3963540 PS1528534 EAP1528534 and more
316489400 Range Oven Igniter Replacement

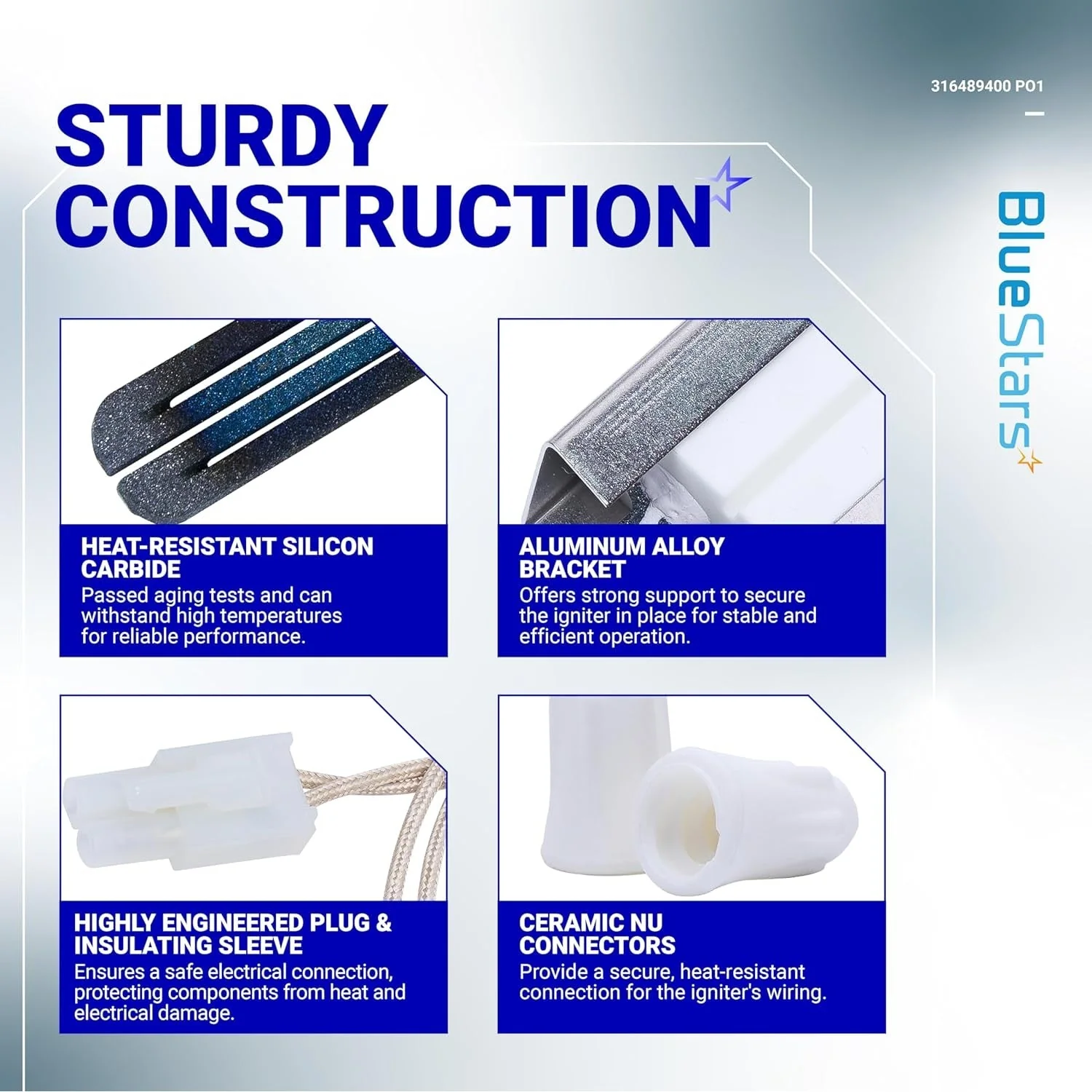

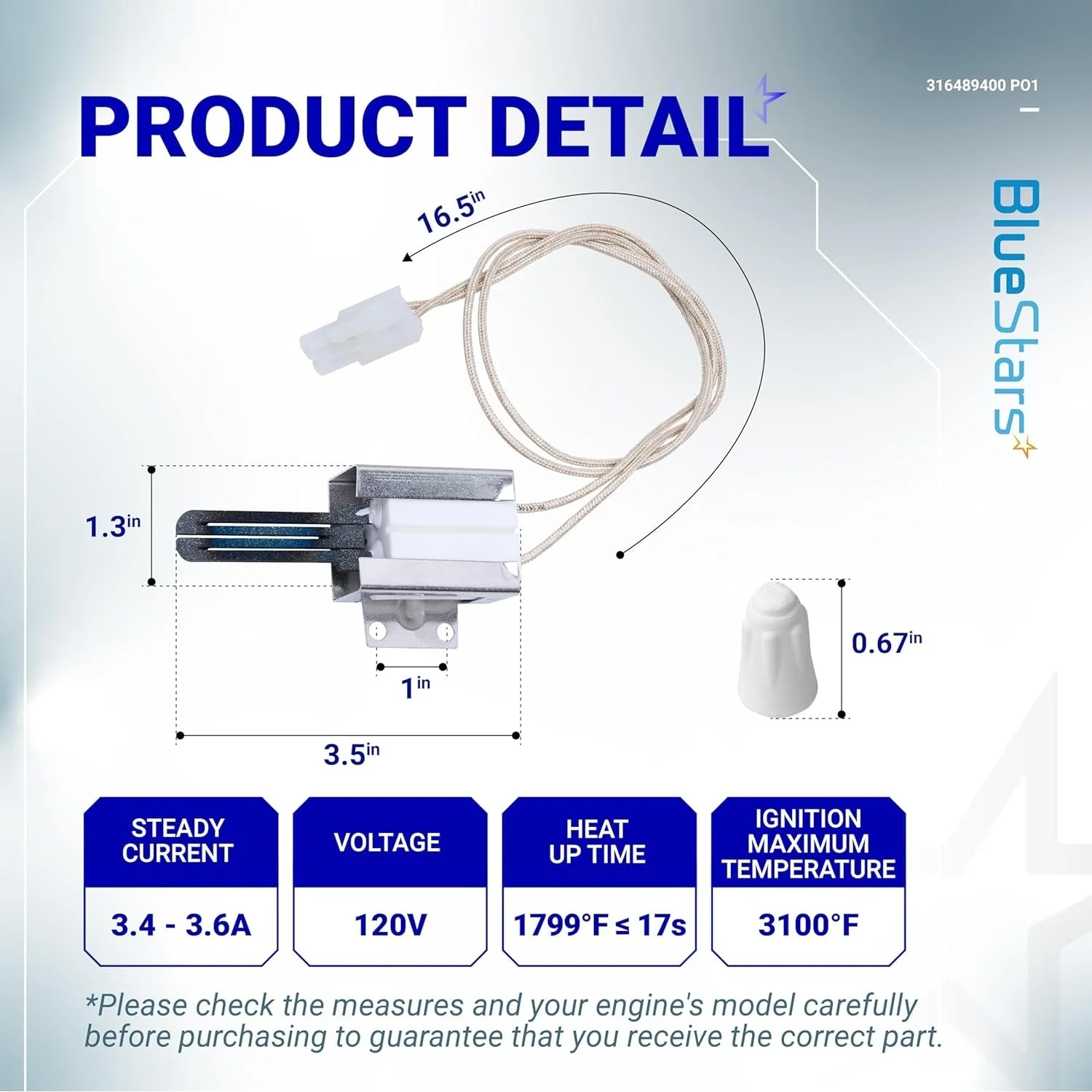

Key Features
- High-temperature silicon carbide heating element designed for rapid and reliable gas ignition.
- Integrated ceramic mounting block for stable positioning within the burner assembly.
- Equipped with a standardized two-pin plastic wiring connector for secure electrical termination.
- Engineered to reach the specific amperage required to safely open the oven gas valve.
- Protective metal cage design to shield the fragile heating element during handling and installation.

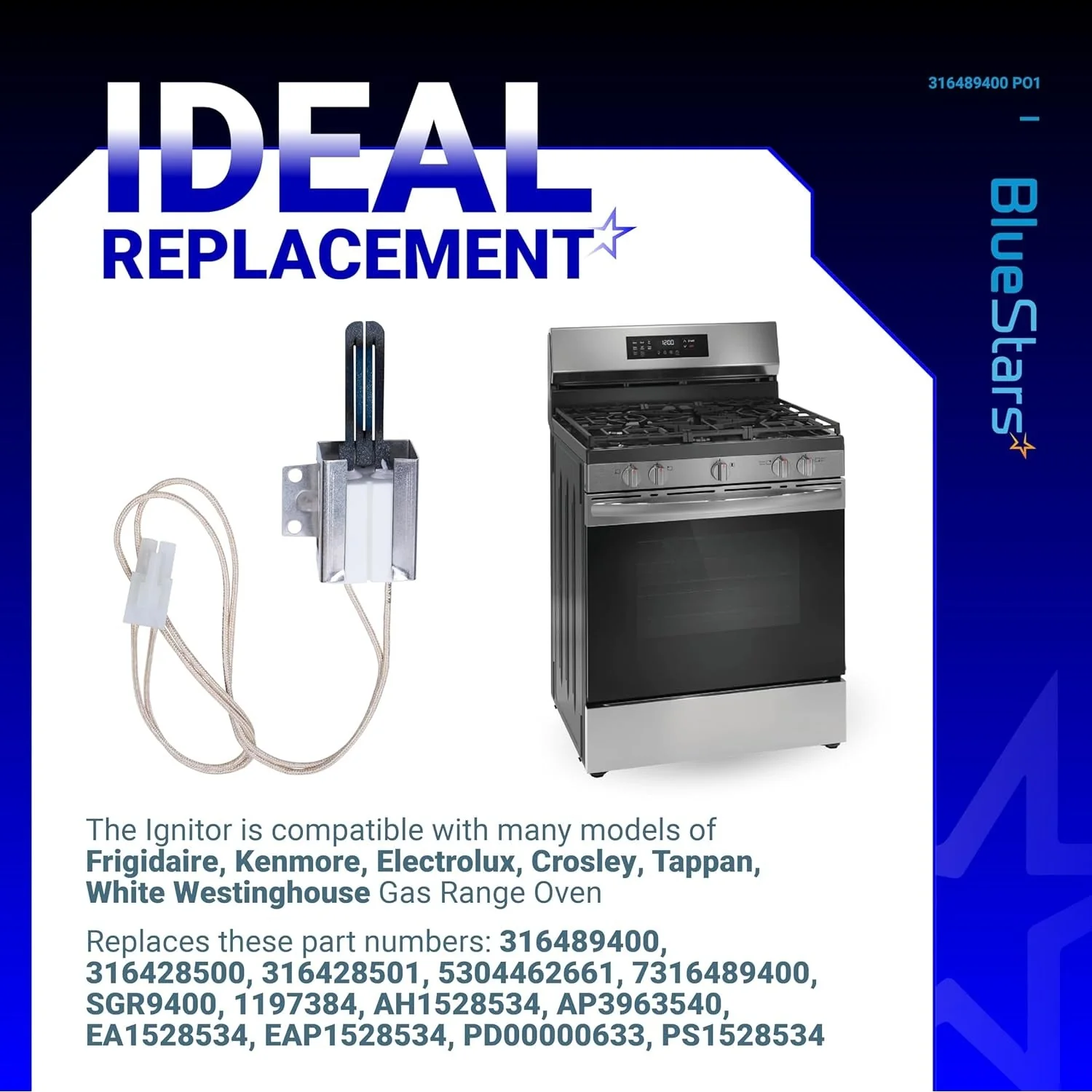

Replaces / Cross-Reference Part Numbers
- AP3963540
- PS1528534
- 316428500
- 316428501
- 5304462661
- 7316489400
- 1197384
- AH1528534
- EAP1528534
- PD00000633

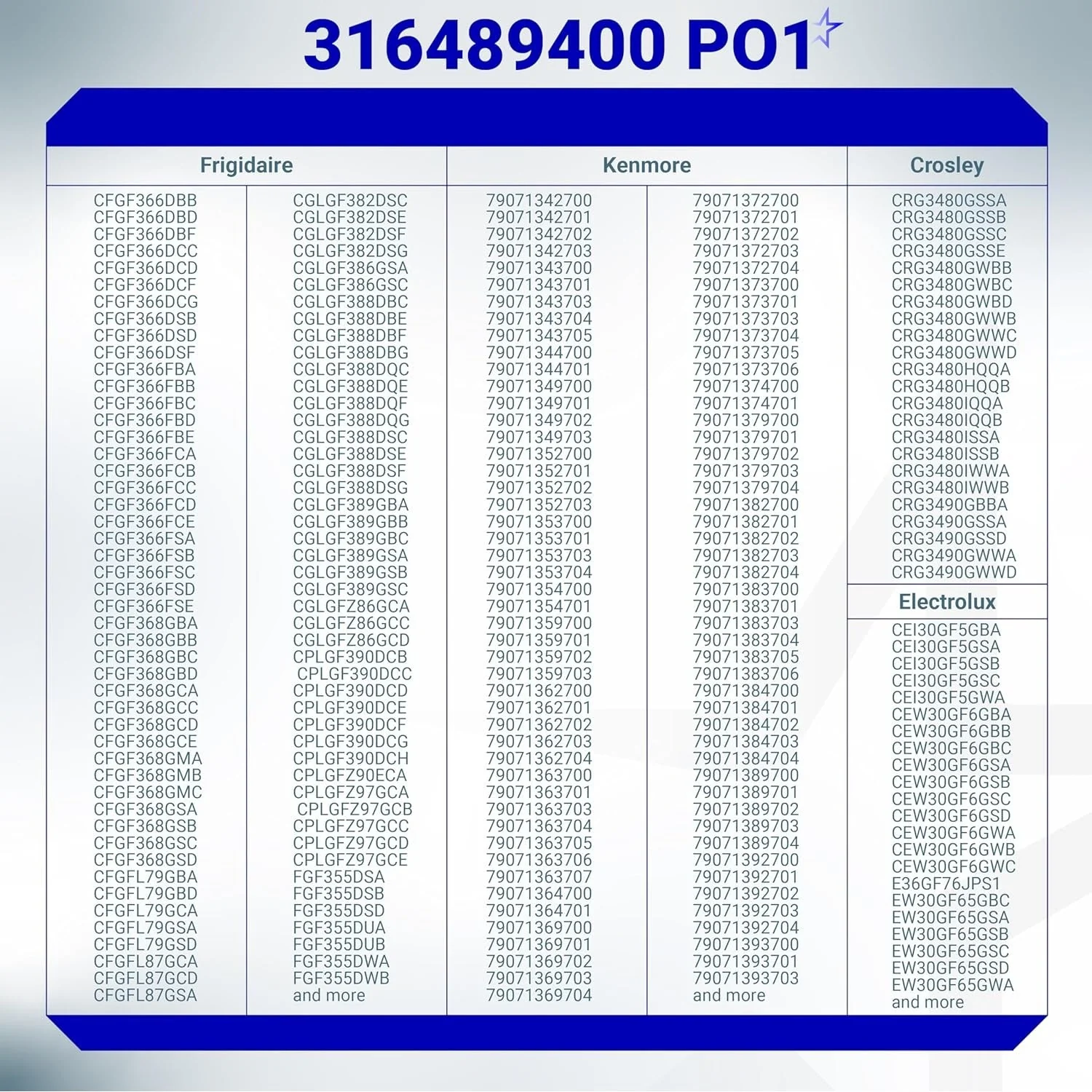

Compatibility & Fitment
- Compatible with Frigidaire, Kenmore, Electrolux, Crosley, Tappan, and White-Westinghouse ranges.
- Fits various freestanding gas ranges, slide-in models, and built-in gas ovens.
- Designed for use in both bake (lower) and broil (upper) burner configurations where specified.

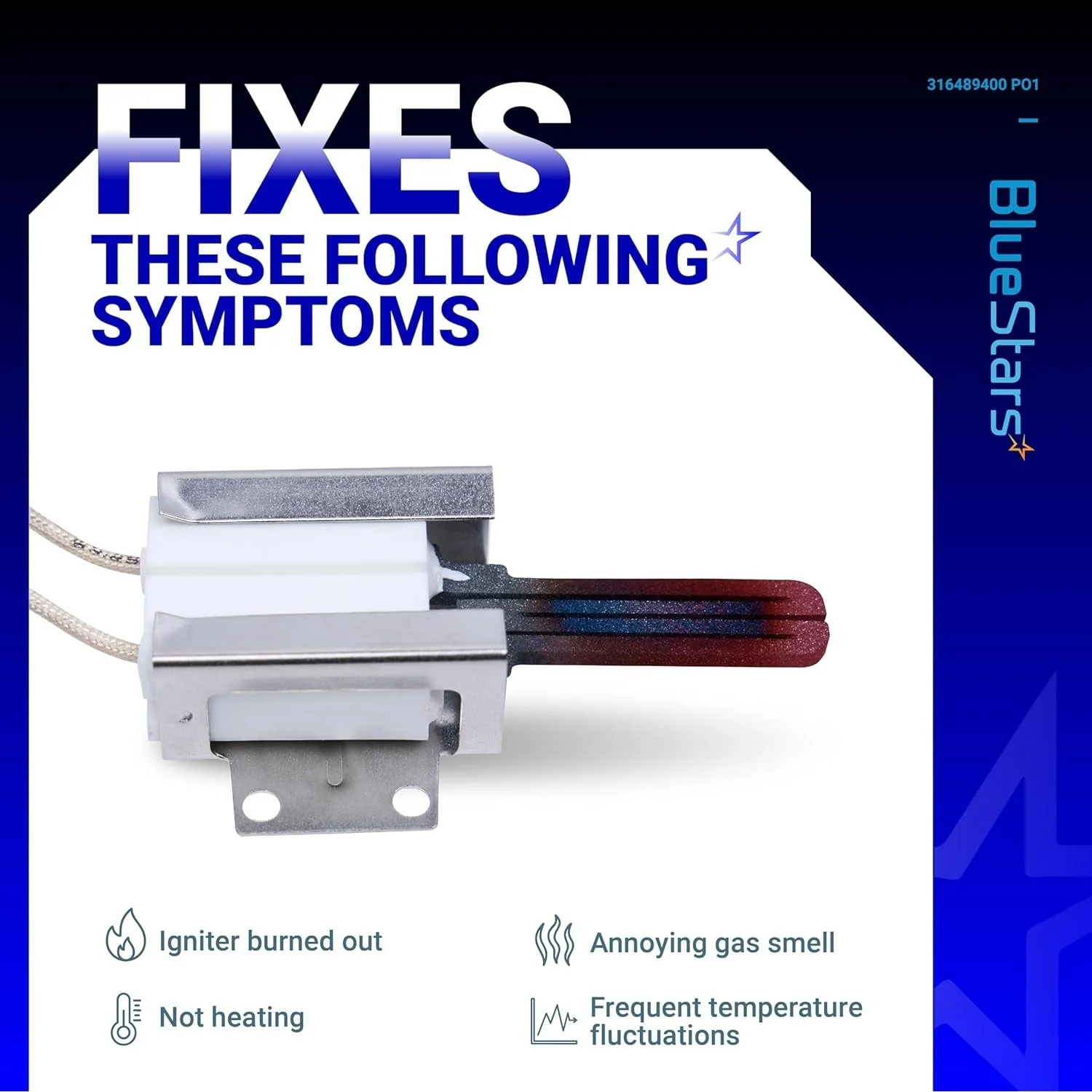

When to Replace
- Oven fails to heat or takes an unusually long time to ignite the gas burner.
- Igniter glows orange but does not get hot enough to trigger the gas valve release.
- Visible cracks, breaks, or white chemical "burn" spots on the dark gray heating element.
- The element does not glow at all when the oven is set to a bake or broil cycle.
- Multimeter testing shows no continuity across the igniter terminals.
Installation Tips
- Disconnect the appliance from the power source and shut off the gas supply before beginning.
- Remove oven racks and the bottom floor panel to access the burner assembly.
- Handle the new igniter only by the ceramic base; do not touch the gray heating element, as skin oils can cause premature failure.
- Unplug the existing wiring harness and remove the mounting screws (typically 1/4 inch hex head).
- Secure the new igniter in the exact same orientation as the original to ensure proper flame travel.
- Reconnect the wiring harness and ensure no wires are touching the burner or metal shielding before reassembling.
$10.73
Original: $30.67
-65%[Lifetime Warranty] 316489400 Range Oven Igniter for Frigidaire Kenmore Electrolux Crosley Range Oven - Replaces 316428500 316428501 5304462661 7316489400 1197384 AP3963540 PS1528534 EAP1528534 and more—
$30.67
$10.73Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
316489400 Range Oven Igniter Replacement
Key Features
- High-temperature silicon carbide heating element designed for rapid and reliable gas ignition.
- Integrated ceramic mounting block for stable positioning within the burner assembly.
- Equipped with a standardized two-pin plastic wiring connector for secure electrical termination.
- Engineered to reach the specific amperage required to safely open the oven gas valve.
- Protective metal cage design to shield the fragile heating element during handling and installation.
Replaces / Cross-Reference Part Numbers
- AP3963540
- PS1528534
- 316428500
- 316428501
- 5304462661
- 7316489400
- 1197384
- AH1528534
- EAP1528534
- PD00000633
Compatibility & Fitment
- Compatible with Frigidaire, Kenmore, Electrolux, Crosley, Tappan, and White-Westinghouse ranges.
- Fits various freestanding gas ranges, slide-in models, and built-in gas ovens.
- Designed for use in both bake (lower) and broil (upper) burner configurations where specified.
When to Replace
- Oven fails to heat or takes an unusually long time to ignite the gas burner.
- Igniter glows orange but does not get hot enough to trigger the gas valve release.
- Visible cracks, breaks, or white chemical "burn" spots on the dark gray heating element.
- The element does not glow at all when the oven is set to a bake or broil cycle.
- Multimeter testing shows no continuity across the igniter terminals.
Installation Tips
- Disconnect the appliance from the power source and shut off the gas supply before beginning.
- Remove oven racks and the bottom floor panel to access the burner assembly.
- Handle the new igniter only by the ceramic base; do not touch the gray heating element, as skin oils can cause premature failure.
- Unplug the existing wiring harness and remove the mounting screws (typically 1/4 inch hex head).
- Secure the new igniter in the exact same orientation as the original to ensure proper flame travel.
- Reconnect the wiring harness and ensure no wires are touching the burner or metal shielding before reassembling.
