[Lifetime Warranty] 1.5" T-Bolt Hose Clamps with Working Range 44mm - 50mm, 304 Stainless Steel - Compatible with Automotive, Industrial, Marine, Household, Exhaust system, Turbo Intake, Intercooler Pipe - Pack of 2

1.5" T-Bolt Hose Clamps with Working Range 44mm - 50mm, 304 Stainless Steel - Compatible with Automotive, Industrial, Marine, Household, Exhaust system, Turbo Intake, Intercooler Pipe - Pack of 2

Key Features

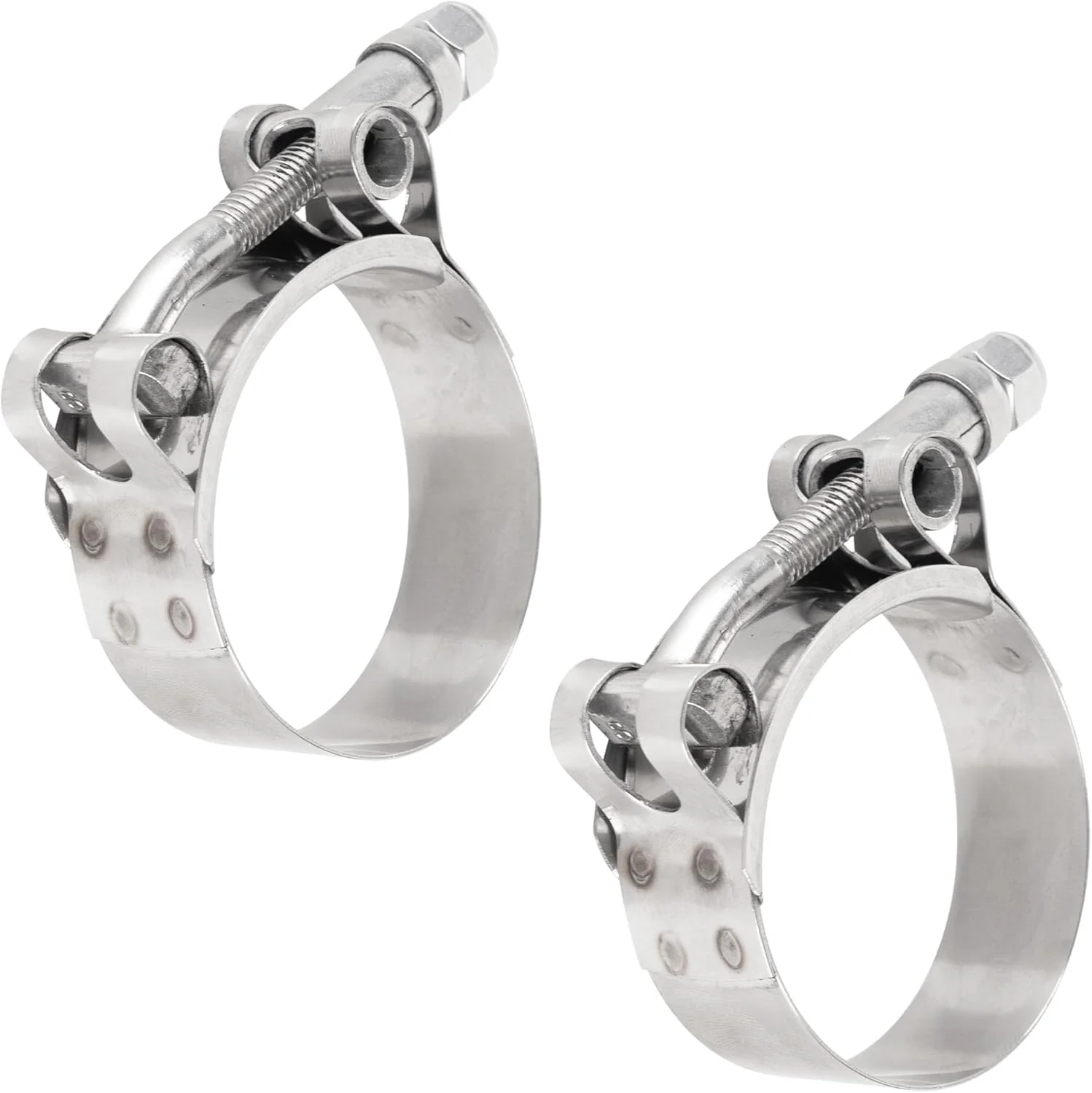

• Package Quantity: 2 clamps

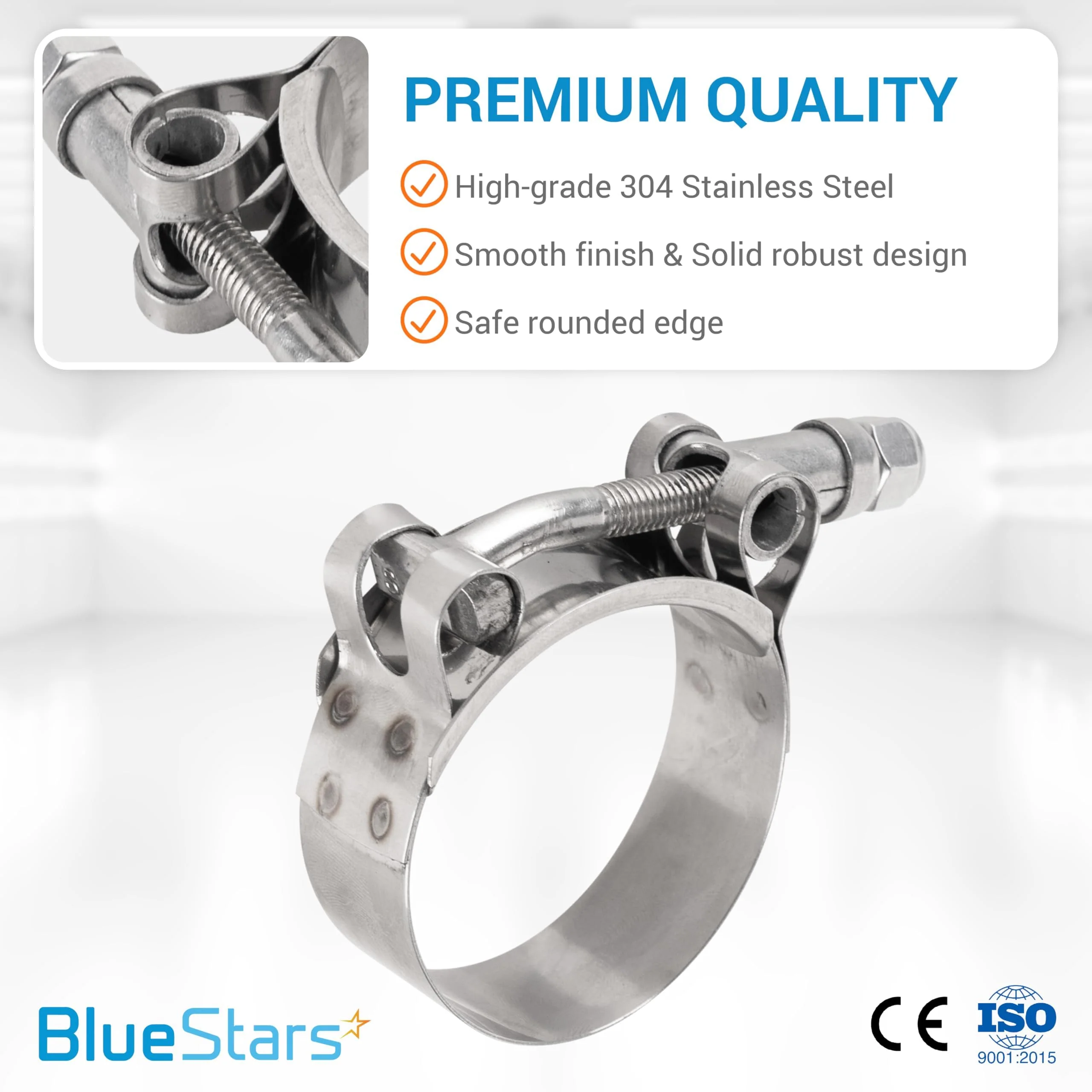

• Material: 304 stainless steel band, bridge, and housing
• Fastener: Plated steel T-bolt and nylon insert locknut
• Nominal Size: 1.5 inches (38mm)

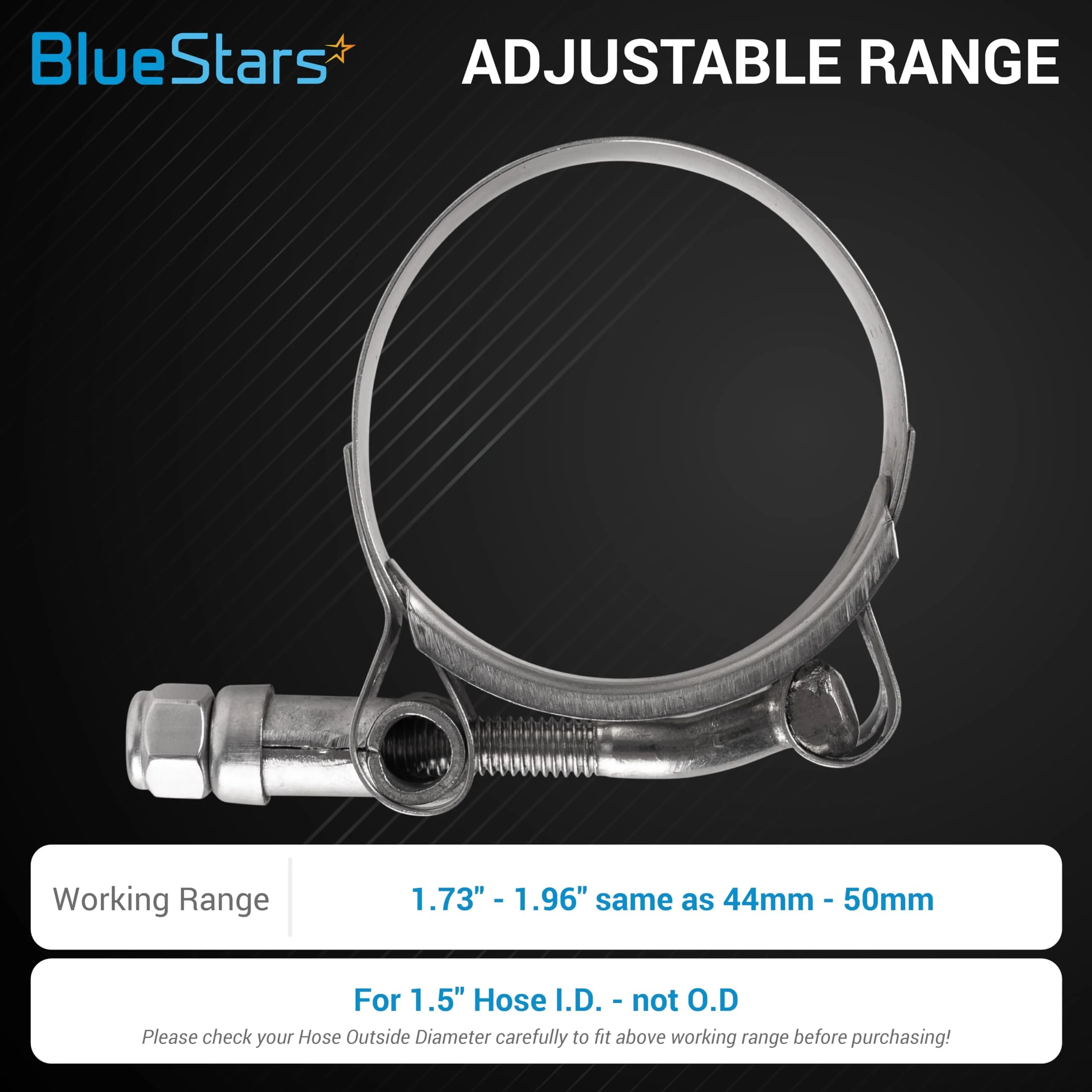

• Effective Diameter Range: 44mm - 50mm (1.73" - 1.97")
• Band Width: 19mm (0.75")
• Band Thickness: 0.8mm

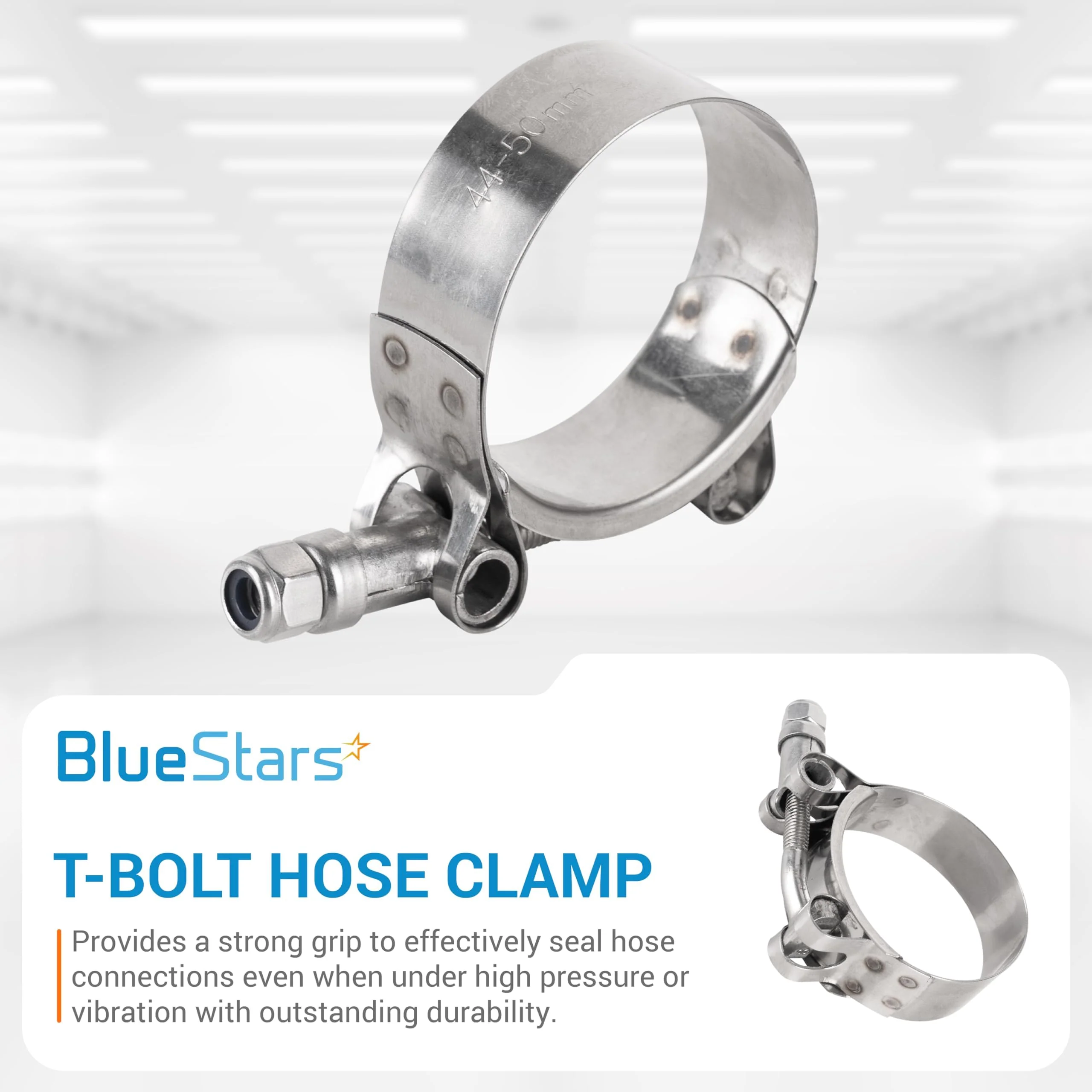

• Design: Floating bridge and rolled band edges prevent hose damage during installation and use
• Application: Provides uniform sealing pressure for high-pressure fluid and air connections

Replaces / Cross-Reference Part Numbers

• This is a universal fit component specified by its dimensions, not a direct OEM replacement part.
• Can replace any clamp within the 44mm to 50mm size range, including worm-gear and standard T-bolt styles.
• For reference, may be comparable to parts designated as SAE J1508 Type TB or similar industrial clamp standards.

Compatibility & Fitment

• Fits hoses and pipes with an outer diameter between 44mm and 50mm.
• Commonly used for 1.5" inner diameter silicone or rubber hoses in forced induction systems.
• Verify the outer diameter of your hose assembly before ordering to ensure correct fitment.
• Suitable Applications:
  • Automotive: Turbocharger charge pipes, intercoolers, coolant lines, and exhaust systems.
  • Industrial: Hydraulic lines, material transfer hoses, and high-pressure ducting.
  • Marine: Engine coolant, exhaust, and plumbing connections.
  • Household: High-pressure plumbing, pool and spa lines.

When to Replace

• Existing clamp shows visible signs of rust or corrosion.
• Bolt or nut threads are stripped, preventing proper tightening.
• The clamp band is cracked, bent, or permanently deformed.
• Leakage of fluid or air is present at the hose connection.
• The clamp fails to maintain consistent sealing pressure after being torqued.

Installation Tips

• Clean the hose and pipe surfaces before installation to ensure a clean seal.
• Slide the clamp over the hose and position it behind the bead of the pipe fitting.
• Ensure the floating bridge is correctly aligned over the gap in the band.
• Tighten the nut with a socket or wrench. Do not overtighten.
• After initial installation and several heat cycles, check the nut for proper tightness as materials can compress and settle.
